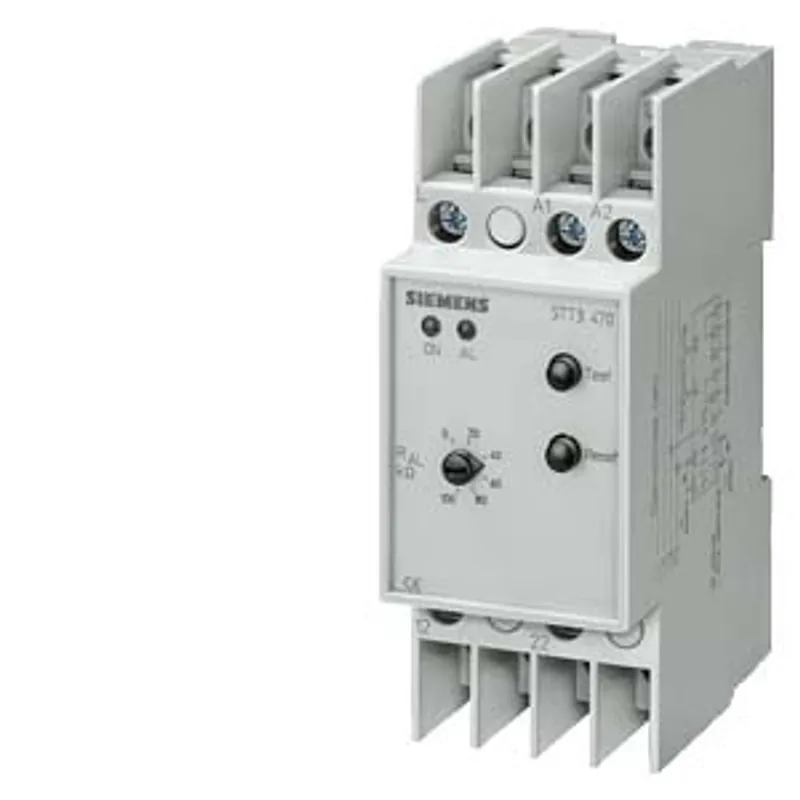

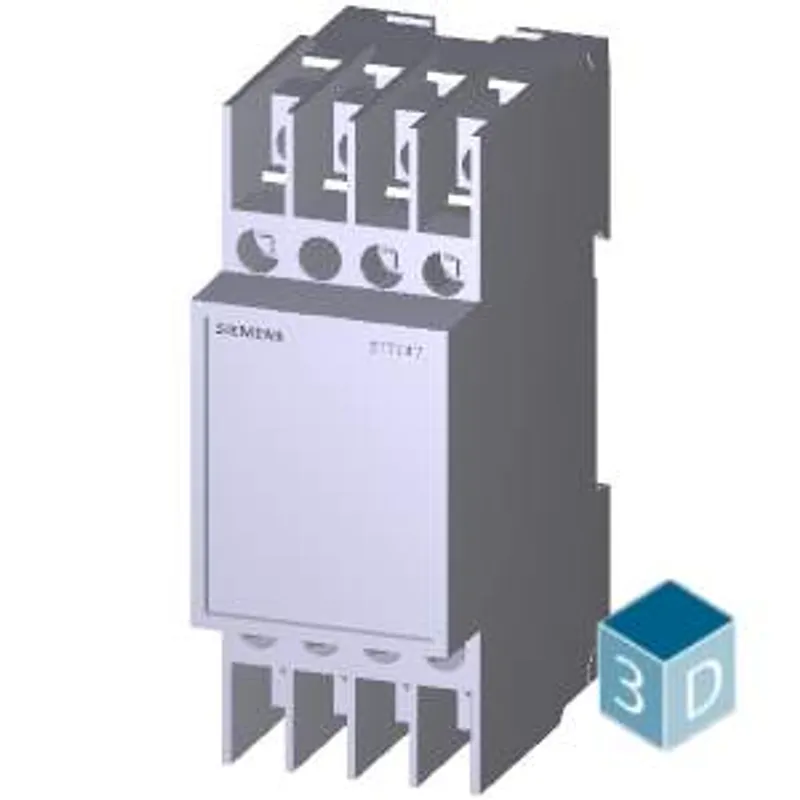

Siemens 5TT3470

ISO monitor industry for alternating voltage networks for measuring voltages up to 500 V AC

MPN
5TT3470
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5TT3470?

ISO monitor industry for alternating voltage networks for measuring voltages up to 500 V AC

Specifications

Model

product brand nameSENTRON
product designationInsulation monitor industry
design of the productFor AC systems
type of acoustic signalfor a mixed systems
type of voltage of the operating voltage for actuationAC

Supply voltage

operating voltage rated value — minimum0 V
operating voltage rated value — maximum500 V

Main circuit

operating frequency rated value — minimum10 Hz
operating frequency rated value — maximum1 000 Hz

Control current

control supply voltage — at AC at 50 Hz rated value minimum220 V
control supply voltage — at AC at 50 Hz rated value maximum240 V
control supply voltage — at AC at 60 Hz rated value minimum220 V
control supply voltage — at AC at 60 Hz rated value maximum240 V

Auxiliary circuit

number of CO contacts for auxiliary contacts2
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0

Adjustable parameters

adjustable response value impedance — 1 initial value5 kΩ
adjustable response value impedance — 1 full-scale value100 kΩ

Product details

product component insulation value displayNo

Product function

product function error memoryYes

Connections

product component removable terminal for auxiliary and control circuitNo
type of electrical connectionscrew terminal
type of electrical connection — plug-in socketNo

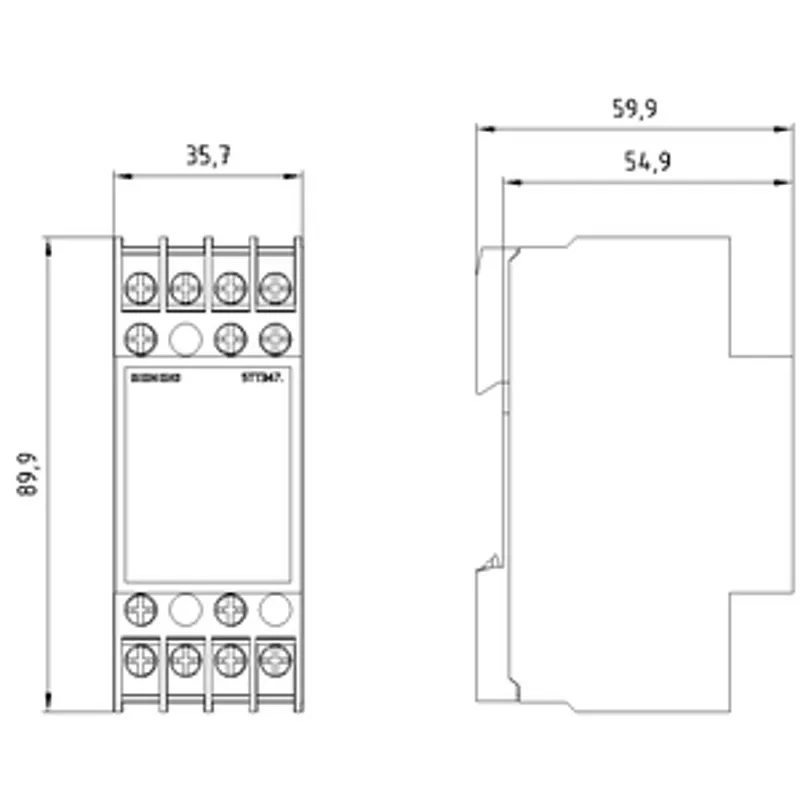

Mechanical Design

height90 mm
width36 mm
depth64 mm
Net Weight179 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5TT3470: frequently asked questions

When can 5TT3470 be shipped?

5TT3470 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5TT3470 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5TT3470 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TT3470, subject to availability and destination.
