Siemens 5TG2484
DELTA device insert Antenna through-type/end box also for broadband
- MPN
- 5TG2484
- Category
- Inserts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

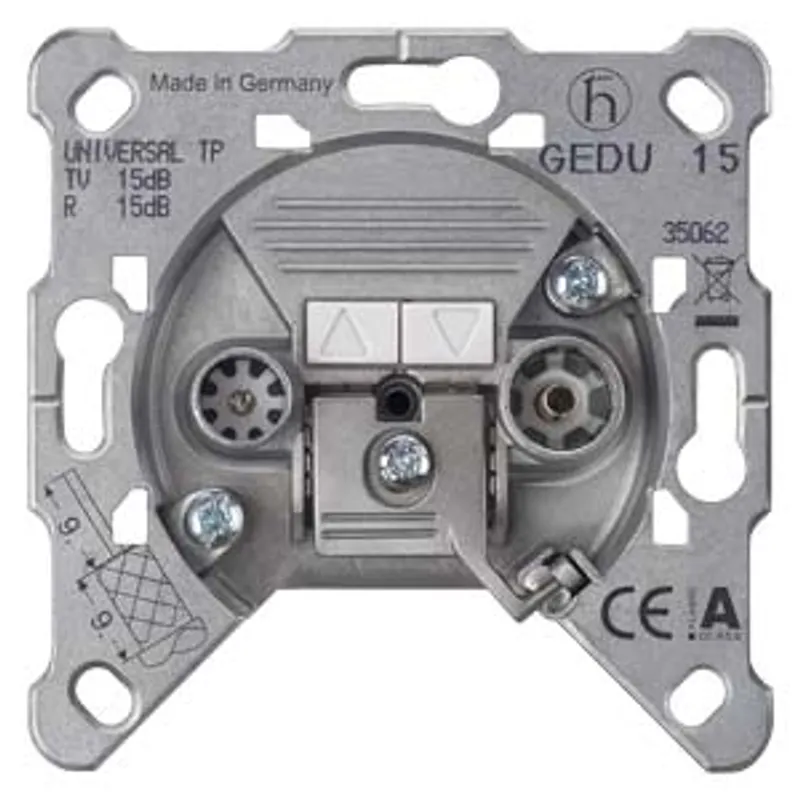

What is the Siemens 5TG2484?
DELTA device insert Antenna through-type/end box also for broadband
Specifications
Model
| product brand name | DELTA |
| product designation | Insert |
| design of the product | Aerial through-way boxes/terminal boxes |
| type of antenna outlet | feed-through socket |
General technical data
| coupling attenuation at 2150 MHz | 15 dB |
| coupling attenuation at 860 MHz | 15 dB |
| transmission loss at 2150 MHz | 1.5 dB |
| transmission loss at 860 MHz | 1.5 dB |
| protection class IP | IP00 |
Main circuit
| operating frequency rated value — minimum | 2 400 MHz |
| operating frequency rated value — maximum | 2 400 MHz |
Suitability
| suitability for interaction cable modem | No |
Product details
| product component cover | No |
Product function
| product function remote supply | No |
Number
| number of electrical connections | 2 |

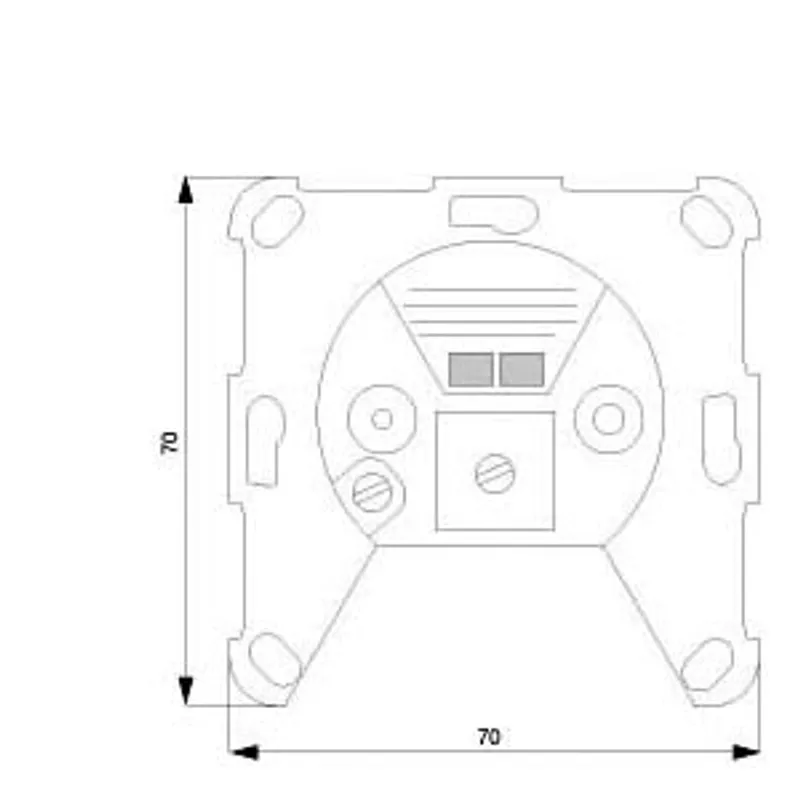

Mechanical Design
| height | 70 mm |
| width | 70 mm |
| Net Weight | 119 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
5TG2484: frequently asked questions
When can 5TG2484 be shipped?
5TG2484 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5TG2484 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5TG2484 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TG2484, subject to availability and destination.
