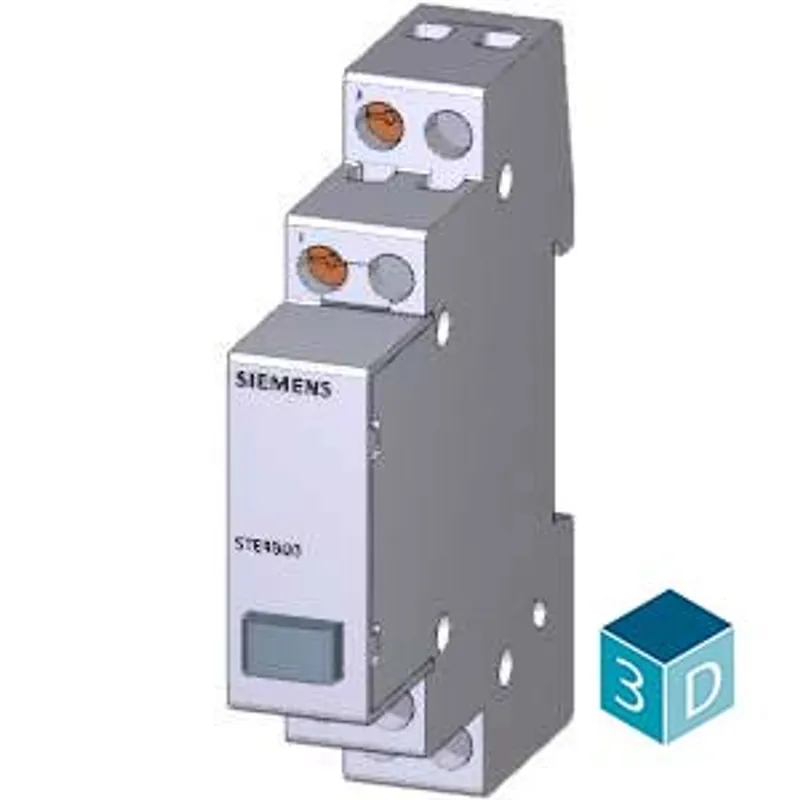

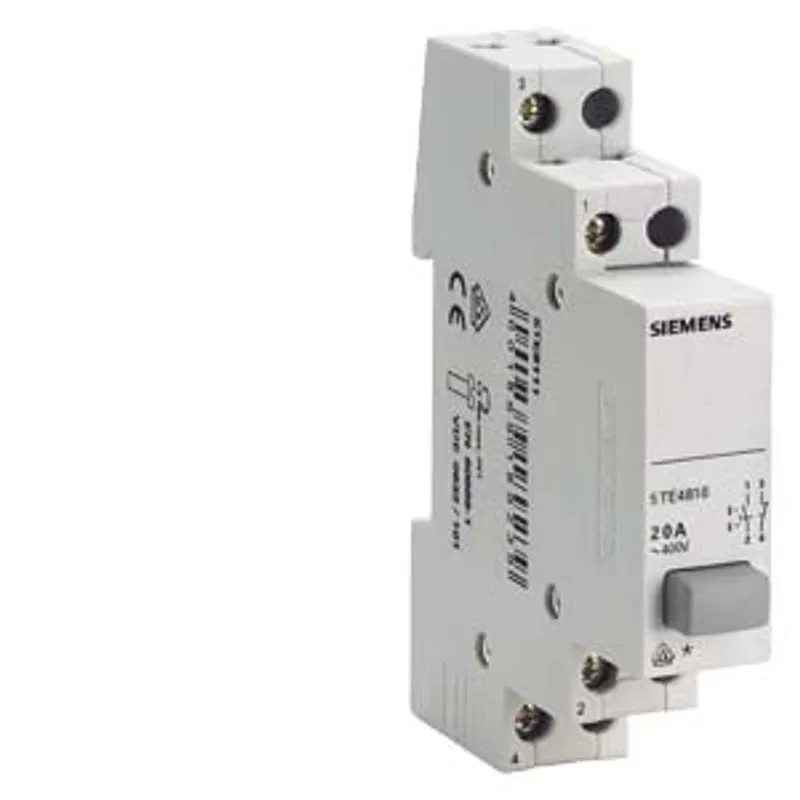

Siemens 5TE4812
Button, 3 NO+N 20 A 1 key gray
- MPN
- 5TE4812
- Category
- SENTRON 5TE4 Pushbuttons
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 5TE4812?
button, 3 NO+N 20 A 1 key gray
Specifications
Model
| product brand name | SENTRON |
| product designation | Pushbutton |
| design of the product | 3 NO contacts and 1 N-conductor |
| type of light source | LED |
| socket design for light source | others |
| mechanical service life (operating cycles) typical | 25 000 |
| type of voltage of the operating voltage | AC |
| surge voltage resistance rated value | 4 kV |
Supply voltage
| operating voltage rated value | 400 V |
Protection class
| protection class IP | IP20 |
| making capacity current | 60 A |
| current breaking capacity | 60 A |
Dissipation
| power loss [W] — for rated value of the current at AC in hot operating state per pole | 0.6 W |
| power loss [W] — maximum | 0.6 W |
Appearance
| color — of the button | grey |
Product details
| product component signal lamp | No |
| number of NC contacts | 0 |
| number of NO contacts | 4 |
| number of CO contacts | 0 |
Display and operation
| number of keys | 1 |
| connectable conductor cross-section for flexible conductor with core end processing — minimum | 1 mm² |
| connectable conductor cross-section for flexible conductor with core end processing — maximum | 6 mm² |
| connectable conductor cross-section for rigid conductor — minimum | 1 mm² |
| connectable conductor cross-section for rigid conductor — maximum | 6 mm² |
| tightening torque with screw-type terminals — minimum | 0.8 N·m |
| tightening torque with screw-type terminals — maximum | 1 N·m |

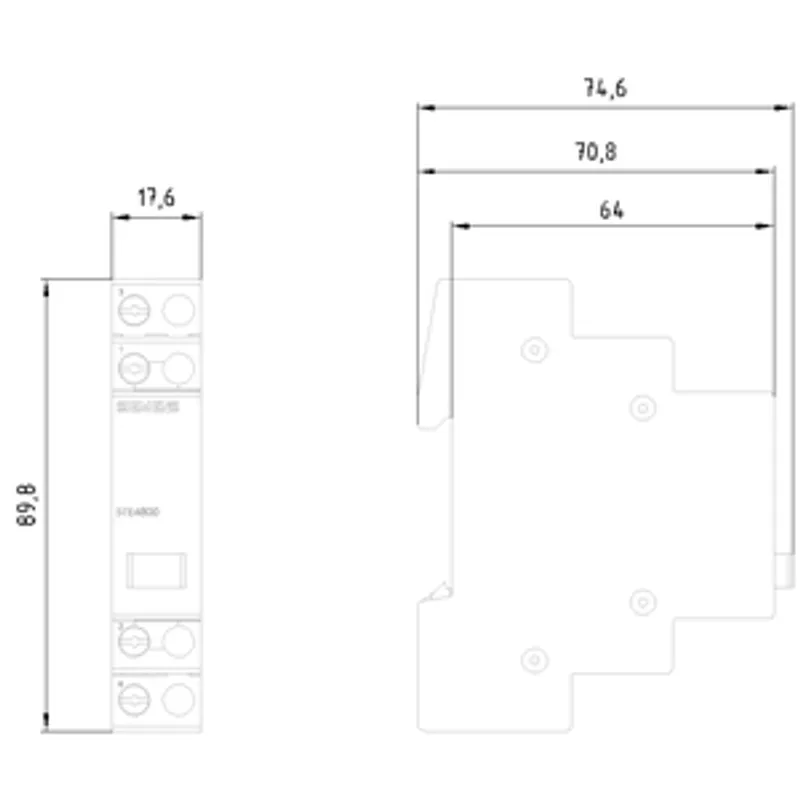

Mechanical Design
| height | 90 mm |
| depth | 70 mm |
| installation depth | 70 mm |
| number of modular width units | 1 |
| Net Weight | 92 g |
| ambient temperature during operation — minimum | -5 °C |
| ambient temperature during operation — maximum | 40 °C |
