Siemens 5TE2515-1

SENTRON 5TE DC Isolator

MPN
5TE2515-1
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5TE2515-1?

DC isolators 1000 V DC, 63A

Specifications

Model

product brand nameSENTRON
product designationOn-off switch
design of the actuating elementtoggle handle
type of the driving mechanism motor driveNo

General technical data

number of poles4
type of devicefixed mounting

Protection class

protection class IPIP20

Main circuit

operational current rated value63 A

Auxiliary circuit

number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts4

Suitability

suitability for integration distribution boardYes
suitability for use main switchNo
suitability for use switch disconnectorYes
suitability for use EMERGENCY OFF switchNo
suitability for use maintenance/repair switchNo

Product details

product feature interlockNo
product extension optional motor driveYes
product extension optional voltage triggerYes

Connections

type of electrical connection for main current circuitscrew-type terminals

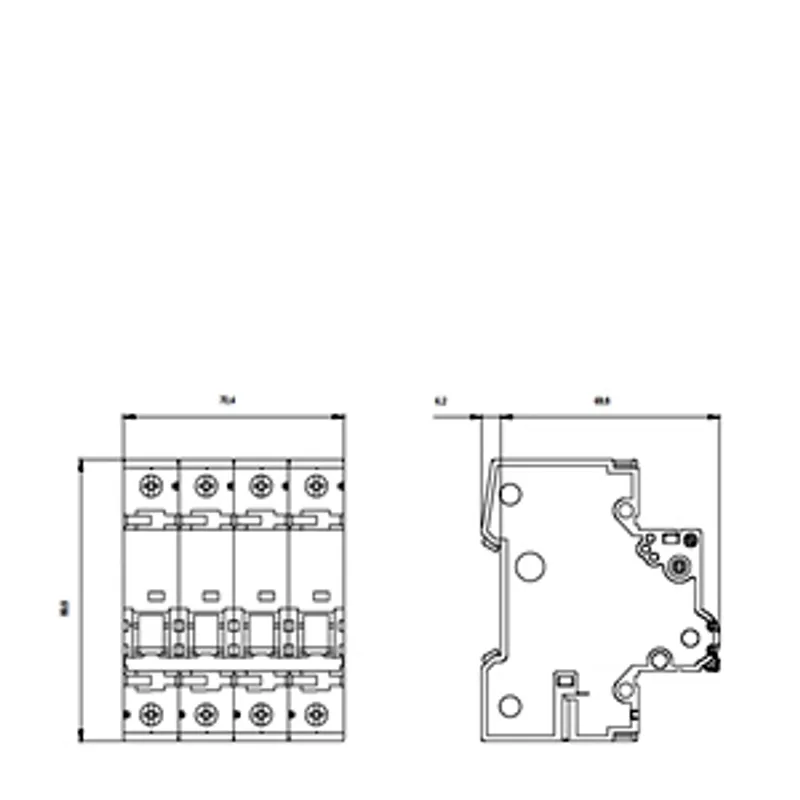

Mechanical Design

height90 mm
depth70 mm
fastening methodDIN rail
Net Weight645 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5TE2515-1: frequently asked questions

When can 5TE2515-1 be shipped?

5TE2515-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5TE2515-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5TE2515-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TE2515-1, subject to availability and destination.
