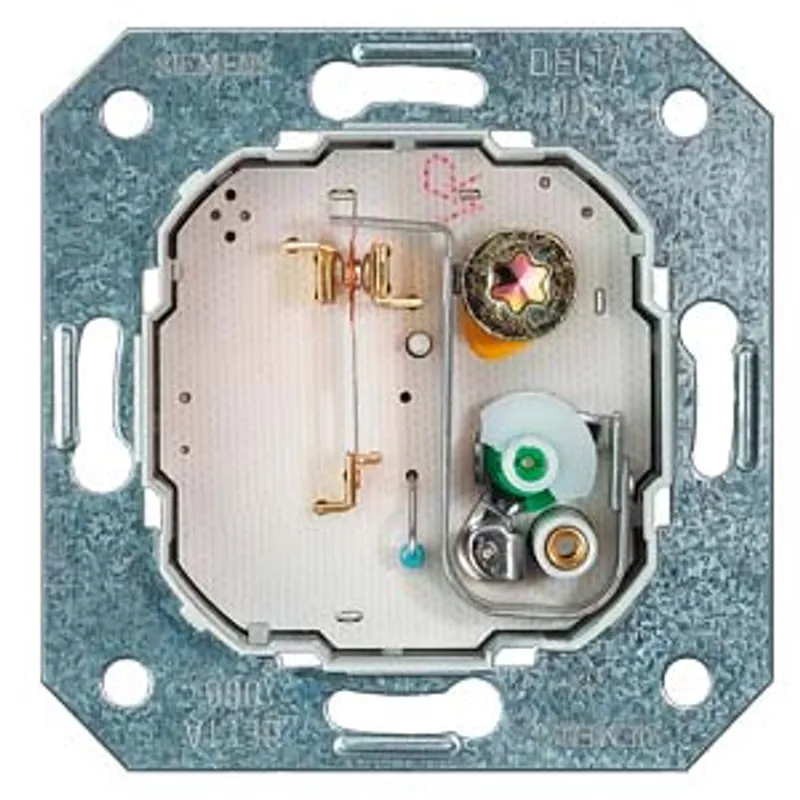

Siemens 5TC9201
Room temperature controller Device insert change-over contact
- MPN
- 5TC9201
- Category
- Inserts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 5TC9201?
Room temperature controller Device insert change-over contact
Specifications
Model
| product brand name | DELTA |
| design of the switching function | 1 CO contact |
| type of composition | Basic elements |
| design of the room temperature controller | Room temperature controller |
| design of the control unit electronic | No |
| design of the sensor connectable | Room sensor |
General technical data
| adjustable apparent power | 10 V·A |
| switching difference of the temperature | 0.5 K |
| current rated value | 10 A |
Supply voltage
| operating voltage rated value | 230 V |
Protection class
| protection class IP | IP30 |
Adjustable parameters
| adjustable temperature — initial value | 5 °C |
| adjustable temperature — full-scale value | 30 °C |
Appearance
| color | miscellaneous |
Product details
| product component — actual temperature indication | No |
| product component — switch | No |
| product component — switch for supplementary heating | No |
| product component — switch/signal lamp for night reduction | No |
Product function
| product function — temperature reduction | No |
| product function — thermal feedback | Yes |

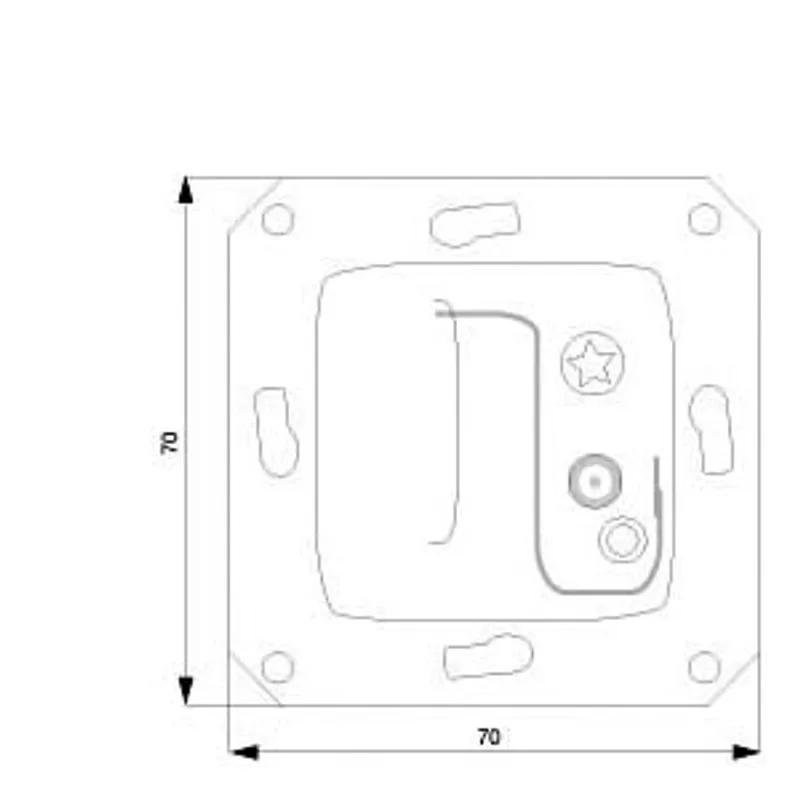

Mechanical Design
| height | 70 mm |
| width | 70 mm |
| Net Weight | 76 g |
