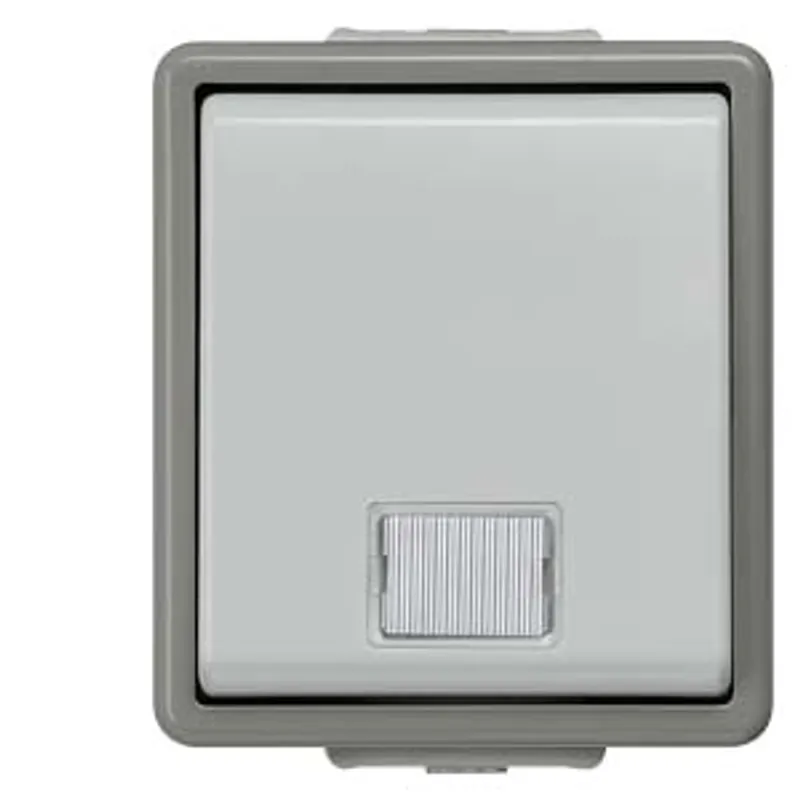

Siemens 5TA4710
DELTA fläche IP44, AP Dark gray/light gray Control switch switchover 10A 250V, 66x 75 mm
- MPN
- 5TA4710
- Category
- Switches and Pushbuttons
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 5TA4710?
DELTA fläche IP44, AP Dark gray/light gray Control switch switchover 10A 250V, 66x 75 mm
Specifications
Model
| product brand name | DELTA |
| type of installation switch rotary switch | No |
| type of light source | Control switch |
| type of composition | basic element with complete enclosure |
| design of the actuating element | rocker/button |
General technical data
| type of switch | toggle switch |
| mounting type | surface mounting |
| surface processing | others |
| material | others |
Supply voltage
| operating voltage rated value | 250 V |
Protection class
| protection class IP | IP44 |
Breaking Capacity
| switching capacity current | 10 A |
Main circuit
| operational current rated value | 10 A |
Appearance
| appearance | shiny |
| color | grey |
Product details
| product component — labeling field | No |
| product component — signaling contact | No |
| product component — pushbutton switch | No |
| product feature halogen-free | Yes |
Number
| number of actuating rockers | 1 |
Connections
| type of electrical connection | Plug-in terminal |

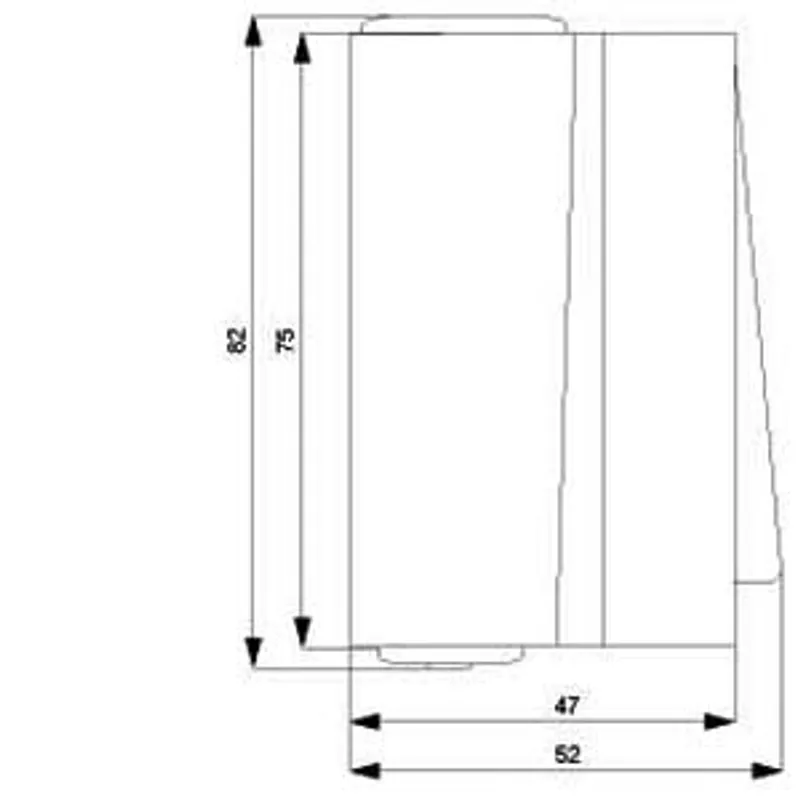

Mechanical Design
| height | 82 mm |
| depth | 47 mm |
| fastening method | screw mounting |
| Net Weight | 111 g |
| material of the enclosure | plastic |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
5TA4710: frequently asked questions
When can 5TA4710 be shipped?
5TA4710 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5TA4710 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5TA4710 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TA4710, subject to availability and destination.
