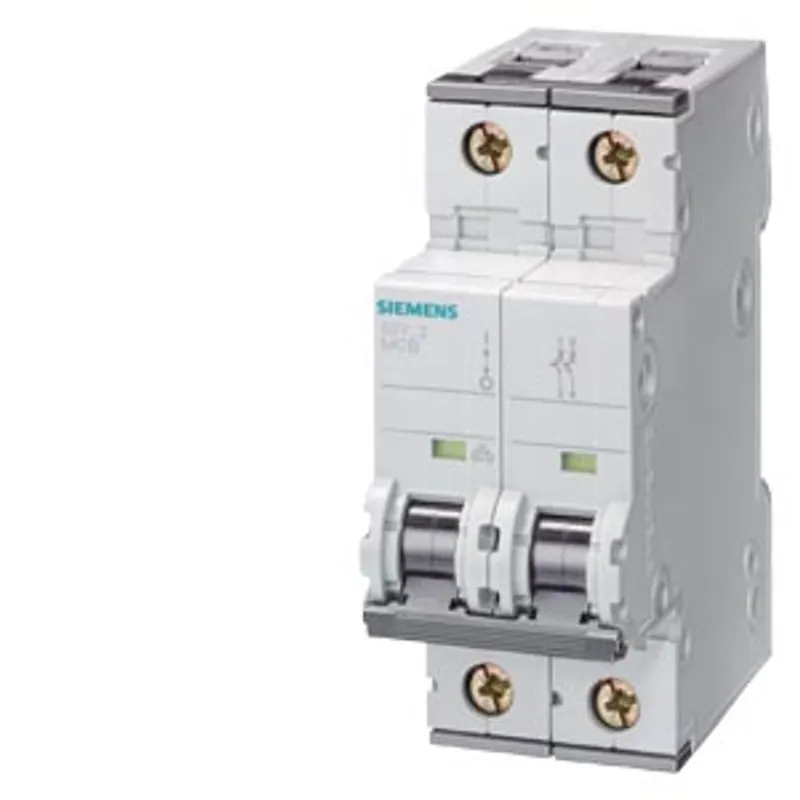

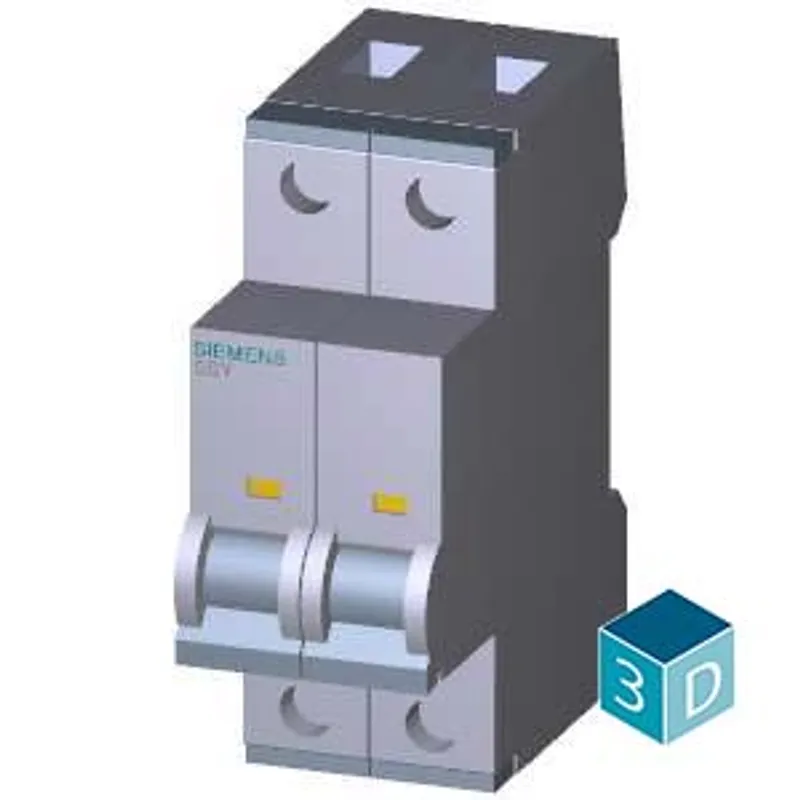

Siemens 5SY8504-7

Miniature circuit breaker 230 V D=70 mm 25 kA according to EN 60947-2, 1P+N, C4

MPN
5SY8504-7
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

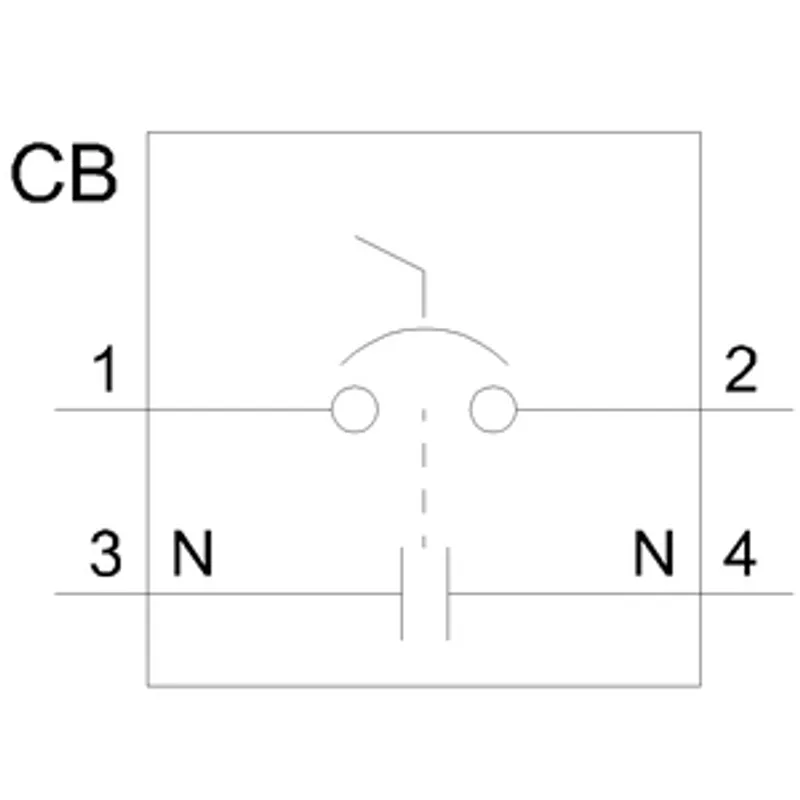

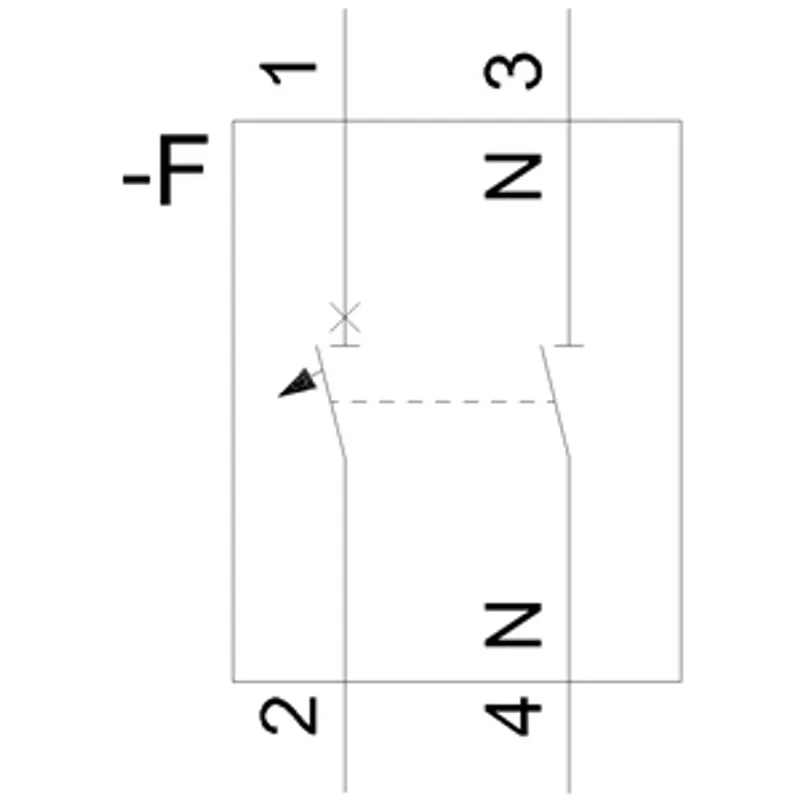

What is the Siemens 5SY8504-7?

Miniature circuit breaker 230 V D=70 mm 25 kA according to EN 60947-2, 1P+N, C4

Specifications

Model

product brand nameSENTRON
product designationMiniature circuit breaker

General technical data

number of poles2
design of pole1P+N
tripping characteristic classC
mechanical service life (operating cycles) typical10 000
overvoltage category3
degree of pollution3

Voltage

type of voltage of the operating voltageAC
insulation voltage (Ui) – with single-phase operation at AC rated value250 V
supply voltage with single-phase operation at AC rated value230 V
operational current – — at 50 °C rated value3.88 A
operational current – — at 55 °C rated value3.75 A
operational current – operational current at AC rated value4 A

Supply voltage

supply voltage – at AC230 V
supply voltage – at DC rated value60 V
value range of the supply voltage frequency50/60 Hz
operating voltage at DC rated value maximum72 V

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

switching capacity current – at DC according to IEC 60947-2 rated value15 kA
switching capacity current – according to IEC 60947-2 rated value50 kA

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole1.3 W
suitability for operationInfrastructure / Industry

Product details

product feature touch protectionYes
product component – combined terminal topYes
product component – combined terminal bottomYes
product component – neutral conductor switchingYes
product feature properties for main switches in accordance with EN 60204-1Yes
product feature halogen-freeYes
product feature sealableYes
product feature silicon-freeYes
product extension installable supplementary devicesYes

Product function

set values setting current (Ii) for I-tripping7,5
reference value setting current (Ii) for I-trippingx In

Short circuit

short-circuit current breaking capacity (Icn) – at AC according to UL 1077 and CSA C22.2 No.2355 kA

Connections

connectable conductor cross-section solid – minimum0.75 mm²
connectable conductor cross-section solid – maximum35 mm²
connectable conductor cross-section stranded – minimum0.75 mm²
connectable conductor cross-section stranded – maximum35 mm²
connectable conductor cross-section finely stranded with core end processing – minimum0.75 mm²
connectable conductor cross-section finely stranded with core end processing – maximum25 mm²
AWG number as coded connectable conductor cross section – minimum18
AWG number as coded connectable conductor cross section – maximum4
tightening torque [lbf·in] with screw-type terminals – minimum22 lbf·in
tightening torque [lbf·in] with screw-type terminals – maximum31 lbf·in
tightening torque with screw-type terminals – minimum2.5 N·m
tightening torque with screw-type terminals – maximum3.5 N·m
position of power supply cordAny

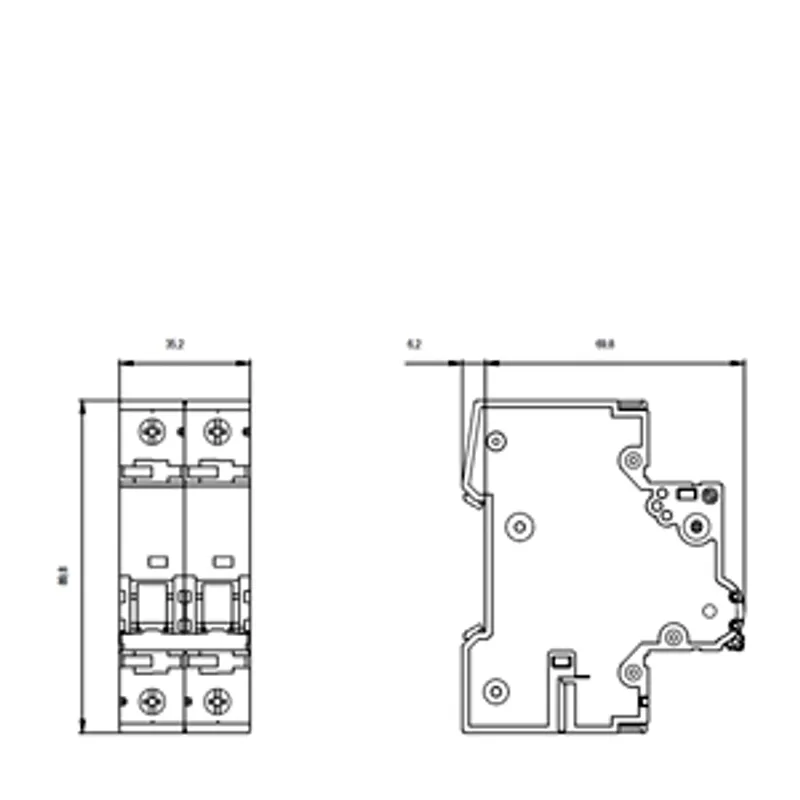

Mechanical Design

height90 mm
width36 mm
depth76 mm
installation depth70 mm
number of modular width units2
fastening methodDIN rail
mounting positionany
Net Weight314 g

Environmental conditions

influence of the surrounding temperaturemax. 95% RH up to 55°C
standardIEC / EN 60947-2 / UL1077
vibration resistance according to IEC 60068-2-6±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz
ambient temperature during operation – minimum-25 °C
ambient temperature during operation – maximum55 °C
ambient temperature during storage – minimum-40 °C
ambient temperature during storage – maximum75 °C
number of test cycles for environmental testing according to IEC 60068-2-306
