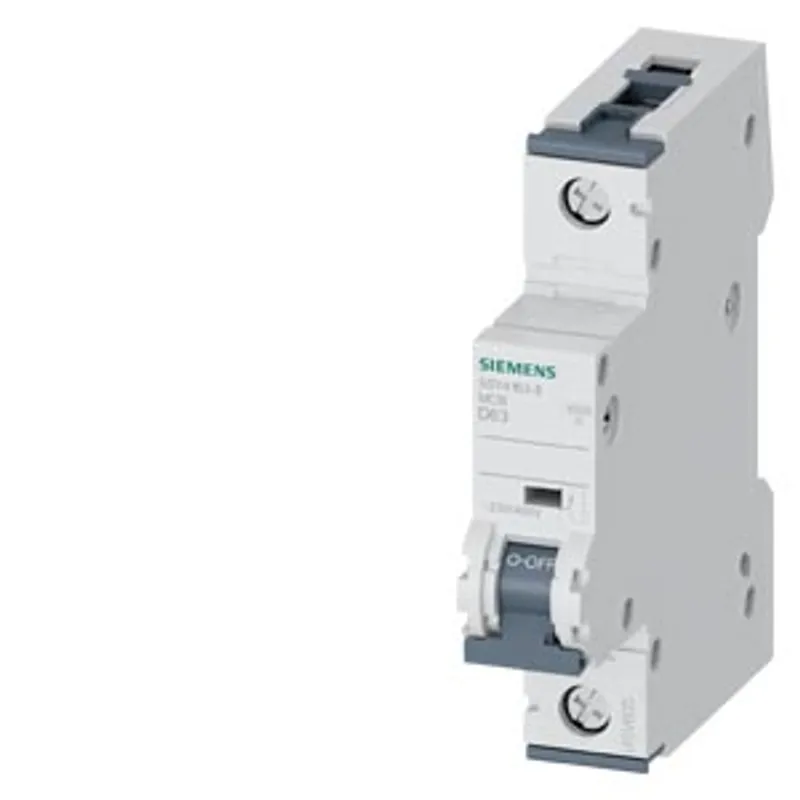

Siemens 5SY4163-8

Miniature circuit breaker 230/400 V 10kA, 1-pole, D, 63 A, D=70 mm

MPN
5SY4163-8
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SY4163-8?

Miniature circuit breaker 230/400 V 10kA, 1-pole, D, 63 A, D=70 mm

Specifications

Model

product brand nameSENTRON
product designationMiniature circuit breaker

General technical data

number of poles1
design of pole1P
tripping characteristic classD
mechanical service life (operating cycles) typical10 000
overvoltage category3
degree of pollution3

Voltage

type of voltage of the operating voltageAC
insulation voltage (Ui) — with single-phase operation at AC rated value440 V
insulation voltage (Ui) — with multi-phase operation at AC rated value440 V
supply voltage with single-phase operation at AC rated value230 V
operational current — at 40 °C rated value59.16 A
operational current — at 50 °C rated value55.06 A
operational current — at 55 °C rated value52.92 A
operational current — at 60 °C rated value50.65 A
operational current at AC rated value63 A

Supply voltage

supply voltage — at AC400 V
supply voltage — at DC rated value60 V
value range of the supply voltage frequency50/60 Hz
operating voltage at DC rated value maximum72 V

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

switching capacity current — at DC according to IEC 60947-2 rated value15 kA
switching capacity current — according to EN 60898 rated value10 kA
switching capacity current — according to IEC 60947-2 rated value15 kA

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole5 W
suitability for operationInfrastructure / Industry

Product details

product feature touch protectionYes
product component — combined terminal topYes
product component — combined terminal bottomYes
product component — neutral conductor switchingNo
product feature properties for main switches in accordance with EN 60204-1Yes
product feature halogen-freeYes
product feature sealableYes
product feature silicon-freeYes
product extension installable supplementary devicesYes

Product function

set values setting current (Ii) for I-tripping12,5
reference value setting current (Ii) for I-trippingx In

Short circuit

short-circuit current breaking capacity (Icn) — at AC according to UL 1077 and CSA C22.2 No.2355 kA

Connections

connectable conductor cross-section solid — minimum0.75 mm²
connectable conductor cross-section solid — maximum35 mm²
connectable conductor cross-section stranded — minimum0.75 mm²
connectable conductor cross-section stranded — maximum35 mm²
connectable conductor cross-section finely stranded with core end processing — minimum0.75 mm²
connectable conductor cross-section finely stranded with core end processing — maximum25 mm²
AWG number as coded connectable conductor cross section — minimum18
AWG number as coded connectable conductor cross section — maximum4
tightening torque [lbf·in] with screw-type terminals — minimum22 lbf·in
tightening torque [lbf·in] with screw-type terminals — maximum31 lbf·in
tightening torque with screw-type terminals — minimum2.5 N·m
tightening torque with screw-type terminals — maximum3.5 N·m
position of power supply cordAny

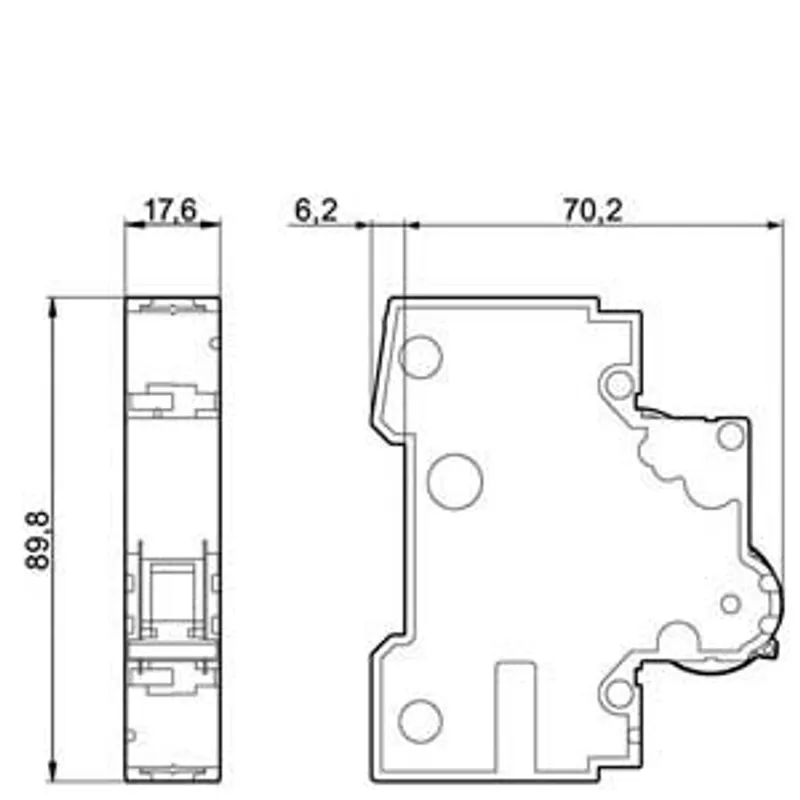

Mechanical Design

height90 mm
width18 mm
depth76 mm
installation depth70 mm
number of modular width units1
fastening methodDIN rail
mounting positionany
Net Weight166 g

Environmental conditions

influence of the surrounding temperaturemax. 95% RH up to 55°C, max. 55% RH up to 70°C, max. 35% RH up to 75°C
standardIEC / EN 60898-1, IEC / EN 60947-2 / UL1077
vibration resistance according to IEC 60068-2-6±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz
ambient temperature during operation — minimum-40 °C
ambient temperature during operation — maximum70 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum75 °C
number of test cycles for environmental testing according to IEC 60068-2-306
