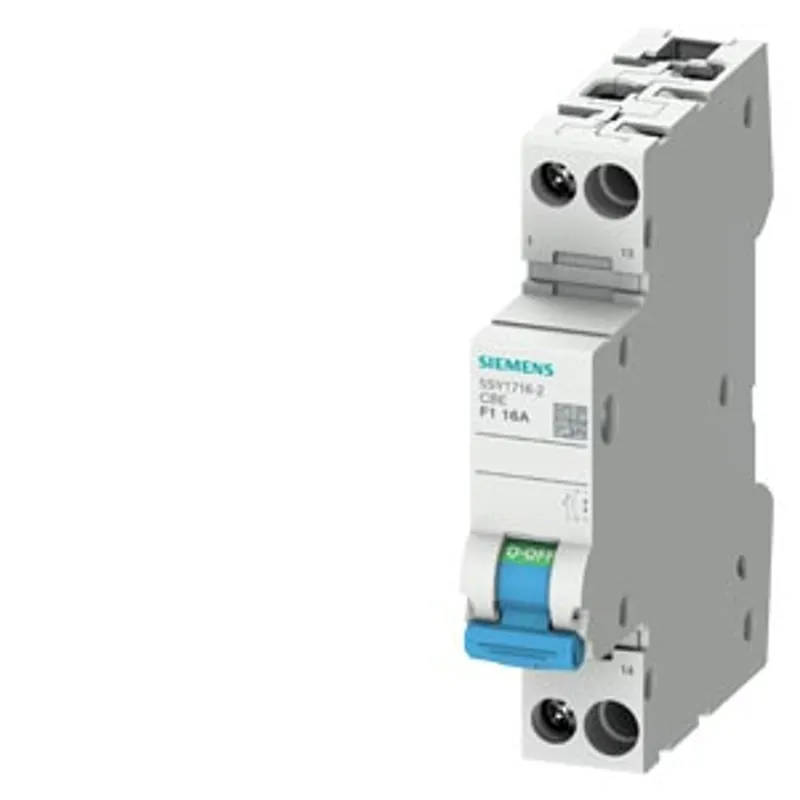

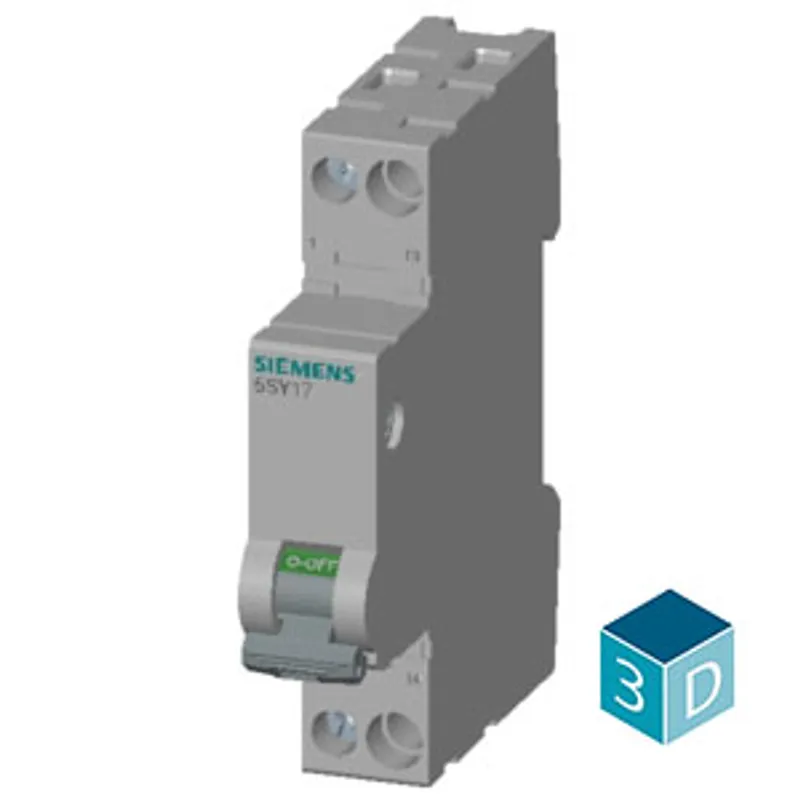

Siemens 5SY1705-2
Device circuit breaker 1-pole with auxiliary switch NO contact Characteristic F1 0.5A 230 V AC 50/60 Hz 60 V…
- MPN
- 5SY1705-2
- Category
- Basic Devices
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5SY1705-2?
Device circuit breaker 1-pole with auxiliary switch NO contact Characteristic F1 0.5A 230 V AC 50/60 Hz 60 V DC Icn 3 kA AC according to IEC 60934
Specifications
Model
| product brand name | SENTRON |
| product designation | Device protection switch |
General technical data
| number of poles | 1 |

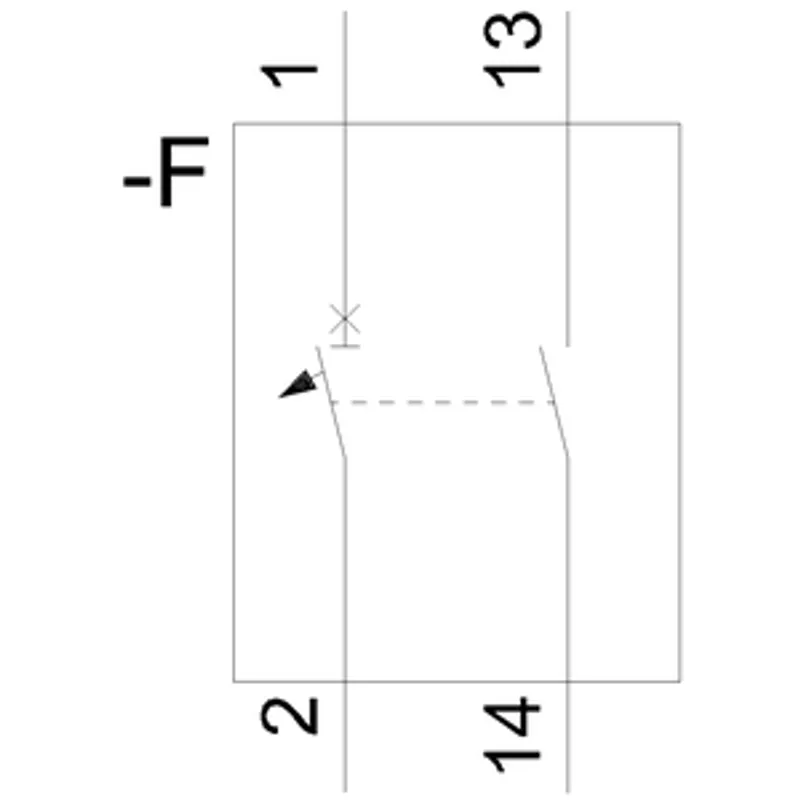

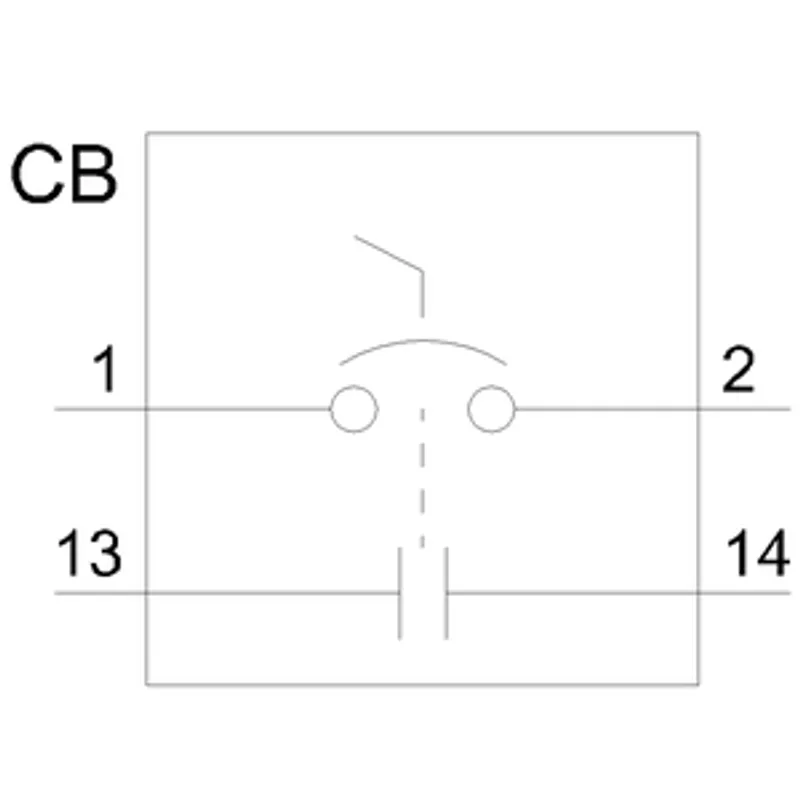

| design of pole | 1P+AS |
| tripping characteristic class | F1 |
| mechanical service life (operating cycles) typical | 6 000 |
| overvoltage category | 3 |
| degree of pollution | 2 |
Voltage
| type of voltage of the operating voltage | AC/DC |
| insulation voltage (Ui) — at DC rated value | 72 V |
| insulation voltage (Ui) — with single-phase operation at AC rated value | 250 V |
| operational current — at 40 °C rated value | 0.46 A |
| operational current — at 50 °C rated value | 0.43 A |
| operational current — at 55 °C rated value | 0.42 A |
| operational current — at 60 °C rated value | 0.4 A |
| operational current at AC rated value | 0.5 A |
Supply voltage
| supply voltage — at AC | 230 V |
| supply voltage — at DC rated value | 60 V |
| value range of the supply voltage frequency | 50/60 Hz |
| operating voltage at DC rated value maximum | 72 V |
Protection class
| protection class IP | IP20 |
Dissipation
| power loss [W] for rated value of the current at AC in hot operating state per pole | 2 W |
| suitability for operation | Residential buildings/infrastructure |
Product details
| product feature touch protection | Yes |
| product component — combined terminal top | No |
| product component — combined terminal bottom | No |
| product component — neutral conductor switching | No |
| product feature properties for main switches in accordance with EN 60204-1 | Yes |
| product feature halogen-free | Yes |
| product feature sealable | Yes |
| product feature silicon-free | Yes |
| product extension installable supplementary devices | Yes |
Connections
| connectable conductor cross-section solid — minimum | 0.5 mm² |
| connectable conductor cross-section solid — maximum | 16 mm² |
| connectable conductor cross-section stranded — minimum | 0.5 mm² |
| connectable conductor cross-section stranded — maximum | 16 mm² |
| connectable conductor cross-section finely stranded with core end processing — minimum | 0.5 mm² |
| connectable conductor cross-section finely stranded with core end processing — maximum | 10 mm² |
| AWG number as coded connectable conductor cross section — minimum | 20 |
| AWG number as coded connectable conductor cross section — maximum | 6 |
| tightening torque [lbf·in] with screw-type terminals — minimum | 17.7 lbf·in |
| tightening torque with screw-type terminals — minimum | 2 N·m |
| tightening torque with screw-type terminals — maximum | 2.5 N·m |
| position of power supply cord | Any |

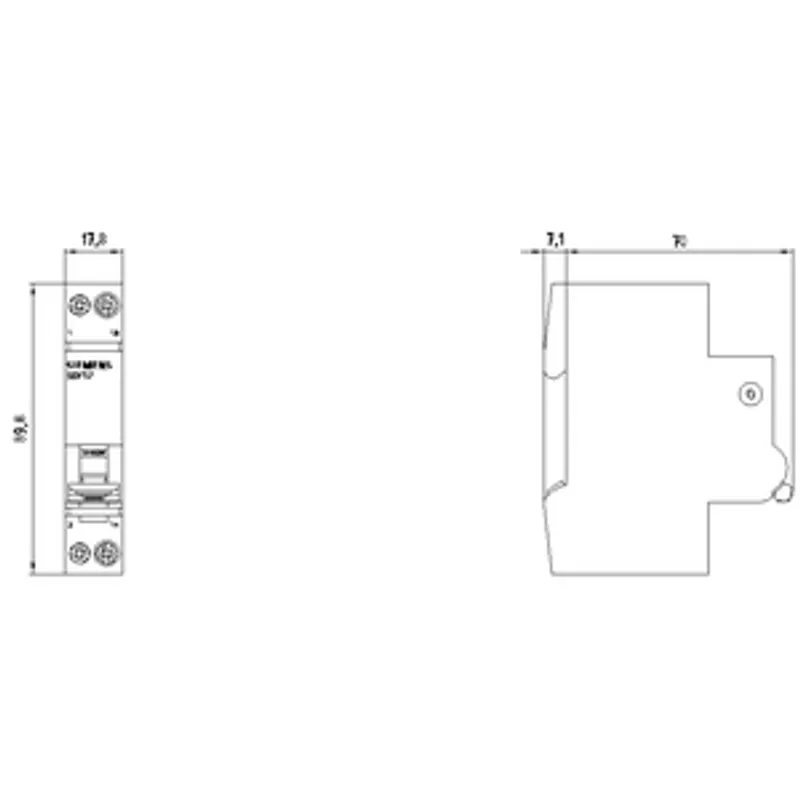

Mechanical Design
| height | 90 mm |
| width | 18 mm |
| depth | 76 mm |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | DIN rail |
| mounting position | Horizontal/vertical |
| Net Weight | 106 g |
Environmental conditions
| influence of the surrounding temperature | 30 °C @ 85%rF; 60 °C @ 20%rF" |
| standard | IEC / DIN EN 60934, UL1077 |
| vibration resistance according to IEC 60068-2-6 | Yes |
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 60 °C |
| ambient temperature during storage — minimum | -40 °C |
| ambient temperature during storage — maximum | 70 °C |
| number of test cycles for environmental testing according to IEC 60068-2-30 | 6 |
