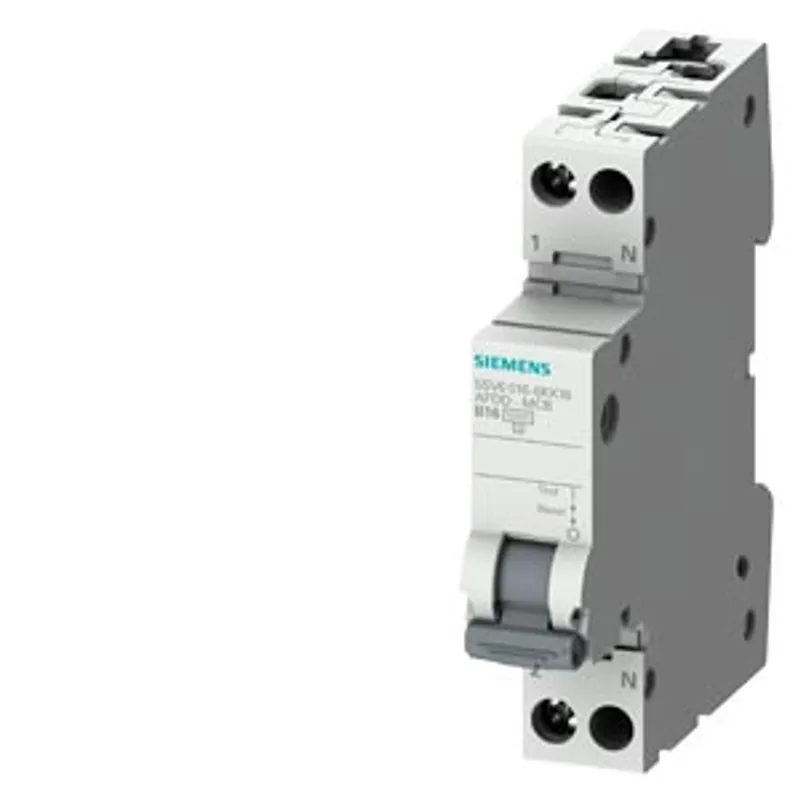

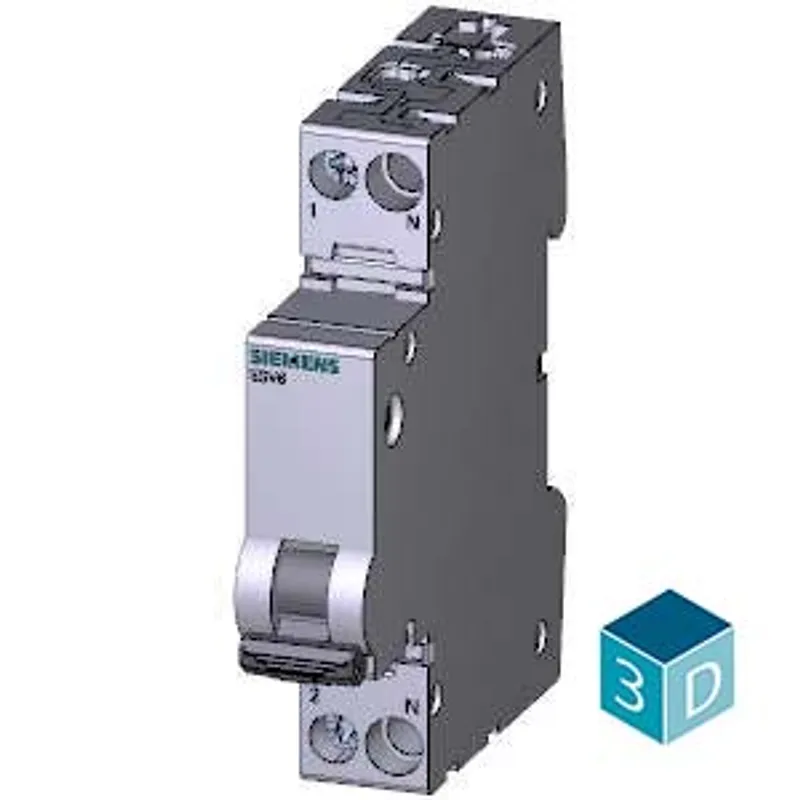

Siemens 5SV6016-6KK40

AFDD-MCB-Combination 230V, 6kA, 1+N, B, 40A Compact (1MW)

MPN
5SV6016-6KK40
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SV6016-6KK40?

AFDD-MCB-Combination 230V, 6kA, 1+N, B, 40A Compact (1MW)

Specifications

Model

product brand nameSENTRON
product designationAFDD/MCB
design of the productCompact unit

General technical data

number of poles2
design of pole1P+N
tripping characteristic classB
size of installation devices according to DIN 438801
touch protection against electrical shock according to EN 50274finger and back-of-hand safe
mechanical service life (operating cycles) typical10 000
switching function short-term delayedNo
overvoltage category3
degree of pollution2
type of voltage of the operating voltageAC

Supply voltage

supply voltage — at AC230 V
value range of the supply voltage frequency50Hz

Protection class

protection class IPIP20, with connected protective device and conductors

Breaking Capacity

switching capacity current — according to EN 60898-1 rated value6 000 A
switching capacity current — according to IEC 60947-2 rated value6 000 A
energy limitation class3

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole2.85 W

Product details

product feature halogen-freeYes
product feature silicon-freeYes
product extension installable supplementary devicesYes
product function — communication functionNo
product function — other measurement functionNo

Connections

connectable conductor cross-section solid — minimum0.75 mm²
connectable conductor cross-section solid — maximum16 mm²
connectable conductor cross-section stranded — minimum0.75 mm²
connectable conductor cross-section stranded — maximum16 mm²
connectable conductor cross-section finely stranded with core end processing — minimum0.75 mm²
connectable conductor cross-section finely stranded with core end processing — maximum10 mm²
tightening torque with screw-type terminals — minimum1.2 N·m
tightening torque with screw-type terminals — maximum2 N·m
position of power supply cordany

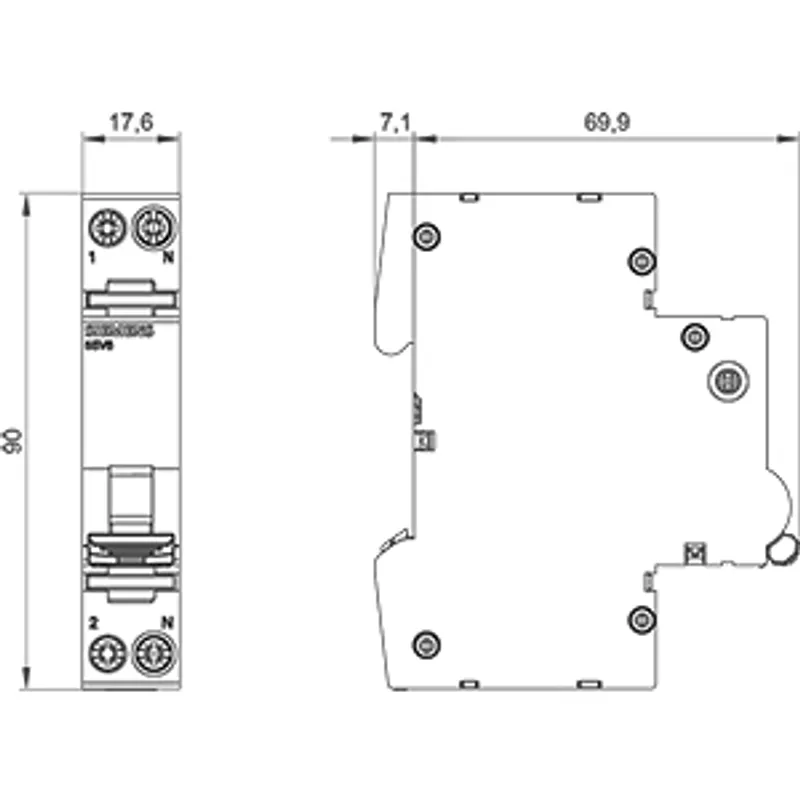

Mechanical Design

height90 mm
width18 mm
depth68.5 mm
installation depth70 mm
number of modular width units1
fastening methodDIN rail
mounting positionany
Net Weight141 g

Environmental conditions

ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum45 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum75 °C
ambient temperature with relative humidity 95%55 °C
number of test cycles for environmental testing according to IEC 60068-2-3028

Certificates

reference code according to IEC 81346-2F
