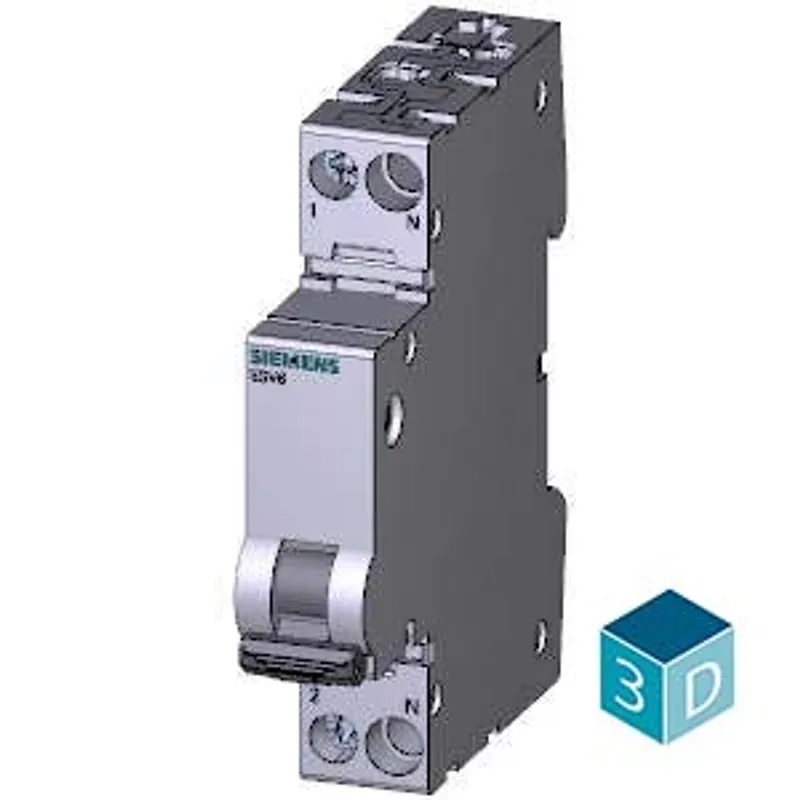

Siemens 5SV6016-6GV25

5SV6 AFDD/MCB 6kA B25 1+N 1MW Big Pack 12 pcs

MPN
5SV6016-6GV25
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SV6016-6GV25?

5SV6 AFDD/MCB 6kA B25 1+N 1MW Big Pack 12 pcs

Specifications

Model

product brand nameSENTRON
product designationAFDD/MCB
design of the productCompact unit

General technical data

number of poles2
design of pole1P+N
tripping characteristic classB
size of installation devices according to DIN 438801
touch protection against electrical shock according to EN 50274finger and back-of-hand safe
mechanical service life (operating cycles) typical10 000
switching function short-term delayedNo
overvoltage category3
degree of pollution2
type of voltage of the operating voltageAC

Supply voltage

supply voltage — at AC230 V
value range of the supply voltage frequency50Hz

Protection class

protection class IPIP20, with connected protective device and conductors

Breaking Capacity

switching capacity current — according to EN 60898-1 rated value6 000 A
switching capacity current — according to IEC 60947-2 rated value6 000 A
energy limitation class3

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole1.45 W

Product details

product feature halogen-freeYes
product feature silicon-freeYes
product extension installable supplementary devicesYes
product function — communication functionNo
product function — other measurement functionNo

Connections

connectable conductor cross-section solid — minimum0.75 mm²
connectable conductor cross-section solid — maximum16 mm²
connectable conductor cross-section stranded — minimum0.75 mm²
connectable conductor cross-section stranded — maximum16 mm²
connectable conductor cross-section finely stranded with core end processing — minimum0.75 mm²
connectable conductor cross-section finely stranded with core end processing — maximum10 mm²
tightening torque with screw-type terminals — minimum1.2 N·m
tightening torque with screw-type terminals — maximum2 N·m
position of power supply cordany

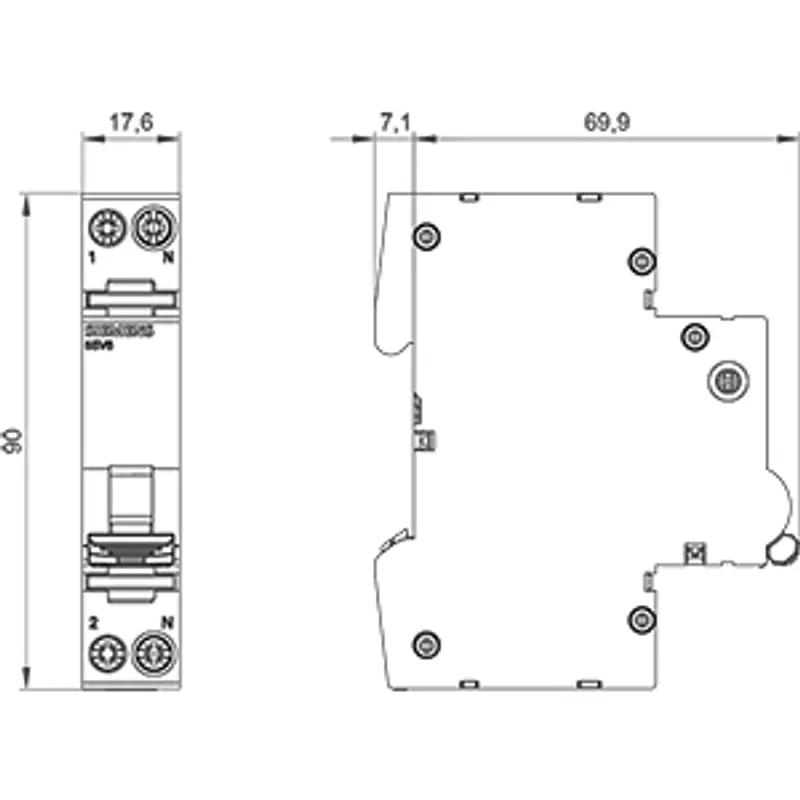

Mechanical Design

height90 mm
width18 mm
depth68.5 mm
installation depth70 mm
number of modular width units1
fastening methodDIN rail
mounting positionany
Net Weight124 g

Environmental conditions

ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum45 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum75 °C
ambient temperature with relative humidity 95%55 °C
number of test cycles for environmental testing according to IEC 60068-2-3028

Certificates

reference code according to IEC 81346-2F

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SV6016-6GV25: frequently asked questions

When can 5SV6016-6GV25 be shipped?

5SV6016-6GV25 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SV6016-6GV25 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SV6016-6GV25 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SV6016-6GV25, subject to availability and destination.

More Siemens parts

Siemens 5SV4746-0 – Residual current operated circuit breaker, 4-pole, type AC, In: 63 A, 500 mA
Siemens
5SV4746-0

Residual current operated circuit breaker, 4-pole, type AC

Siemens 5SV5311-6KL – Residual current operated circuit breaker, 2-pole, type A, In: 16 A, 30 mA, Un AC: 230 V, N left
Siemens
5SV5311-6KL

Residual current operated circuit breaker, 2-pole, type A

Siemens 5SV5312-6KL – Residual current operated circuit breaker, 2-pole, type A, In: 25 A, 30 mA, Un AC: 230 V, N left
Siemens
5SV5312-6KL

Residual current operated circuit breaker, 2-pole, type A

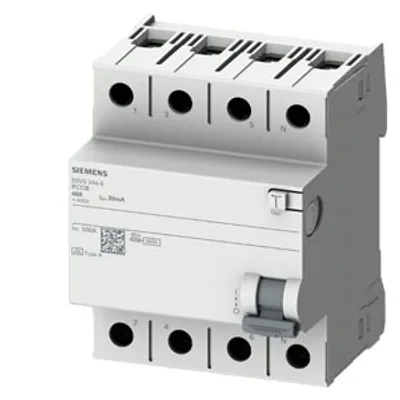

Siemens 5SV5346-6KL – Residual current operated circuit breaker, 4-pole, type A, In: 63 A, 30 mA, Un AC: 400 V, N left
