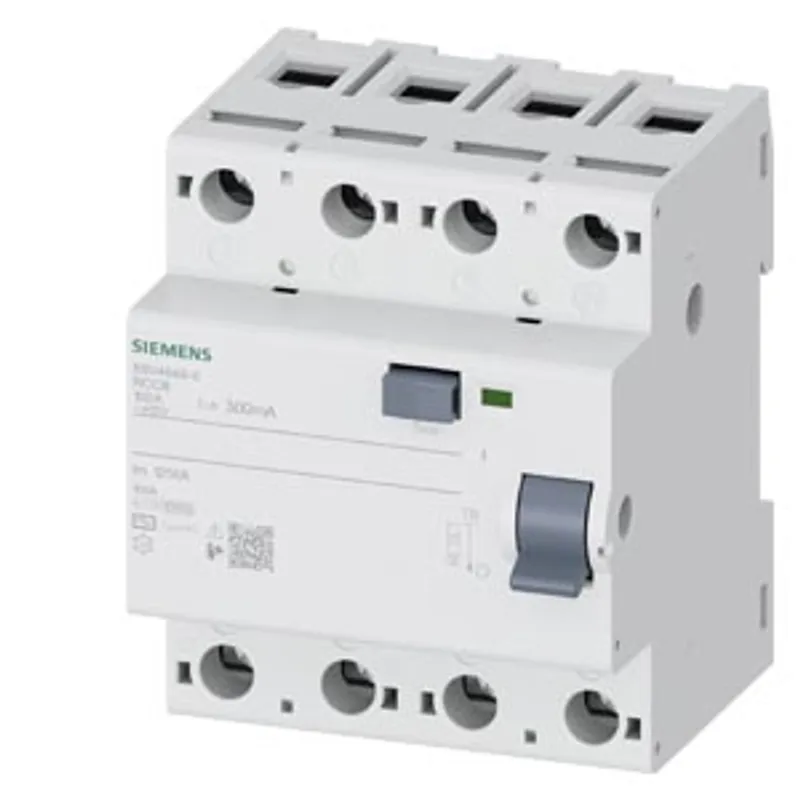

Siemens 5SV4648-0

Residual current operated circuit breaker, 4-pole, type AC, In: 100 A, 300 mA, Un AC: 400 V

MPN
5SV4648-0
Category
RCCBs
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SV4648-0?

residual current operated circuit breaker, 4-pole, type AC, In: 100 A, 300 mA, Un AC: 400 V, use of these devices is not permitted in all countries. Observe national installation regulations!

Specifications

Model

product brand nameSENTRON
product designationResidual current operated circuit breaker
design of the productInstantaneous
product type designation5SV4

General technical data

number of poles4
size of installation devices according to DIN 438801
mechanical service life (operating cycles) typical5 000
short-circuit current of series fuse maximum permissible125 A
short-circuit current rating10 kA
switching function short-term delayedNo
degree of pollution2
insulation voltage (Ui) rated value2 000 V
tripping fault current rated value300 mA
let-through current permissible6 400 A
I2t value permissible60 000 A²·s

Supply voltage

supply voltage for testing equipment minimum195 V
value range of the supply voltage frequency50 Hz
value range of the operating frequency50 Hz
value range of the supply voltage at AC230/400 V

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

switching capacity current — according to EN 60898 rated value1.25 kA
switching capacity current — according to IEC 61008-1 rated value1.25 kA
grid spacing60 mm

Dissipation

power loss [W] — for rated value of the current at AC in hot operating state per pole7 W
power loss [W] — maximum20 W

Appearance

RAL color number7 035
RAL color number (similar)7 035

Product details

product feature silicon-freeYes
product extension installable supplementary devicesNo

Connections

connectable conductor cross-section solid — minimum1 mm²
connectable conductor cross-section solid — maximum50 mm²
connectable conductor cross-section stranded — minimum1 mm²
connectable conductor cross-section stranded — maximum50 mm²
tightening torque with screw-type terminals — minimum3 N·m
tightening torque with screw-type terminals — maximum3.5 N·m
position of power supply cordtop or bottom

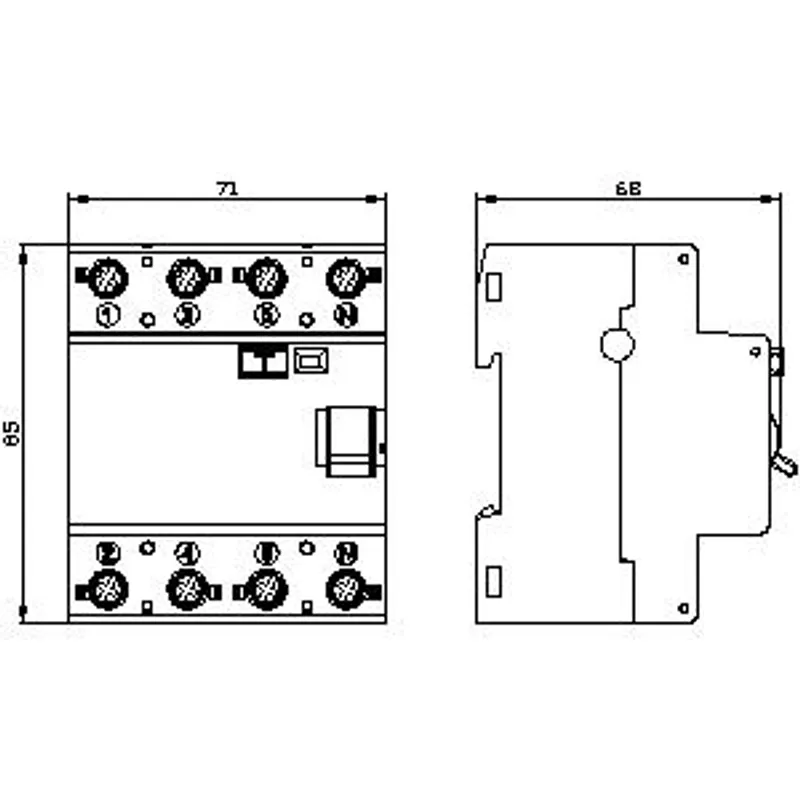

Mechanical Design

height85 mm
width71 mm
depth73 mm
installation depth70 mm
number of modular width units4
fastening methodDIN rail
mounting positionany
Net Weight370 g

Environmental conditions

ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum40 °C
ambient temperature during storage minimum-35 °C
number of test cycles for environmental testing according to IEC 60068-2-3028
