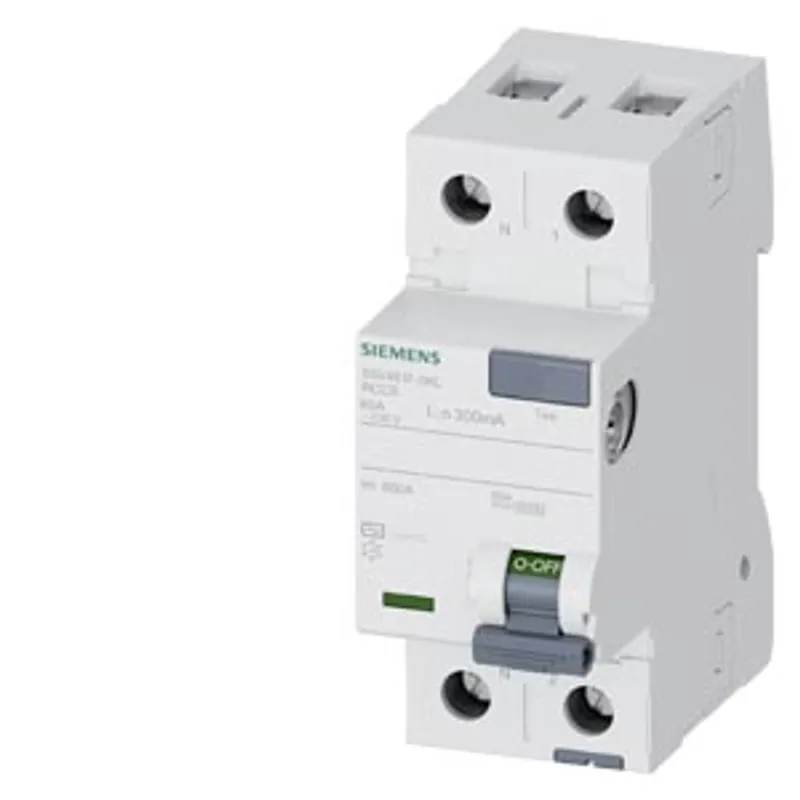

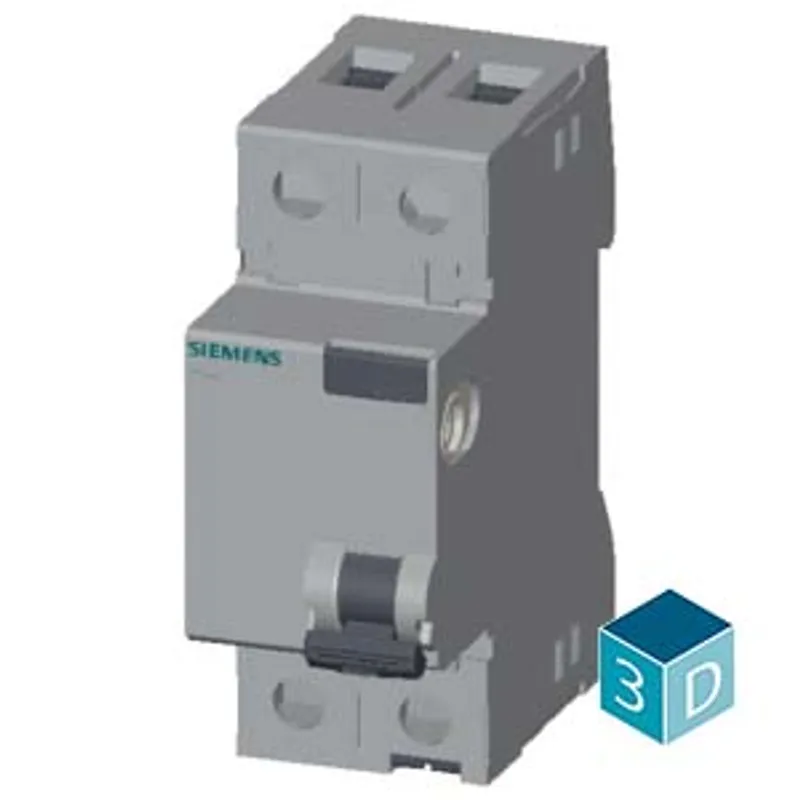

Siemens 5SV4617-0KL

Residual current operated circuit breaker, 2-pole, type AC, In: 80 A, 300 mA, Un AC: 230 V

MPN
5SV4617-0KL
Category
RCCBs
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SV4617-0KL?

residual current operated circuit breaker, 2-pole, type AC, In: 80 A, 300 mA, Un AC: 230 V, N left Use of these devices is not permitted in all countries. Observe national installation regulations!

Specifications

Model

product brand nameSENTRON
product designationResidual current operated circuit breaker
design of the productInstantaneous
product type designation5SV4
product versionN left

General technical data

number of poles2
size of installation devices according to DIN 438801
mechanical service life (operating cycles) typical10 000
short-circuit current of series fuse maximum permissible80 A
short-circuit current rating10 kA
switching function short-term delayedNo
degree of pollution2
insulation voltage (Ui) rated value2 000 V
tripping fault current rated value300 mA
let-through current permissible7 100 A
I2t value permissible110 000 A²·s

Supply voltage

supply voltage for testing equipment minimum100 V
value range of the supply voltage frequency50 Hz
value range of the operating frequency50 Hz
value range of the supply voltage at AC230/400 V

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

switching capacity current — according to IEC 61008-1 rated value0.8 kA
grid spacing60 mm

Dissipation

power loss [W] — for rated value of the current at AC in hot operating state per pole3.9 W
power loss [W] — maximum7.8 W

Appearance

RAL color number7 035
RAL color number (similar)7 035

Product details

product feature silicon-freeYes
product extension installable supplementary devicesYes

Connections

connectable conductor cross-section solid — minimum0.75 mm²
connectable conductor cross-section solid — maximum35 mm²
connectable conductor cross-section stranded — minimum0.75 mm²
connectable conductor cross-section stranded — maximum35 mm²
tightening torque with screw-type terminals — minimum2.5 N·m
tightening torque with screw-type terminals — maximum3 N·m
position of power supply cordtop or bottom

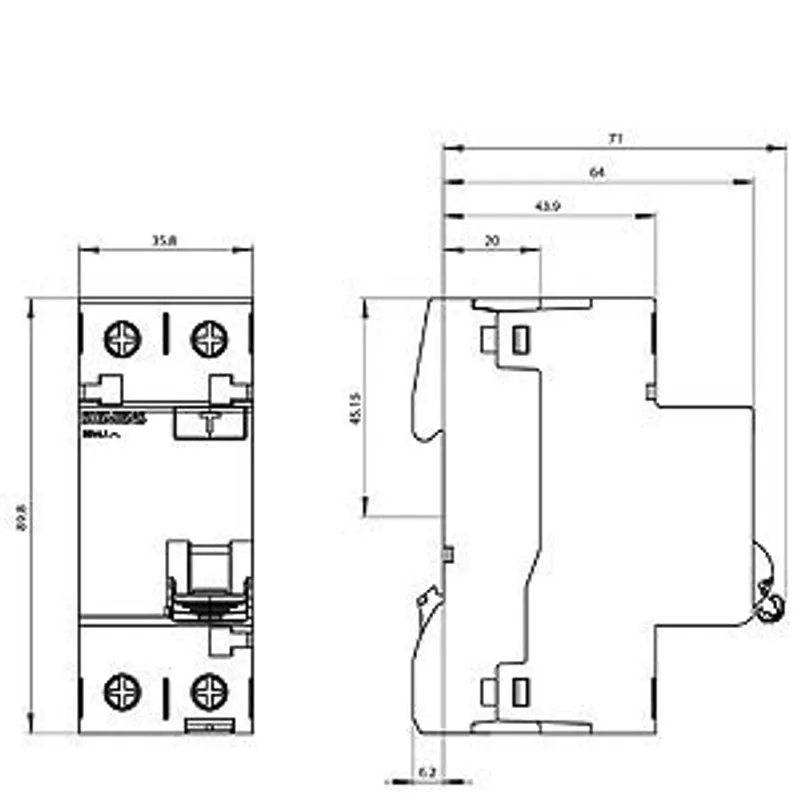

Mechanical Design

height90 mm
width36 mm
depth70 mm
installation depth70 mm
number of modular width units2
fastening methodDIN rail
mounting positionany
Net Weight205 g

Environmental conditions

ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum45 °C
ambient temperature during storage minimum-40 °C
number of test cycles for environmental testing according to IEC 60068-2-3028
