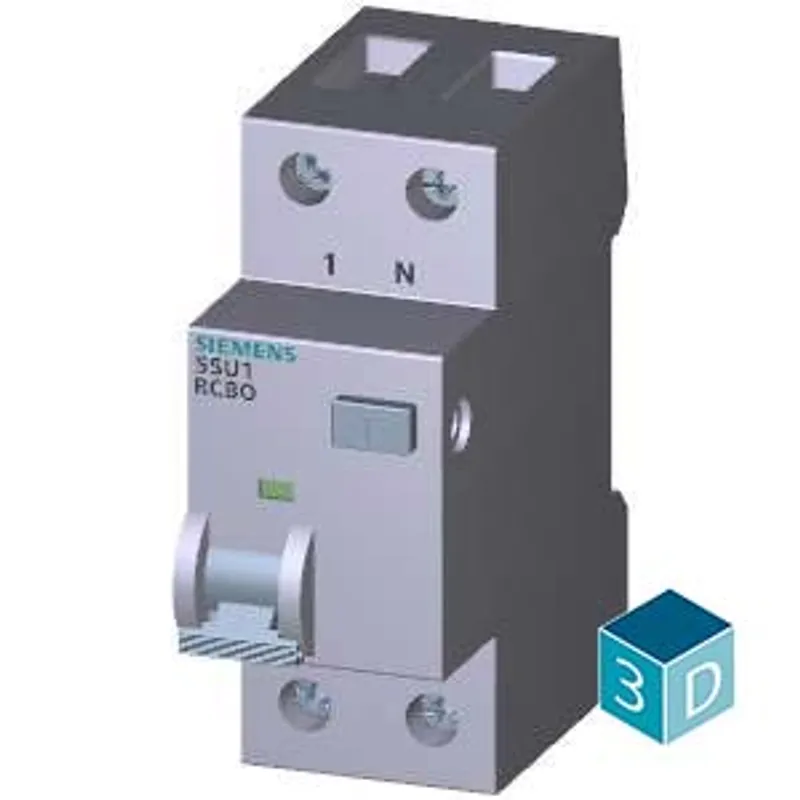

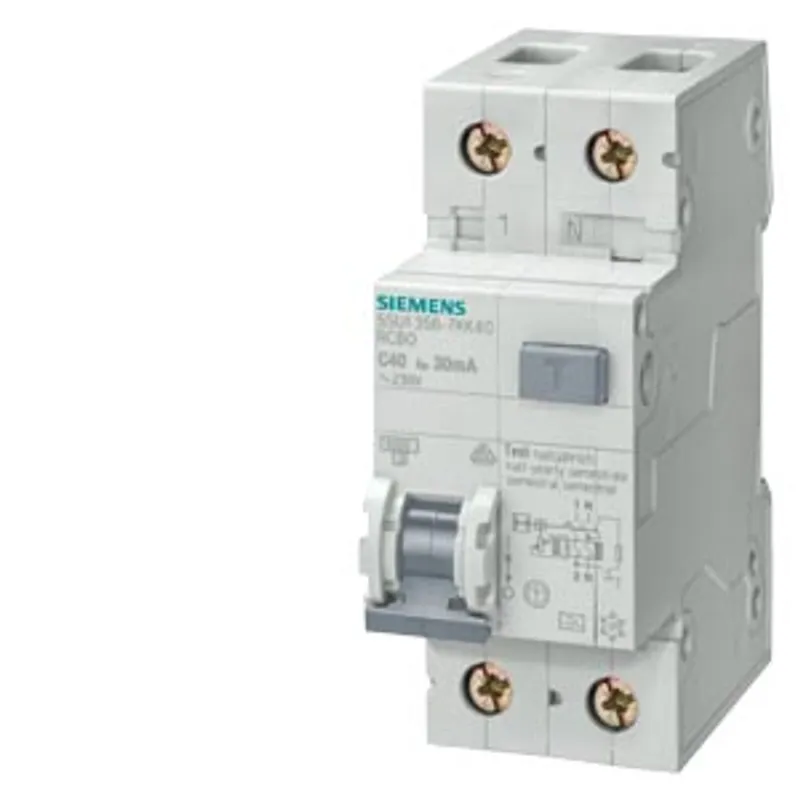

Siemens 5SU1656-6KK40

RCBO, 6 kA, 1P+N, type A, 300 mA, B char., In: 40 A, Un AC: 230 V

MPN
5SU1656-6KK40
Category
RCBOs
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SU1656-6KK40?

RCBO, 6 kA, 1P+N, type A, 300 mA, B char., In: 40 A, Un AC: 230 V

Specifications

Model

product brand nameSENTRON
product designationRCBO
design of the productInstantaneous

General technical data

number of poles2
number of poles with protection1
design of pole1P+N
tripping characteristic classB
mechanical service life (operating cycles) typical10 000
overvoltage category3
degree of pollution2

Voltage

type of voltage of the operating voltageAC
insulation voltage (Ui) rated value264 V
surge voltage resistance rated value4 000 V
surge current resistance at (8/20) µs1 kA
tripping fault current rated value300 mA
operational current — at 30 °C rated value40 A
operational current — at 40 °C rated value37.6 A
operational current — at 45 °C rated value36.4 A
operational current — at 50 °C rated value34.8 A
operational current — at 55 °C rated value32.4 A
operational current — at 60 °C rated value32.4 A
operational current — at 65 °C rated value30.8 A
operational current — at 70 °C rated value29.2 A
operational current at AC rated value40 A
residual current typeA

Supply voltage

supply voltage — at AC rated value230/240 V
supply voltage — for testing equipment minimum100 V
operating frequency50 Hz
supply voltage frequency rated value50 Hz

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

switching capacity current — according to EN 60898 rated value6 kA
switching capacity current — according to IEC 60947-2 rated value10 kA
short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value6 kA
rated residual switching capacity (IΔm) according to IEC 61009-16 kA
energy limitation class3

Dissipation

power loss [W] — maximum7.8 W

Product details

product feature touch protectionYes
product component neutral conductor switchingYes
product feature halogen-freeYes
product feature silicon-freeYes

Connections

connectable conductor cross-section solid — minimum0.75 mm²
connectable conductor cross-section solid — maximum35 mm²
connectable conductor cross-section stranded — minimum0.75 mm²
connectable conductor cross-section stranded — maximum35 mm²
connectable conductor cross-section finely stranded with core end processing — minimum0.75 mm²
connectable conductor cross-section finely stranded with core end processing — maximum25 mm²
tightening torque with screw-type terminals — minimum2.5 N·m
tightening torque with screw-type terminals — maximum3 N·m
position of power supply cordEither top or bottom

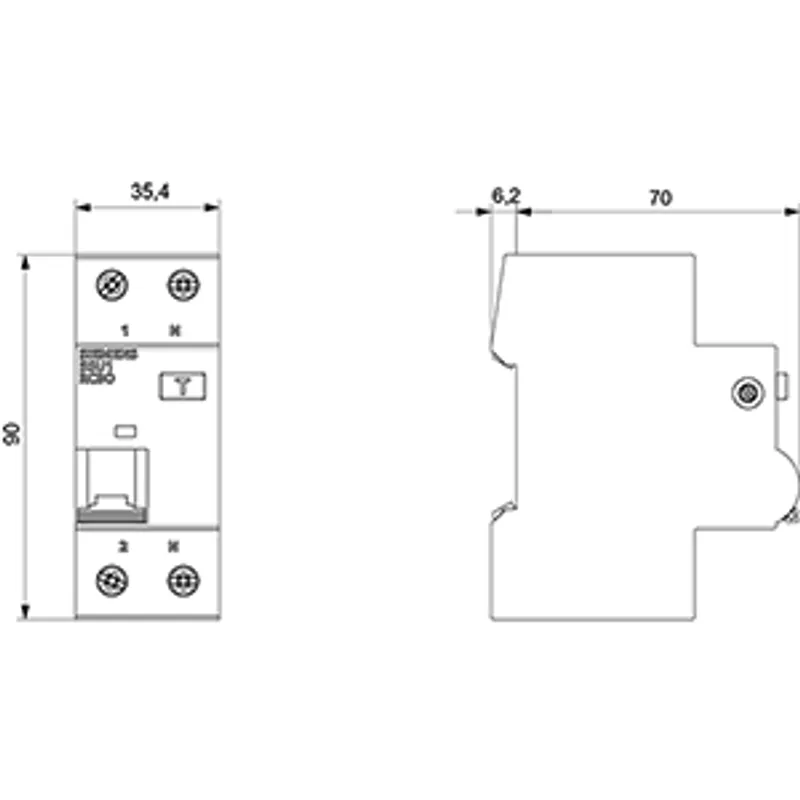

Mechanical Design

height90 mm
width36 mm
depth77 mm
installation depth70 mm
number of modular width units2
mounting positionany
Net Weight289 g

Environmental conditions

influence of the surrounding temperatureMax. 95% humidity
ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum55 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum75 °C
number of test cycles for environmental testing according to IEC 60068-2-3028
