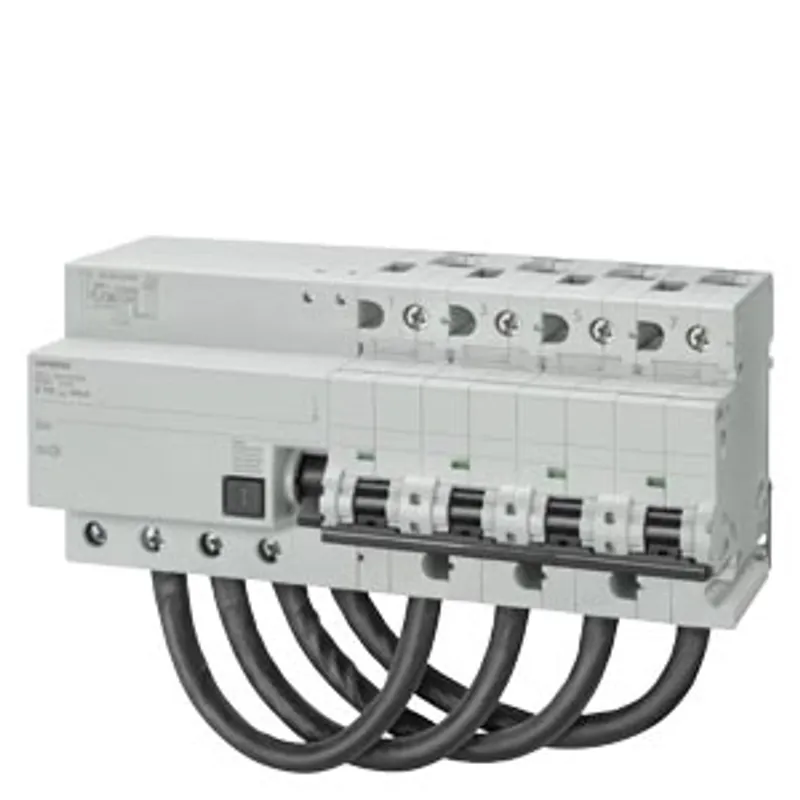

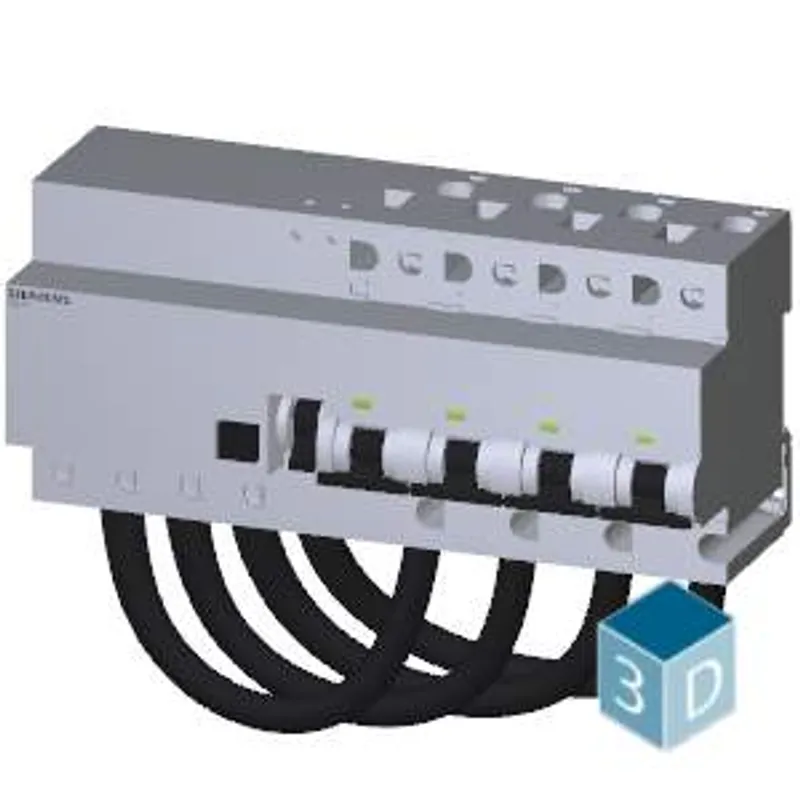

Siemens 5SU1644-7KK82

RCBO, 10 kA, 4P, type A, 300 mA, C-Char, In: 125 A, Un AC: 400 V

MPN
5SU1644-7KK82
Category
RCBOs
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SU1644-7KK82?

RCBO, 10 kA, 4P, type A, 300 mA, C-Char, In: 125 A, Un AC: 400 V

Specifications

Model

product brand nameSENTRON
product designationRCBO
design of the productInstantaneous

General technical data

number of poles4
number of poles with protection4
design of pole4P
tripping characteristic classC
mechanical service life (operating cycles) typical10 000
overvoltage category3

Voltage

type of voltage of the operating voltageAC
insulation voltage (Ui) rated value440 V
surge voltage resistance rated value4 000 V
surge current resistance at (8/20) µs1 kA
tripping fault current rated value300 mA
operational current — at 30 °C rated value125 A
operational current — at 40 °C rated value115.62 A
operational current — at 45 °C rated value111.25 A
operational current — at 50 °C rated value106.25 A
operational current — at 55 °C rated value101.25 A
operational current — at 60 °C rated value96.25 A
operational current at AC rated value125 A
residual current typeA

Supply voltage

supply voltage — at AC rated value230/400 V
supply voltage — for testing equipment minimum100 V
operating frequency50 Hz
supply voltage frequency rated value50 Hz

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

switching capacity current — according to EN 60898 rated value10 kA
switching capacity current — according to IEC 60947-2 rated value10 kA
short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value10 kA
rated residual switching capacity (IΔm) according to IEC 61009-110 kA
energy limitation class3

Product details

product feature touch protectionYes
product component neutral conductor switchingYes
product feature halogen-freeYes
product feature silicon-freeYes

Connections

connectable conductor cross-section solid — minimum6 mm²
connectable conductor cross-section solid — maximum50 mm²
connectable conductor cross-section stranded — minimum6 mm²
connectable conductor cross-section stranded — maximum50 mm²
connectable conductor cross-section finely stranded with core end processing — minimum6 mm²
connectable conductor cross-section finely stranded with core end processing — maximum35 mm²
tightening torque with screw-type terminals — minimum3 N·m
tightening torque with screw-type terminals — maximum3.5 N·m
position of power supply cordEither top or bottom

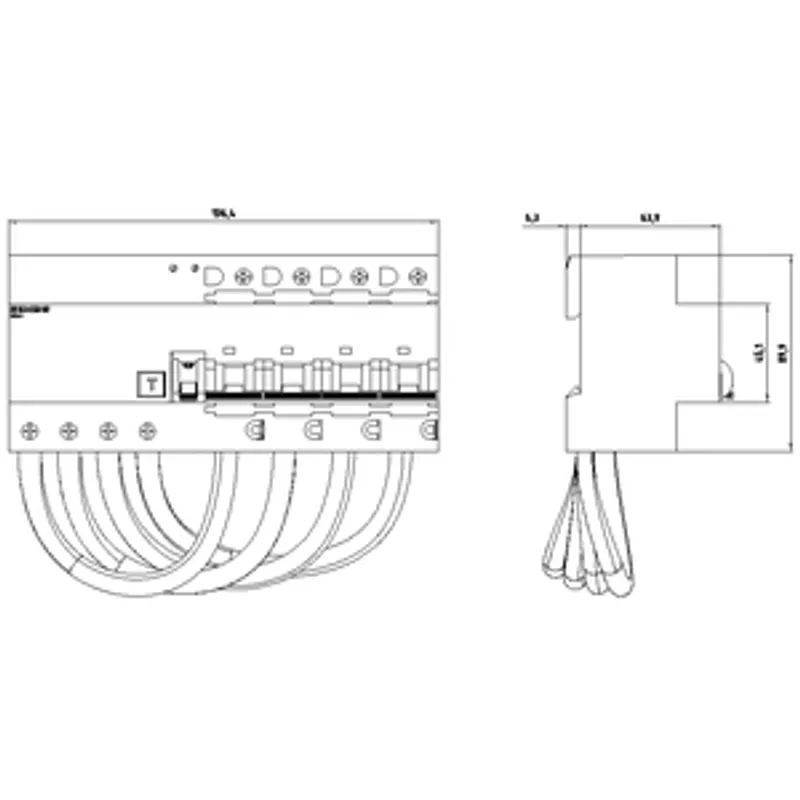

Mechanical Design

height90 mm
width198 mm
depth77 mm
installation depth70 mm
number of modular width units11
mounting positionany
Net Weight2.029 kg

Environmental conditions

influence of the surrounding temperatureMax. 95% humidity
ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum55 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum75 °C
number of test cycles for environmental testing according to IEC 60068-2-3028

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SU1644-7KK82: frequently asked questions

When can 5SU1644-7KK82 be shipped?

5SU1644-7KK82 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SU1644-7KK82 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SU1644-7KK82 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SU1644-7KK82, subject to availability and destination.
