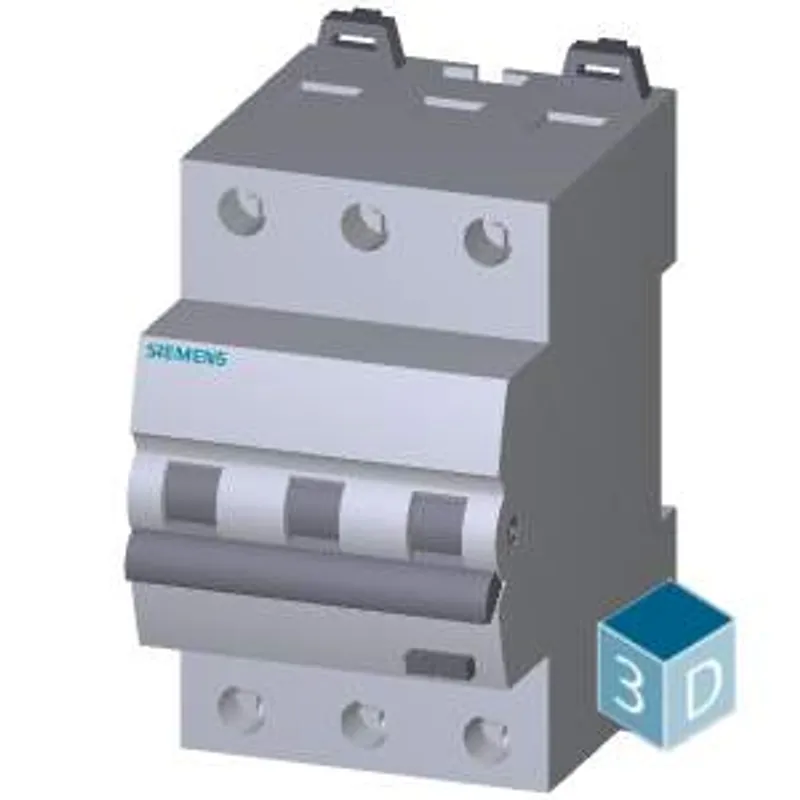

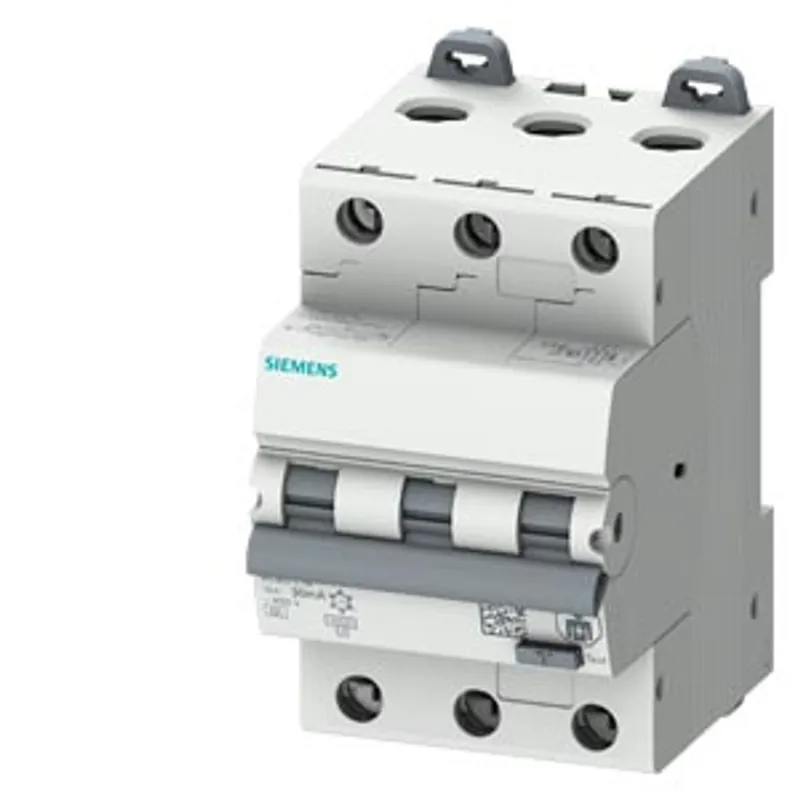

Siemens 5SU1336-7FP13

RCBO, 6 kA, 3P Type A, 30 mA, C-Char, In: 13A Un: 400V

MPN
5SU1336-7FP13
Category
RCBOs
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SU1336-7FP13?

RCBO, 6 kA, 3P Type A, 30 mA, C-Char, In: 13A Un: 400V

Specifications

Model

product brand nameSENTRON
product designationRCBO
design of the productInstantaneous

General technical data

number of poles3
number of poles with protection3
design of pole3P
tripping characteristic classC
mechanical service life (operating cycles) typical10 000
overvoltage category3
degree of pollution3

Voltage

type of voltage of the operating voltageAC
insulation voltage (Ui) rated value500 V
surge voltage resistance rated value4 000 V
surge current resistance at (8/20) µs0.25 kA
tripping fault current rated value30 mA
operational current — at 30 °C rated value13 A
operational current — at 40 °C rated value12.2 A
operational current — at 45 °C rated value11.7 A
operational current — at 50 °C rated value11.2 A
operational current — at 55 °C rated value10.8 A
operational current — at 60 °C rated value10.3 A
operational current — at 70 °C rated value9.3 A
operational current at AC rated value13 A
residual current typeA

Supply voltage

supply voltage — at AC rated value400 V
supply voltage — for testing equipment minimum340 V
operating frequency50 Hz
supply voltage frequency rated value50 Hz

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

switching capacity current — according to EN 60898 rated value6 kA
switching capacity current — according to IEC 60947-2 rated value6 kA
short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value6 kA
rated residual switching capacity (IΔm) according to IEC 61009-14.5 kA
energy limitation class3

Dissipation

power loss [W] — maximum2.5 W

Product details

product feature touch protectionYes
product component neutral conductor switchingNo
product feature halogen-freeNo

Connections

connectable conductor cross-section solid — minimum1 mm²
connectable conductor cross-section solid — maximum35 mm²
connectable conductor cross-section stranded — minimum1 mm²
connectable conductor cross-section stranded — maximum35 mm²
connectable conductor cross-section finely stranded with core end processing — minimum1 mm²
connectable conductor cross-section finely stranded with core end processing — maximum35 mm²
tightening torque with screw-type terminals — minimum2 N·m
tightening torque with screw-type terminals — maximum2 N·m
position of power supply cordEither top or bottom

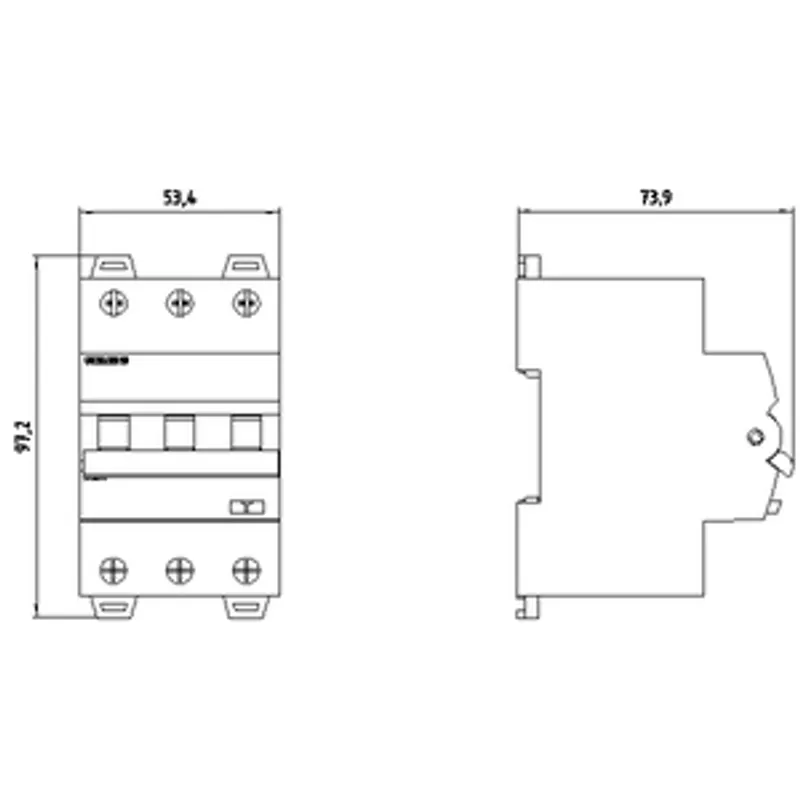

Mechanical Design

height85 mm
width54 mm
depth72 mm
installation depth70 mm
number of modular width units3
mounting positionany
Net Weight337 g

Environmental conditions

influence of the surrounding temperatureMax. 95% humidity
ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum40 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum70 °C
number of test cycles for environmental testing according to IEC 60068-2-3028
