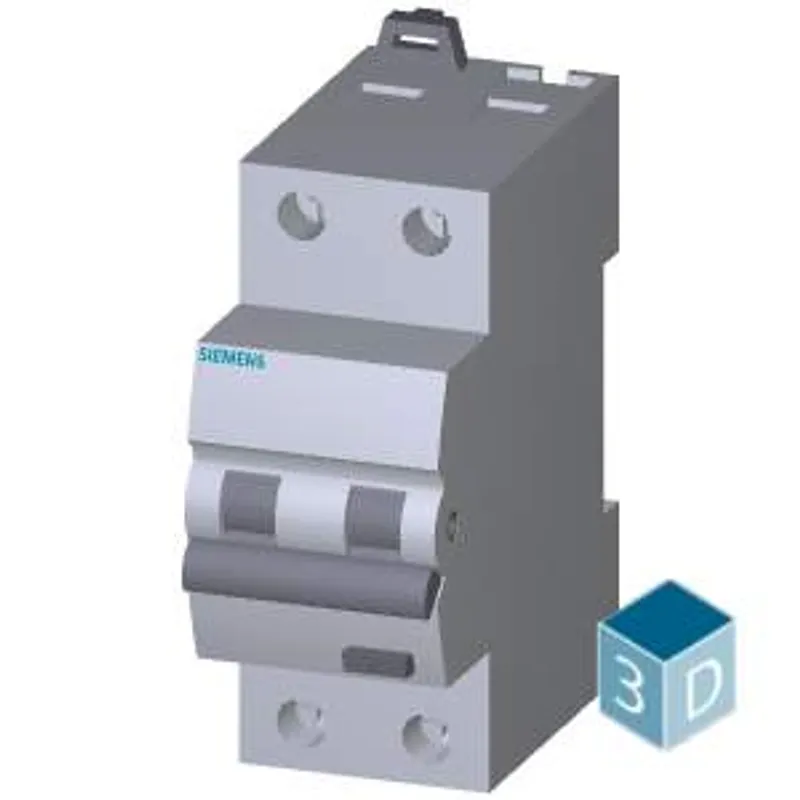

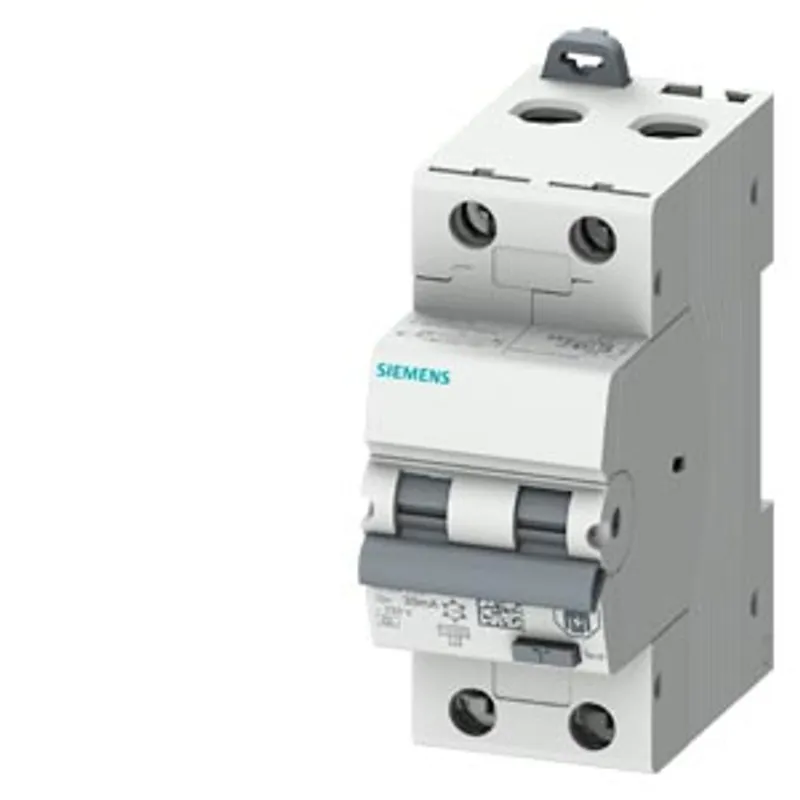

Siemens 5SU1324-7FP20
RCBO, 10 kA, 2P Type A, 30 mA, C-Char, In: 20A Un: 230V
- MPN
- 5SU1324-7FP20
- Category
- RCBOs
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5SU1324-7FP20?
RCBO, 10 kA, 2P Type A, 30 mA, C-Char, In: 20A Un: 230V
Specifications
Model
| product brand name | SENTRON |
| product designation | RCBO |
| design of the product | Instantaneous |
General technical data
| number of poles | 2 |
| number of poles with protection | 2 |
| design of pole | 2P |
| tripping characteristic class | C |
| mechanical service life (operating cycles) typical | 10 000 |
| overvoltage category | 3 |
| degree of pollution | 3 |
Voltage
| type of voltage of the operating voltage | AC |
| insulation voltage (Ui) rated value | 500 V |
| surge voltage resistance rated value | 4 000 V |
| surge current resistance at (8/20) µs | 0.25 kA |
| tripping fault current rated value | 30 mA |
| operational current — at 30 °C rated value | 20 A |
| operational current — at 40 °C rated value | 19.5 A |
| operational current — at 45 °C rated value | 19.2 A |
| operational current — at 50 °C rated value | 18.9 A |
| operational current — at 55 °C rated value | 18.7 A |
| operational current — at 60 °C rated value | 18.4 A |
| operational current — at 70 °C rated value | 17.8 A |
| operational current at AC rated value | 20 A |
| residual current type | A |
Supply voltage
| supply voltage — at AC rated value | 230/240 V |
| supply voltage — for testing equipment minimum | 195 V |
| operating frequency | 50 Hz |
| supply voltage frequency rated value | 50 Hz |
Protection class
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
Breaking Capacity
| switching capacity current — according to EN 60898 rated value | 10 kA |
| switching capacity current — according to IEC 60947-2 rated value | 15 kA |
| short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value | 10 kA |
| rated residual switching capacity (IΔm) according to IEC 61009-1 | 4.5 kA |
| energy limitation class | 3 |
Dissipation
| power loss [W] — for rated value of the current at AC in hot operating state per pole | 1.36 W |
| power loss [W] — maximum | 2.7 W |
Product details
| product feature touch protection | Yes |
| product component neutral conductor switching | Yes |
| product feature halogen-free | No |
Connections
| connectable conductor cross-section solid — minimum | 1 mm² |
| connectable conductor cross-section solid — maximum | 35 mm² |
| connectable conductor cross-section stranded — minimum | 1 mm² |
| connectable conductor cross-section stranded — maximum | 35 mm² |
| connectable conductor cross-section finely stranded with core end processing — minimum | 1 mm² |
| connectable conductor cross-section finely stranded with core end processing — maximum | 35 mm² |
| tightening torque with screw-type terminals — minimum | 2 N·m |
| tightening torque with screw-type terminals — maximum | 2 N·m |
| position of power supply cord | Either top or bottom |

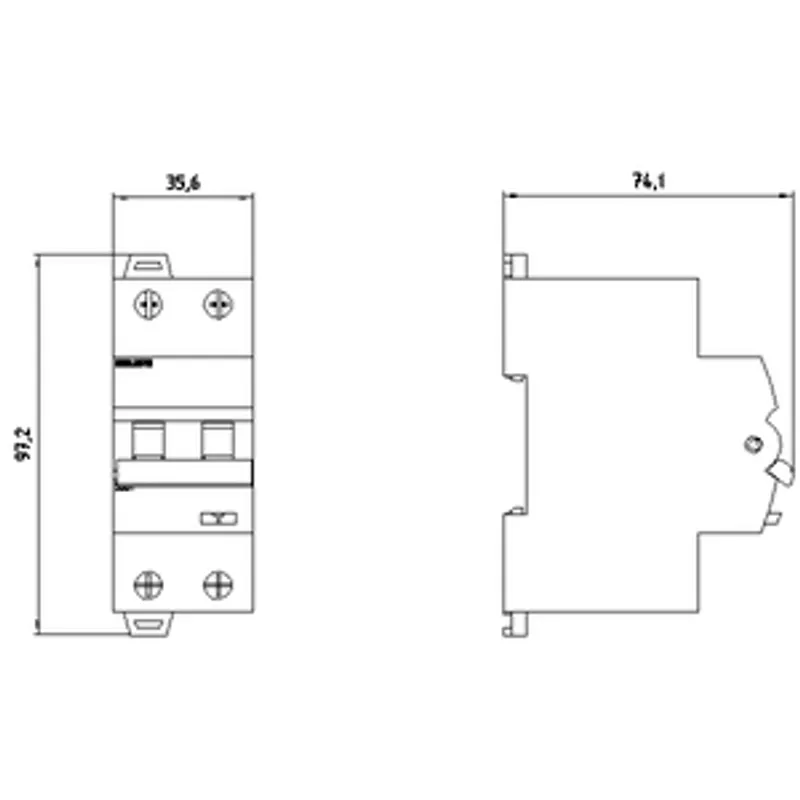

Mechanical Design
| height | 85 mm |
| width | 36 mm |
| depth | 72 mm |
| installation depth | 70 mm |
| number of modular width units | 2 |
| mounting position | any |
| Net Weight | 246 g |
Environmental conditions
| influence of the surrounding temperature | Max. 95% humidity |
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 40 °C |
| ambient temperature during storage — minimum | -40 °C |
| ambient temperature during storage — maximum | 70 °C |
| number of test cycles for environmental testing according to IEC 60068-2-30 | 28 |
