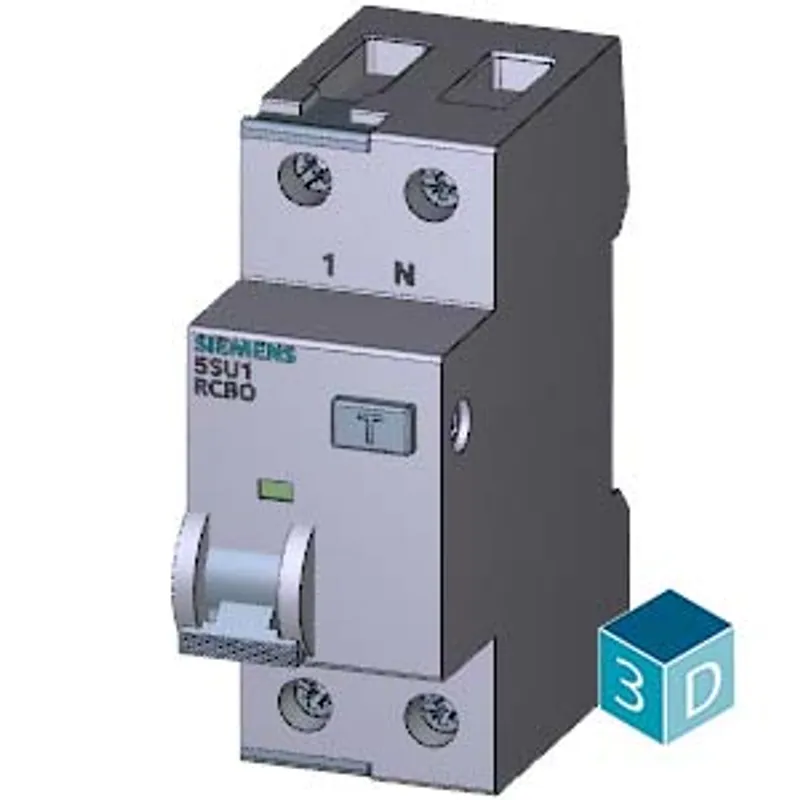

Siemens 5SU1154-6KK06

RCBO, 10 kA, 1P+N, type A, 10 mA, B char., In: 6 A, Un AC: 230 V

MPN
5SU1154-6KK06
Category
RCBOs
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SU1154-6KK06?

RCBO, 10 kA, 1P+N, type A, 10 mA, B char., In: 6 A, Un AC: 230 V

Specifications

Model

product brand nameSENTRON
product designationRCBO
design of the productInstantaneous

General technical data

number of poles2
number of poles with protection1
design of pole1P+N
tripping characteristic classB
mechanical service life (operating cycles) typical10 000
overvoltage category3
degree of pollution2

Voltage

type of voltage of the operating voltageAC
insulation voltage (Ui) rated value264 V
surge voltage resistance rated value4 000 V
surge current resistance at (8/20) µs1 kA
tripping fault current rated value10 mA
operational current — at 30 °C rated value6 A
operational current — at 40 °C rated value5.7 A
operational current — at 45 °C rated value5.58 A
operational current — at 50 °C rated value5.4 A
operational current — at 55 °C rated value5.22 A
operational current — at 60 °C rated value5.1 A
operational current — at 65 °C rated value4.86 A
operational current — at 70 °C rated value4.62 A
operational current at AC rated value6 A
residual current typeA

Supply voltage

supply voltage — at AC rated value230/240 V
supply voltage — for testing equipment minimum100 V
operating frequency50 Hz
supply voltage frequency rated value50 Hz

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

switching capacity current — according to EN 60898 rated value10 kA
switching capacity current — according to IEC 60947-2 rated value35 kA
short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value10 kA
rated residual switching capacity (IΔm) according to IEC 61009-110 kA
energy limitation class3

Dissipation

power loss [W] — maximum2.8 W

Product details

product feature touch protectionYes
product component neutral conductor switchingYes
product feature halogen-freeYes
product feature silicon-freeYes

Connections

connectable conductor cross-section solid — minimum0.75 mm²
connectable conductor cross-section solid — maximum35 mm²
connectable conductor cross-section stranded — minimum0.75 mm²
connectable conductor cross-section stranded — maximum35 mm²
connectable conductor cross-section finely stranded with core end processing — minimum0.75 mm²
connectable conductor cross-section finely stranded with core end processing — maximum25 mm²
tightening torque with screw-type terminals — minimum2.5 N·m
tightening torque with screw-type terminals — maximum3 N·m
position of power supply cordEither top or bottom

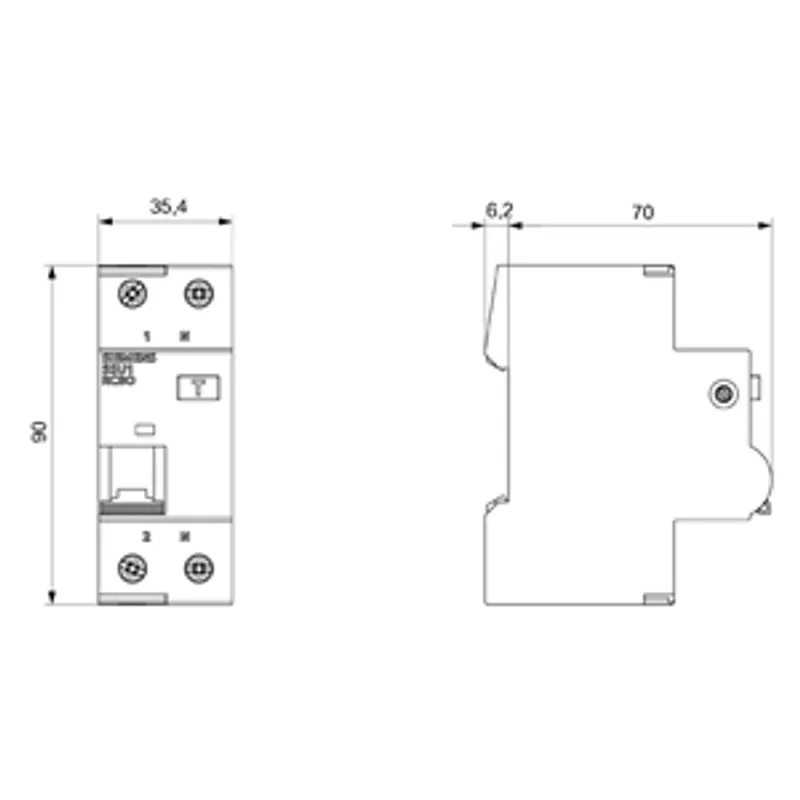

Mechanical Design

height90 mm
width36 mm
depth77 mm
installation depth70 mm
number of modular width units2
mounting positionany
Net Weight277 g

Environmental conditions

influence of the surrounding temperatureMax. 95% humidity
ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum55 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum75 °C
number of test cycles for environmental testing according to IEC 60068-2-3028

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SU1154-6KK06: frequently asked questions

When can 5SU1154-6KK06 be shipped?

5SU1154-6KK06 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SU1154-6KK06 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SU1154-6KK06 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SU1154-6KK06, subject to availability and destination.
