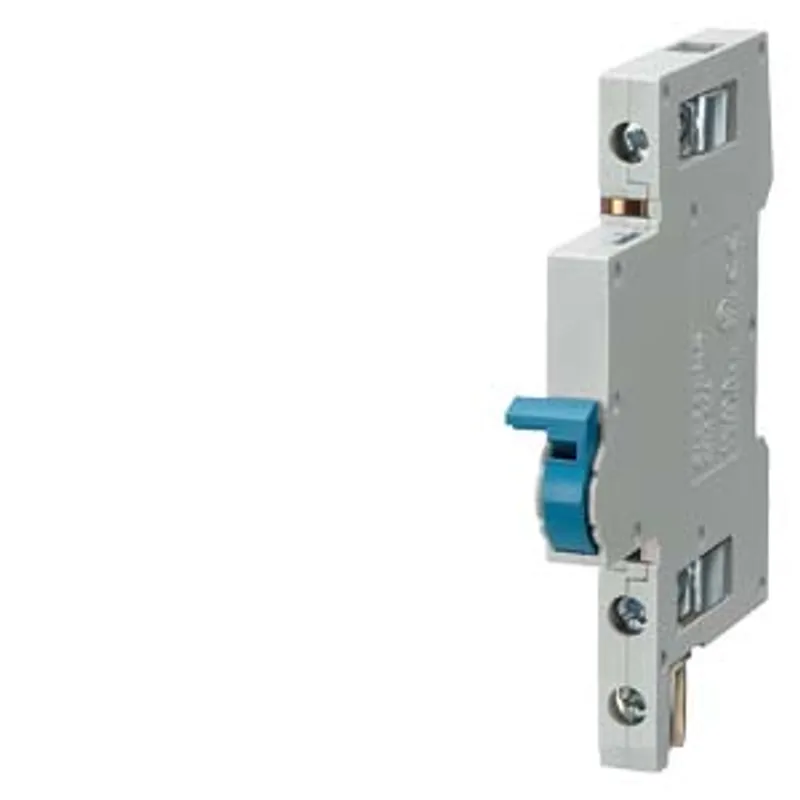

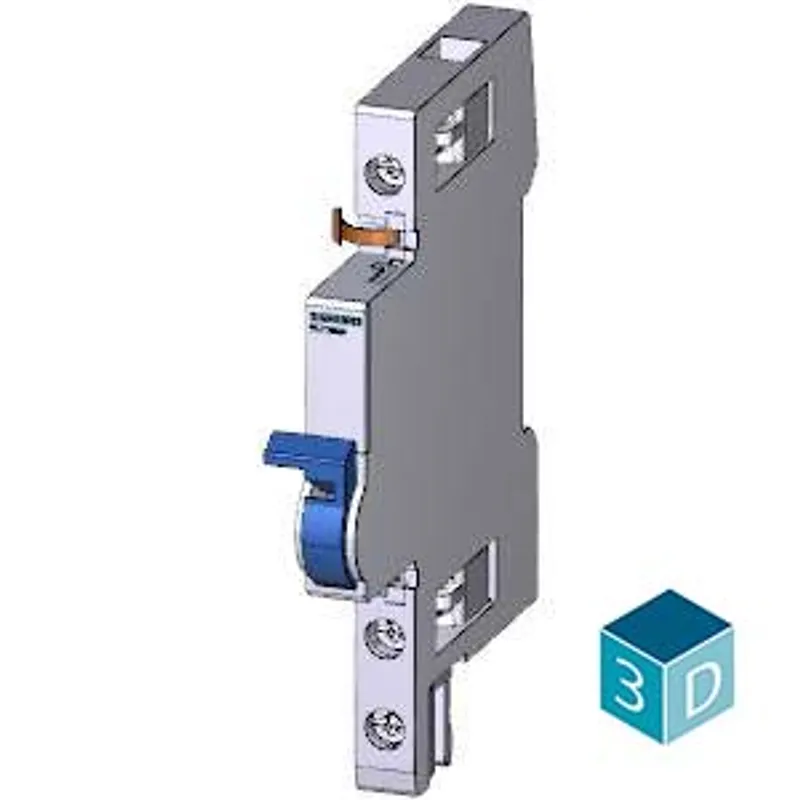

Siemens 5ST3804

Neutral conductor isolator for miniature circuit breaker 5SY, 5SL and 5SJ

MPN
5ST3804
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5ST3804?

Neutral conductor isolator for miniature circuit breaker 5SY, 5SL and 5SJ

Specifications

Model

product brand nameSENTRON
product designationNeutral disconnector
design of the productfor miniature circuit breakers 5SY, 5SL and 5SJ

Voltage

insulation voltage rated value440 V
surge voltage resistance rated value6 kV

Product details

product extensionneutral disconnector

Connections

connectable conductor cross-section — minimum1 mm²
connectable conductor cross-section — maximum16 mm²
tightening torque with screw-type terminals — minimum1.2 N·m
tightening torque with screw-type terminals — maximum1.5 N·m

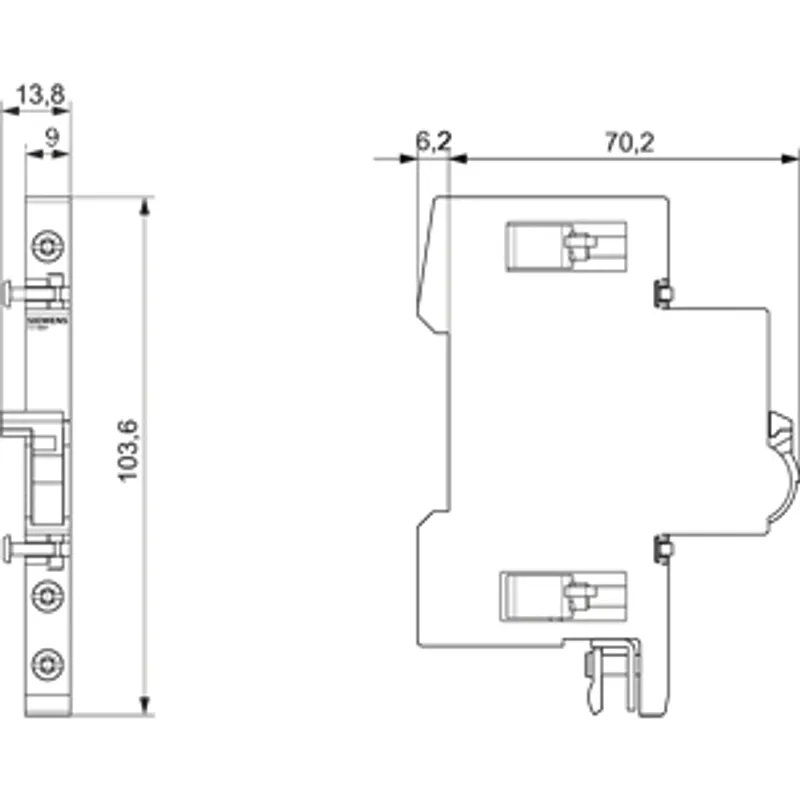

Mechanical Design

height104 mm
width9 mm
depth76 mm
number of modular width units1
Net Weight60 g

Environmental conditions

ambient temperature during operation — minimum-40 °C
ambient temperature during operation — maximum70 °C
ambient temperature during storage minimum-40 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5ST3804: frequently asked questions

When can 5ST3804 be shipped?

5ST3804 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5ST3804 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5ST3804 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ST3804, subject to availability and destination.
