Siemens 5ST3031-0HG

Shunt release 24-60 V DC for miniature circuit breaker according to UL 489

MPN
5ST3031-0HG
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

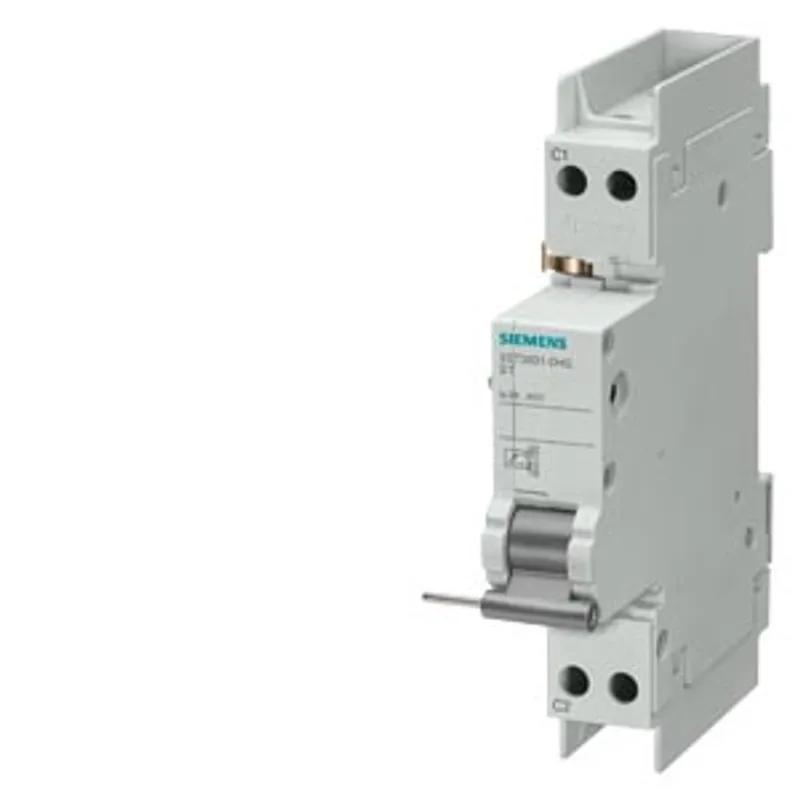

What is the Siemens 5ST3031-0HG?

shunt release 24-60 V DC for miniature circuit breaker according to UL 489

Specifications

Model

product brand nameSENTRON
product designationShunt trip
design of the productMountable
design of the product factory mountedNo
electrical endurance (operating cycles) typical6 000

Current

operational current at DC rated value0.05 A

Supply voltage

operating voltage — rated value60 V
operating voltage — at AC rated value minimum24 V
operating voltage — at AC rated value maximum60 V
operating voltage — at DC rated value minimum24 V
operating voltage — at DC rated value maximum60 V
protection class IPIP20

Control current

type of voltage of control voltageAC/DC

Product details

product component — auxiliary switchNo
number of fault signal contacts0
number of NC contacts0
number of NO contacts0
number of CO contacts0
product extension can be mountedCircuit breaker
product extensionshunt trip

Connections

connectable conductor cross-section — minimum0.5 mm²
connectable conductor cross-section — maximum2.5 mm²
AWG number as coded connectable conductor cross section — minimum24
AWG number as coded connectable conductor cross section — maximum12
tightening torque with screw-type terminals — maximum0.8 N·m

Mechanical Design

height110 mm
width18 mm
depth70 mm
number of modular width units1
Net Weight125 g

Environmental conditions

standardIEC/EN60947-1; UL489

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5ST3031-0HG: frequently asked questions

When can 5ST3031-0HG be shipped?

5ST3031-0HG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5ST3031-0HG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5ST3031-0HG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ST3031-0HG, subject to availability and destination.
