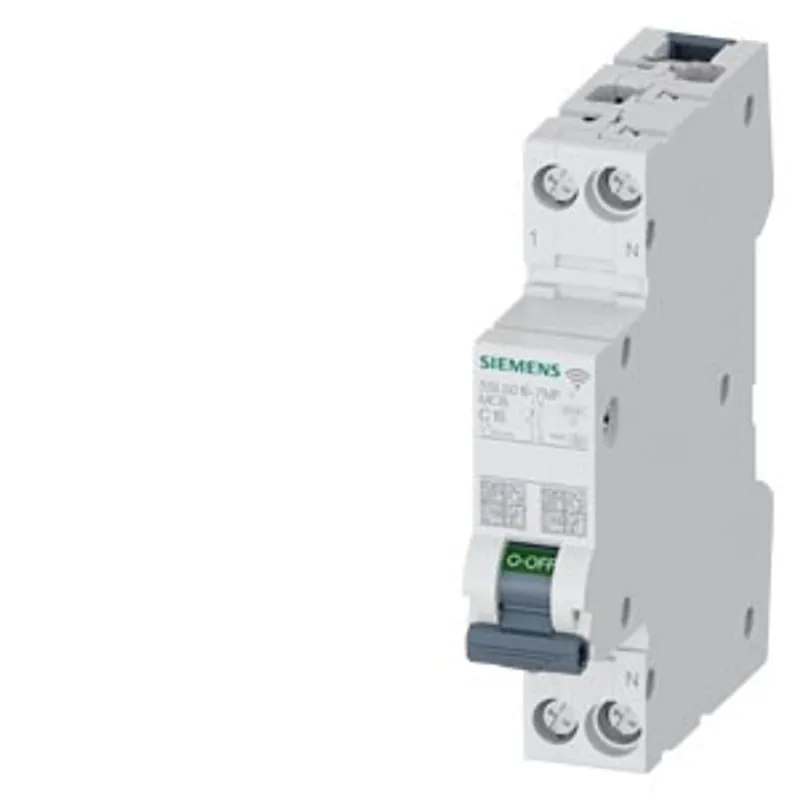

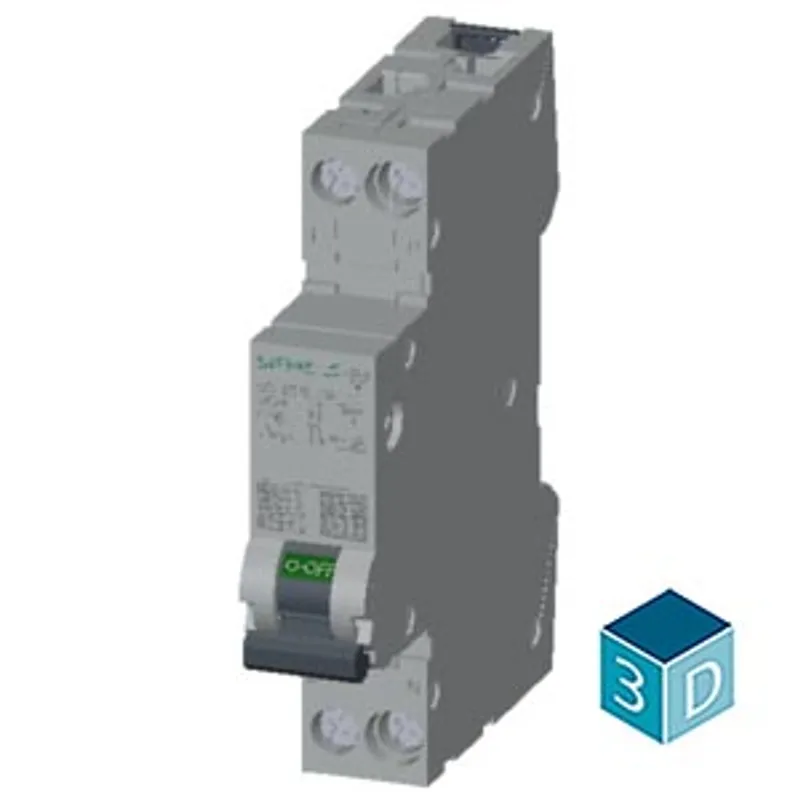

Siemens 5SL6016-7MF

Miniature Circuit Breaker Measuring RCM / EM Communication AC 230V 6kA, 1+N pole, C

MPN
5SL6016-7MF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SL6016-7MF?

Miniature Circuit Breaker Measuring RCM / EM Communication AC 230V 6kA, 1+N pole, C, 16A Please consider Radio approval! List of countries: see Certificates

Specifications

Model

product brand nameSENTRON
product designationMiniature circuit breaker
design of the productMiniature circuit breaker COM compact
product versionNotice! This is NOT a device with a residual-current protection function. This device must never be used instead of an RCD.
type of measured value detectioncompletely

General technical data

design of pole1P+N
apparent power consumption of the power supply1.4 V·A
tripping characteristic classC
mechanical service life (operating cycles) typical10 000
electrical endurance (operating cycles) at AC load in the mean value7 500
measurable line frequency initial value45 Hz
measurable line frequency full-scale value65 Hz
overvoltage category3
degree of pollution2
frequency with radio transmission minimum2 400 MHz
frequency with radio transmission maximum2 483.5 MHz
status display of the measured datavoltage, current, residual current, active power, apparent power, reactive power, active energy, line frequency, power factor, temperature, switching cycles, operating hours, tripping, warnings

Voltage

type of voltage of the operating voltageAC
insulation voltage (Ui) at AC rated value285 V
supply voltage with single-phase operation at AC rated value230 V
operational current — at 30 °C rated value16 A
operational current — at 40 °C rated value15.06 A
operational current — at 50 °C rated value13.53 A
operational current — at 55 °C rated value14.06 A
operational current — at 60 °C rated value12.98 A
operational current at AC rated value16 A
measurable current at AC — initial value0.04 A
measurable current at AC — full-scale value33 A
reference current (Iref) 1 at AC rated value16 A

Supply voltage

supply voltage — at AC230 V
value range of the supply voltage frequency50/60 Hz
operating voltage — minimum120 V
operating voltage — with single-phase operation at AC maximum400 V

Protection class

protection class IPIP20, with connected conductors
protection class IP — on the frontIP40
protection class IP — rear sideIP20

Breaking Capacity

switching capacity current — according to EN 60898 rated value6 kA
grid spacing35 mm
energy limitation class3

Dissipation

power loss [W] for rated value of the current — at AC in hot operating state per pole2.1 W

Residual current

monitoring function of residual currents according to standardDIN EN IEC 62020-1 (VDE 0663-1)
type of residual current monitoringType F
measuring channels with residual currentBase Frequency, Harmonics, Lowpass AC, Lowpass RMS, Bandpass, Highpass
measuring precision of the residual current3mA...5mA: +/-30%; 5mA...1000mA: +/-15%
residual current at measuring range lower limit0.003 A
residual current at measuring range upper limit1 A
prewarning threshold of the residual current in factory setting50 %
prewarning threshold of the residual current at setting range lower limit50 %
prewarning threshold of the residual current at setting range upper limit100 %
residual current alarm threshold in factory setting0.015 A
residual current alarm threshold at setting range upper limit0.3 A
residual current alarm threshold at setting range lower limit0.007 A
frequency measuring range with residual current<= 100kHz

Suitability

suitability for use ammeterYes
suitability for use reactive power meterYes
suitability for use frequency meterYes
suitability for use voltmeterYes
suitability for use wattmeterYes

Product details

product feature touch protectionYes
product component — combined terminal topNo
product component — combined terminal bottomNo
product component — neutral conductor switchingYes
product feature properties for main switches in accordance with EN 60204-1No
product feature halogen-freeYes
product feature sealableYes
product feature silicon-freeYes
product extension installable supplementary devicesYes

Product function

product function — communication functionYes
product function — other measurement functionYes

Communication

guideline via radio-controlled system2014/53/EU
protocol is supportedWireless protocol

Fault limits

standards for error limitsbased on IEC61557-12, IEC62053-22, IEC62053-23
relative symmetrical measurement uncertainty [%] — for measured variable current0.5 %
relative symmetrical measurement uncertainty [%] — for measured variable electrical energy1 %

Measuring inputs

measurable supply voltage between (PE)N and L at AC — minimum100 V
measurable supply voltage between (PE)N and L at AC — maximum400 V
measuring category for voltage measurementCATIII according IEC 61010-2-030
measuring procedure for current measurementTRMS
measuring procedure for voltage measurementTRMS

Connections

connectable conductor cross-section solid — minimum0.75 mm²
connectable conductor cross-section solid — maximum16 mm²
connectable conductor cross-section stranded — minimum0.75 mm²
connectable conductor cross-section stranded — maximum16 mm²
connectable conductor cross-section finely stranded with core end processing — minimum0.75 mm²
connectable conductor cross-section finely stranded with core end processing — maximum10 mm²
tightening torque [lbf·in] with screw-type terminals — minimum10.6 lbf·in
tightening torque [lbf·in] with screw-type terminals — maximum17.7 lbf·in
tightening torque with screw-type terminals — minimum1.2 N·m
tightening torque with screw-type terminals — maximum2 N·m
position of power supply cordAny

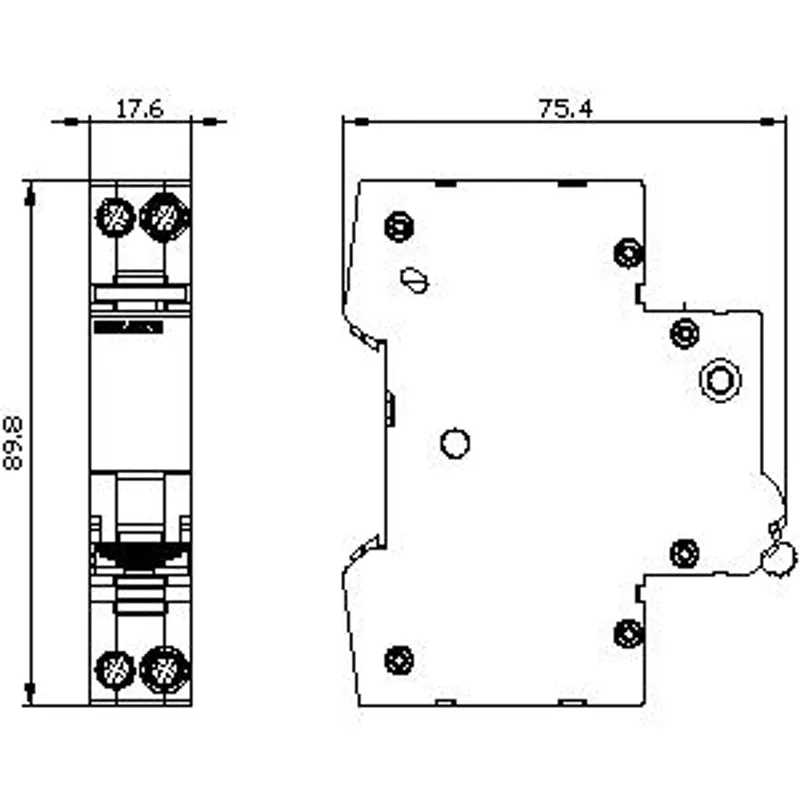

Mechanical Design

height90 mm
width18 mm
depth76 mm
installation depth70 mm
number of modular width units1
fastening methodDIN rail
mounting positionany
Net Weight134 g

Environmental conditions

standardIEC/EN60898-1, GB/T10963.1
standard for shocksIEC 61373
standard for environmental sinusoidal oscillation checkIEC 60068-2-6
vibration resistance according to IEC 60068-2-6Yes
ambient temperature during operation — minimum-40 °C
ambient temperature during operation — maximum70 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum75 °C
number of test cycles for environmental testing according to IEC 60068-2-3028

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SL6016-7MF: frequently asked questions

When can 5SL6016-7MF be shipped?

5SL6016-7MF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SL6016-7MF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SL6016-7MF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SL6016-7MF, subject to availability and destination.
