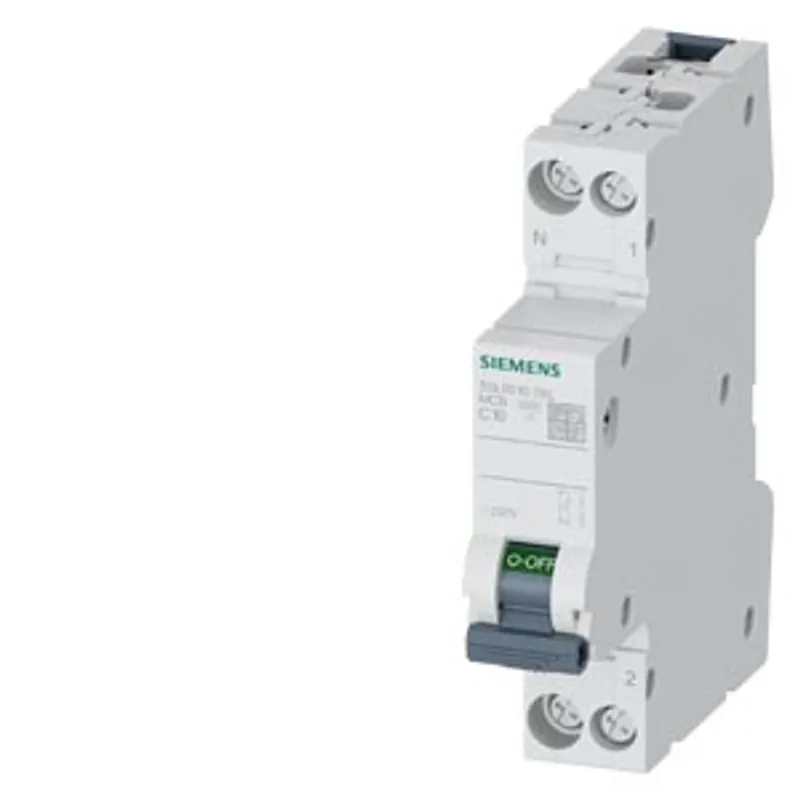

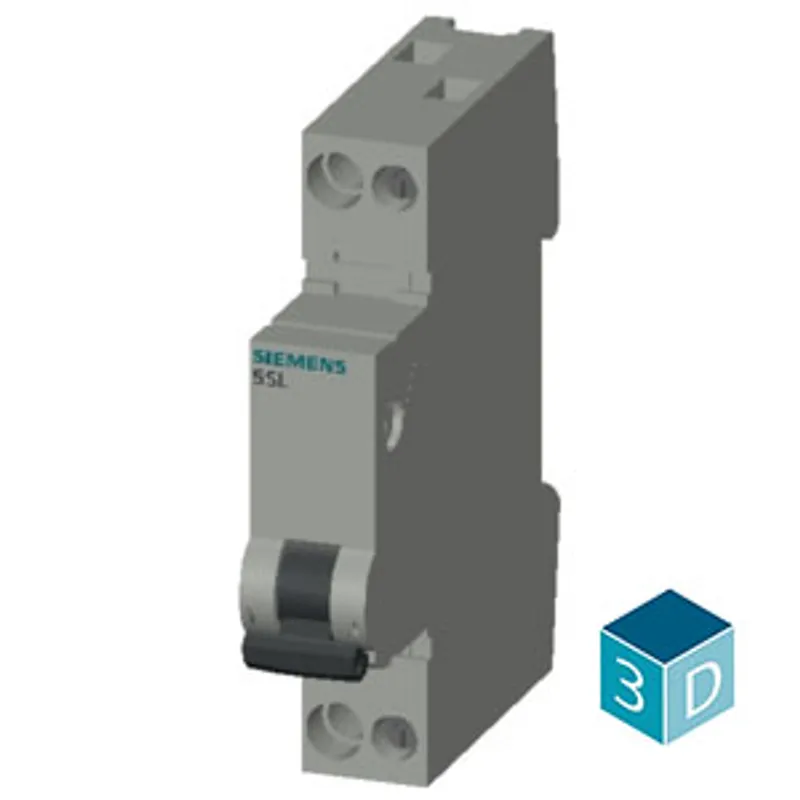

Siemens 5SL6010-7KL

Miniature circuit breaker 230 V, 6 kA, 1+N-pole/1 MW, N left, C10

MPN
5SL6010-7KL
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SL6010-7KL?

miniature circuit breaker 230 V, 6 kA, 1+N-pole/1 MW, N left, C10

Specifications

Model

product brand nameSENTRON
product designationMiniature circuit breaker
design of the productMiniature circuit breaker compact

General technical data

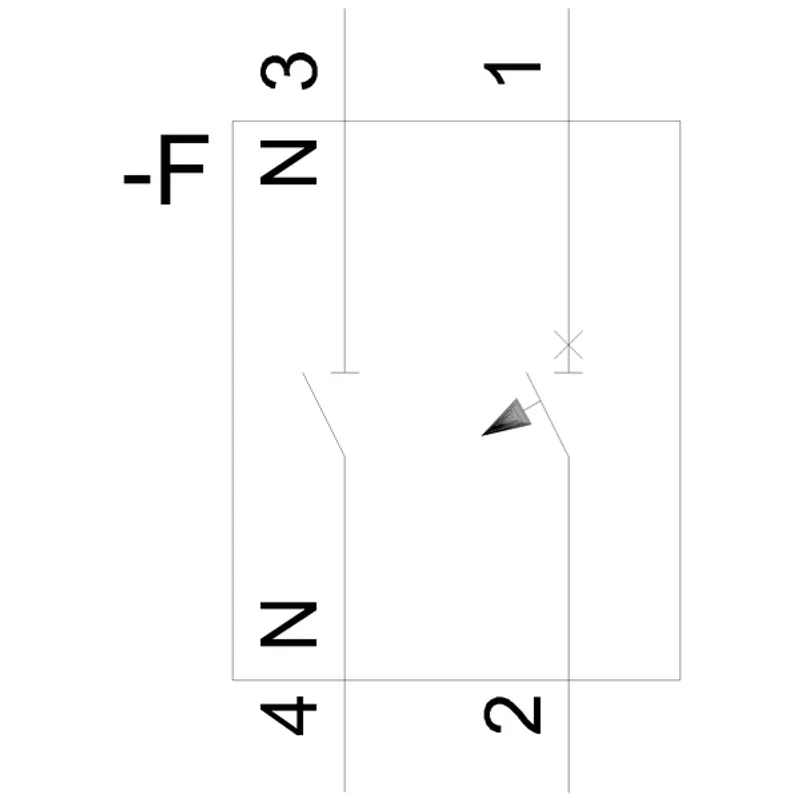

design of pole1P+N
tripping characteristic classC
mechanical service life (operating cycles) typical10 000
overvoltage category3
degree of pollution2

Voltage

type of voltage of the operating voltageAC
insulation voltage (Ui) at AC rated value250 V
operational current — at 30 °C rated value10 A
operational current — at 40 °C rated value9.52 A
operational current — at 50 °C rated value9.01 A
operational current — at 55 °C rated value8.75 A
operational current — at 60 °C rated value8.48 A
operational current at AC rated value10 A

Supply voltage

supply voltage — at AC230 V
supply voltage — at DC rated value60 V
value range of the supply voltage frequency50/60 Hz
operating voltage — minimum24 V
operating voltage — with single-phase operation at AC maximum250 V

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

switching capacity current — according to EN 60898 rated value6 kA
energy limitation class3

Dissipation

power loss [W] for rated value of the current — at AC in hot operating state per pole1.3 W

Suitability

suitability for operationResidential buildings/infrastructure

Product details

product feature touch protectionYes
product component — combined terminal topNo
product component — combined terminal bottomNo
product component — neutral conductor switchingYes
product feature properties for main switches in accordance with EN 60204-1No
product feature halogen-freeYes
product feature sealableYes
product feature silicon-freeYes
product extension installable supplementary devicesYes

Product function

product function — communication functionNo
product function — other measurement functionNo

Connections

connectable conductor cross-section solid — minimum0.75 mm²
connectable conductor cross-section solid — maximum16 mm²
connectable conductor cross-section stranded — minimum0.75 mm²
connectable conductor cross-section stranded — maximum16 mm²
connectable conductor cross-section finely stranded with core end processing — minimum0.75 mm²
connectable conductor cross-section finely stranded with core end processing — maximum10 mm²
tightening torque [lbf·in] with screw-type terminals — minimum10.6 lbf·in
tightening torque [lbf·in] with screw-type terminals — maximum22.1 lbf·in
tightening torque with screw-type terminals — minimum1.2 N·m
tightening torque with screw-type terminals — maximum2 N·m
position of power supply cordAny

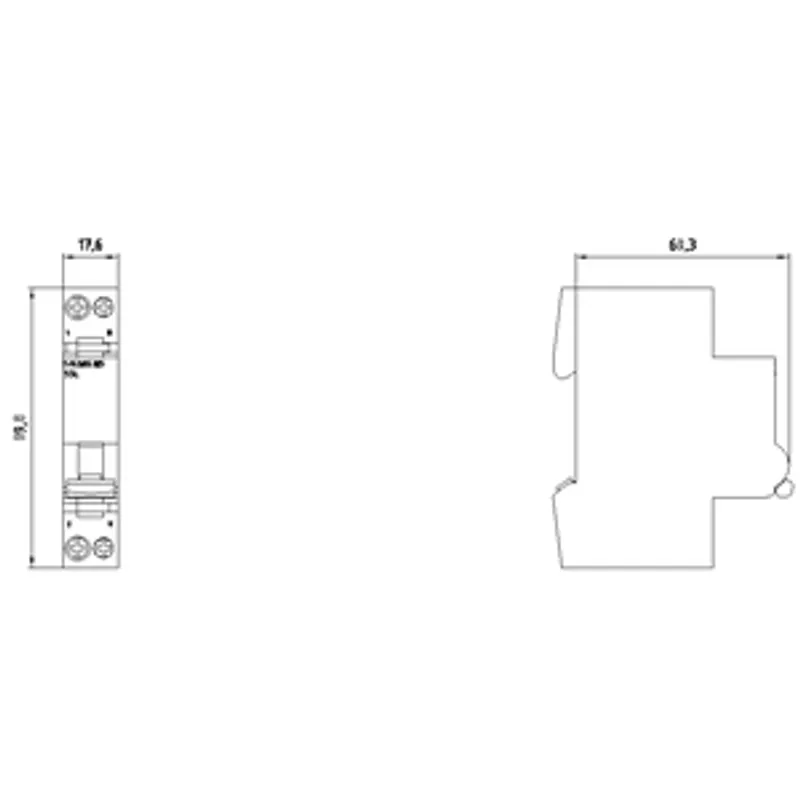

Mechanical Design

height90 mm
width18 mm
depth76 mm
installation depth70 mm
number of modular width units1
fastening methodDIN rail
mounting positionany
Net Weight120 g

Environmental conditions

standardIEC/EN60898-1, GB/T10963.1
vibration resistance according to IEC 60068-2-6Yes
ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum60 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum75 °C
number of test cycles for environmental testing according to IEC 60068-2-306

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SL6010-7KL: frequently asked questions

When can 5SL6010-7KL be shipped?

5SL6010-7KL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SL6010-7KL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SL6010-7KL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SL6010-7KL, subject to availability and destination.
