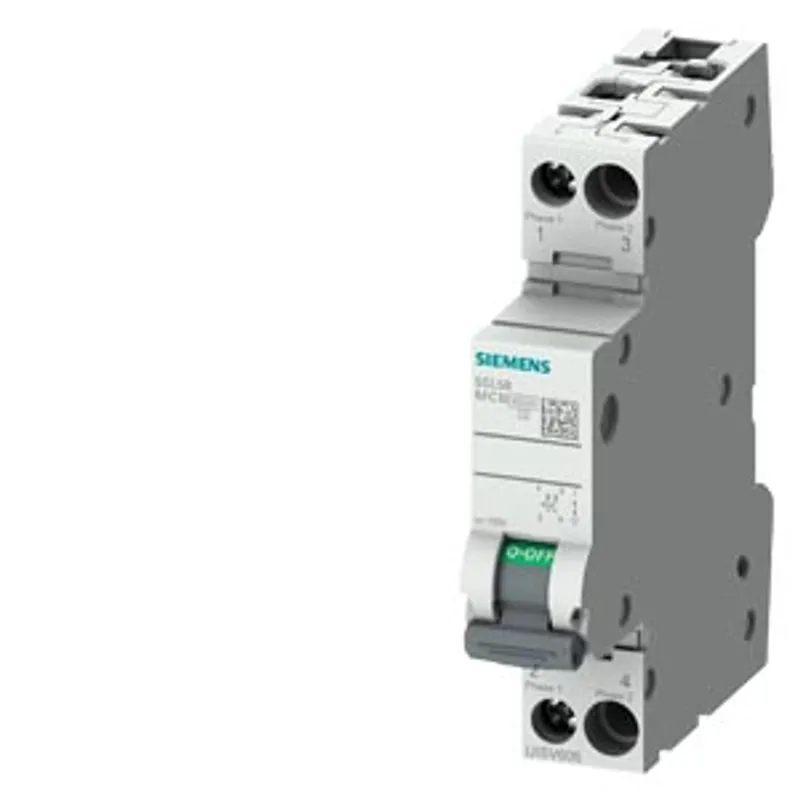

Siemens 5SL5804-7

Miniature circuit breaker 6 kA 110 V DC, 2-pole, width 1 MW (18 mm), switching characteristic C, 4 A

MPN
5SL5804-7
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SL5804-7?

miniature circuit breaker 6 kA 110 V DC, 2-pole, width 1 MW (18 mm), switching characteristic C, 4 A

Specifications

Model

product brand nameSENTRON
product designationMiniature circuit breaker
design of the productMiniature circuit breaker compact

General technical data

design of pole2P
tripping characteristic classC
mechanical service life (operating cycles) typical4 000
overvoltage category3
degree of pollution2

Voltage

type of voltage of the operating voltageDC
operational current — at 30 °C rated value4 A
operational current — at 40 °C rated value3.75 A
operational current — at 50 °C rated value3.48 A
operational current — at 55 °C rated value3.34 A
operational current — at 60 °C rated value3.19 A
operational current at DC rated value4 A

Supply voltage

supply voltage — at DC rated value110 V
operating voltage — minimum24 V

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

switching capacity current — according to EN 60898 rated value6 kA
grid spacing35 mm
energy limitation class3

Dissipation

power loss [W] for rated value of the current — at DC in hot operating state per pole1.4 W

Suitability

suitability for operationresidential buildings/infrastructure/mobility

Product details

product feature touch protectionYes
product component — combined terminal topNo
product component — combined terminal bottomNo
product component — neutral conductor switchingNo
product feature properties for main switches in accordance with EN 60204-1No
product feature halogen-freeYes
product feature sealableYes
product feature silicon-freeYes
product extension installable supplementary devicesYes

Product function

product function — communication functionNo
product function — other measurement functionNo

Connections

connectable conductor cross-section solid — minimum0.75 mm²
connectable conductor cross-section solid — maximum16 mm²
connectable conductor cross-section stranded — minimum0.75 mm²
connectable conductor cross-section stranded — maximum16 mm²
connectable conductor cross-section finely stranded with core end processing — minimum0.75 mm²
connectable conductor cross-section finely stranded with core end processing — maximum10 mm²
tightening torque [lbf·in] with screw-type terminals — minimum10.6 lbf·in
tightening torque [lbf·in] with screw-type terminals — maximum22.1 lbf·in
tightening torque with screw-type terminals — minimum1.2 N·m
tightening torque with screw-type terminals — maximum2 N·m
position of power supply cordAny

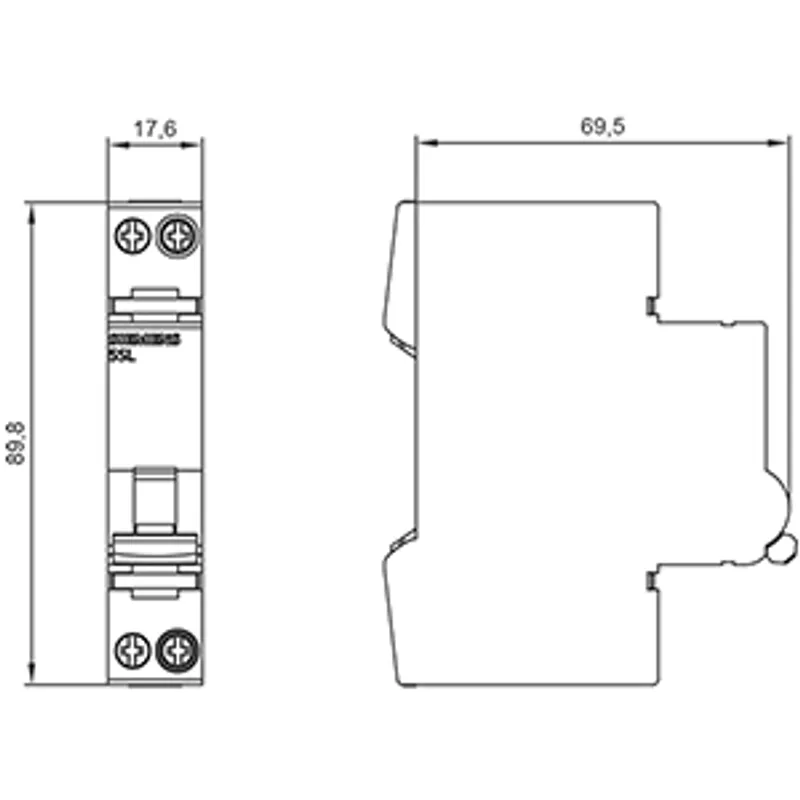

Mechanical Design

height90 mm
width18 mm
depth76 mm
installation depth70 mm
number of modular width units1
fastening methodDIN rail
mounting positionany
Net Weight150 g

Environmental conditions

standardIEC60898-3
vibration resistance according to IEC 60068-2-6Yes
ambient temperature during operation — minimum-40 °C
ambient temperature during operation — maximum70 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum75 °C
number of test cycles for environmental testing according to IEC 60068-2-306
