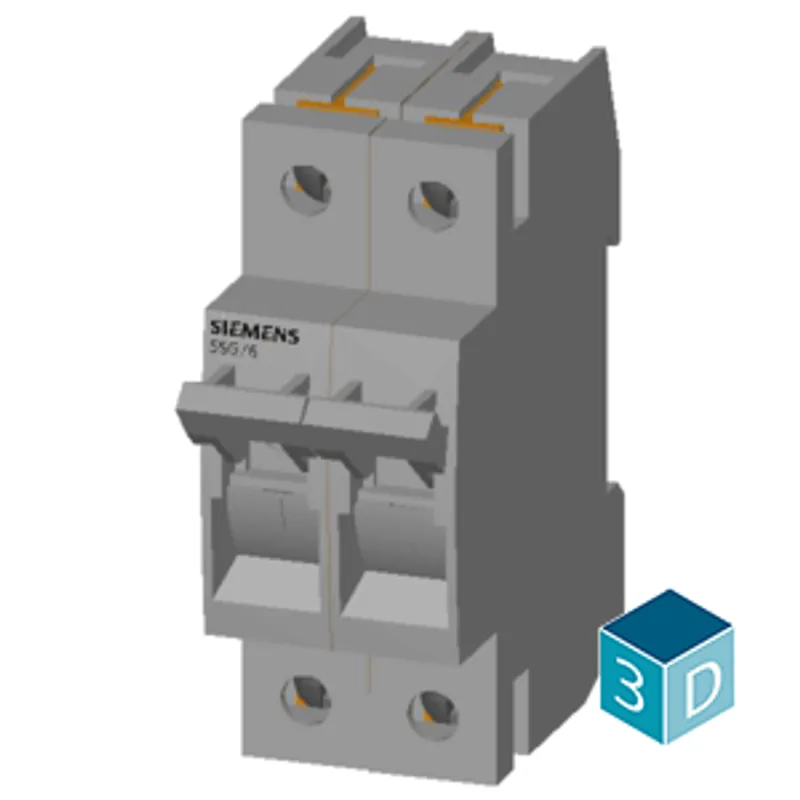

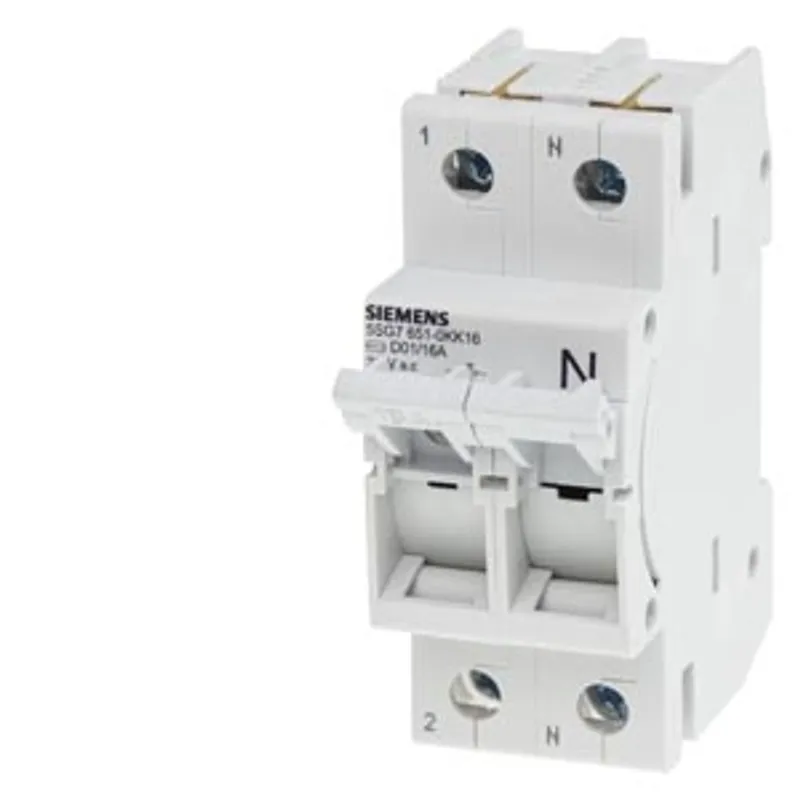

Siemens 5SG7651-0KK16
MINIZED, fuse switch disconnector, D01, 2-pole, 1P+N, In: 16 A, Un AC: 230 V
- MPN
- 5SG7651-0KK16
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5SG7651-0KK16?
MINIZED, fuse switch disconnector, D01, 2-pole, 1P+N, In: 16 A, Un AC: 230 V
Specifications
Model
| product brand name | SENTRON |
| product designation | MINIZED fuse switch disconnector |
General technical data
| number of poles | 2 |
| design of pole | 1P+N |
| size of fuse system according to EN 60269-1 | D01 |
| overvoltage category | 4 |
Voltage
| surge voltage resistance rated value | 6 kV |
Supply voltage
| operating voltage at AC rated value | 230 V |
Protection class
| protection class IP | IP20, with connected conductors |
Dissipation
| power loss [W] — for rated value of the current at AC in hot operating state per pole | 0.2 W |
Product details
| product feature sealable | Yes |
Connections
| tightening torque with screw-type terminals — minimum | 2.5 N·m |
| tightening torque with screw-type terminals — maximum | 3 N·m |

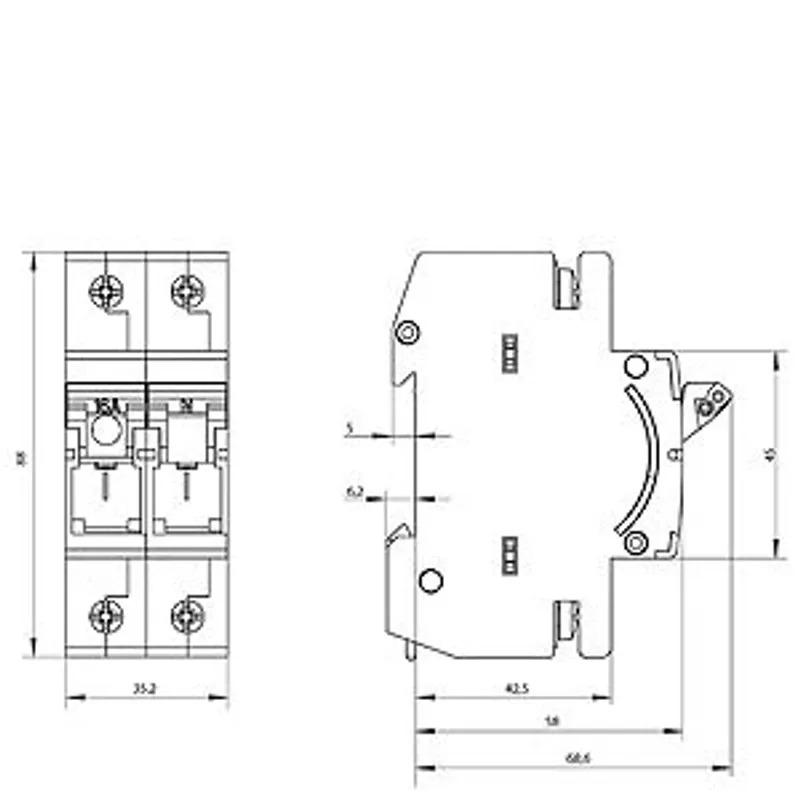

Mechanical Design
| height | 88 mm |
| width | 36 mm |
| depth | 70 mm |
| mounting position | any, preferably vertical |
| Net Weight | 157 g |
No matching specifications
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
5SG7651-0KK16: frequently asked questions
When can 5SG7651-0KK16 be shipped?
5SG7651-0KK16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5SG7651-0KK16 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5SG7651-0KK16 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SG7651-0KK16, subject to availability and destination.
