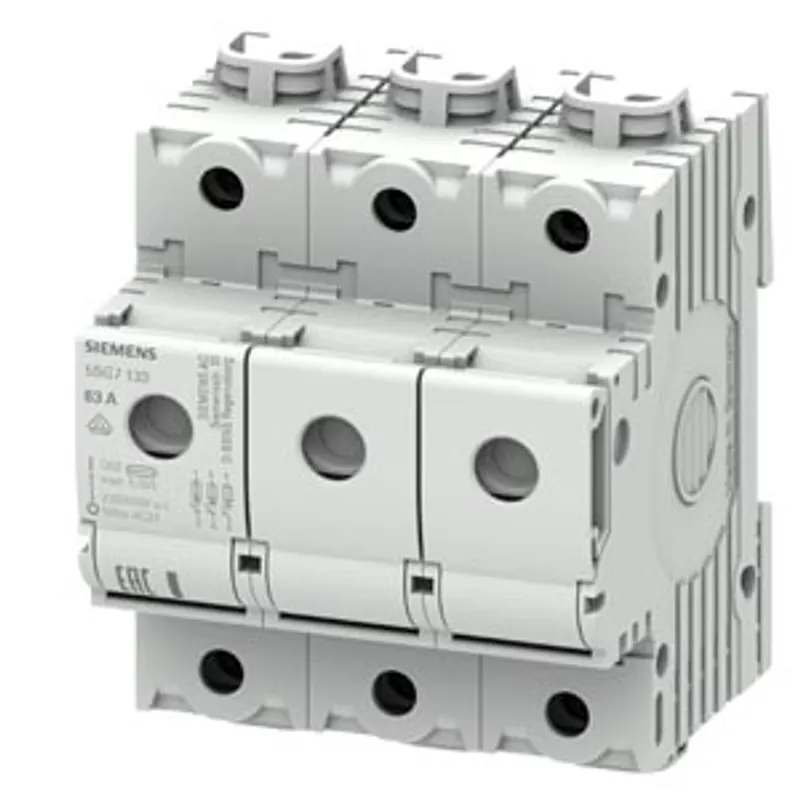

Siemens 5SG7133-8BA25

MINIZED, Switch disconnector with Fuse, D02, 3-pole, In: 25 A, Un AC: 400 V

MPN
5SG7133-8BA25
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SG7133-8BA25?

MINIZED, Switch disconnector with Fuse, D02, 3-pole, In: 25 A, Un AC: 400 V

Specifications

Model

product brand nameSENTRON
product designationMINIZED switch disconnector with fuses

General technical data

number of poles3
size of fuse system according to EN 60269-1D02
overvoltage category4

Voltage

surge voltage resistance rated value6 kV

Supply voltage

operating voltage at AC rated value400 V

Protection class

protection class IPIP20, with connected conductors

Dissipation

power loss [W] — for rated value of the current at AC in hot operating state per pole1.2 W

Product details

product feature sealableYes

Connections

tightening torque with screw-type terminals — minimum2.5 N·m
tightening torque with screw-type terminals — maximum3 N·m

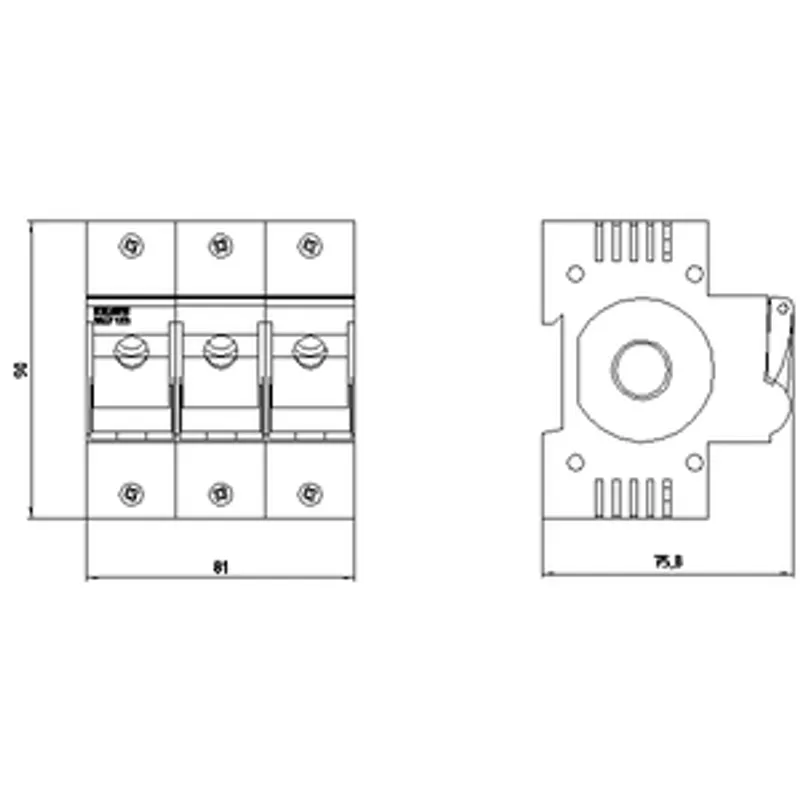

Mechanical Design

height90 mm
width81 mm
depth70 mm
mounting positionany, preferably vertical
Net Weight510 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SG7133-8BA25: frequently asked questions

When can 5SG7133-8BA25 be shipped?

5SG7133-8BA25 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SG7133-8BA25 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SG7133-8BA25 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SG7133-8BA25, subject to availability and destination.
