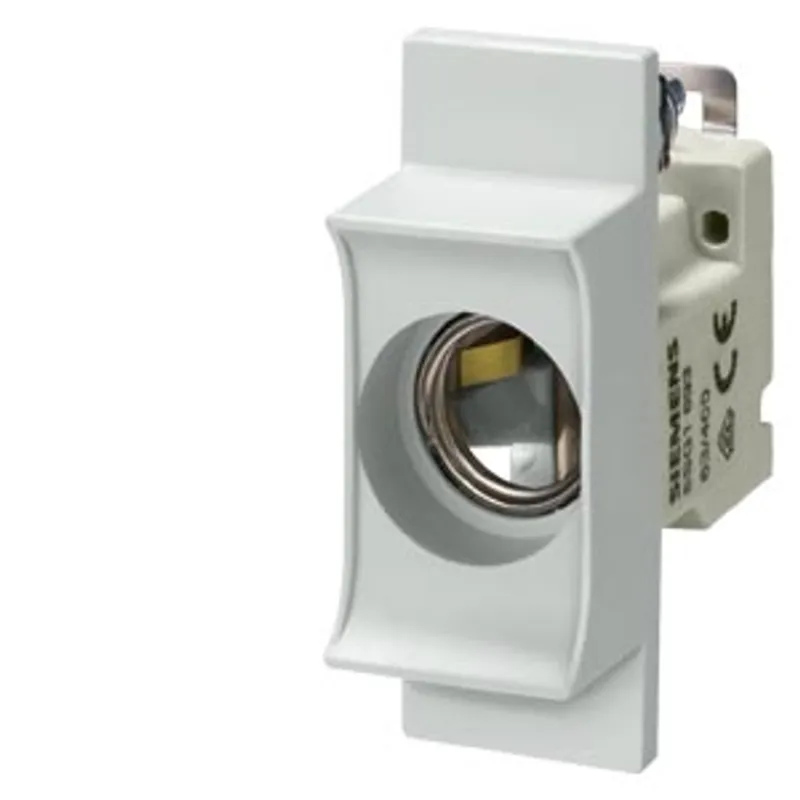

Siemens 5SG1553

NEOZED, fuse base, D01, 1-pole, 16 A, Un AC: 400 V

MPN
5SG1553
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SG1553?

NEOZED, fuse base, D01, 1-pole, 16 A, Un AC: 400 V, Un DC: 250 V incoming terminal: clamp-type terminal outgoing terminal: clamp-type terminal

Specifications

Model

product brand nameSENTRON
product designationNEOZED fuse bases
design of the productNEOZED fuse base installation

General technical data

number of poles1
size of fuse system according to EN 60269-1D01

Supply voltage

operating voltage rated value400 V

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole0.2 W

Main circuit

operational current rated value16 A

Product details

product component coverYes

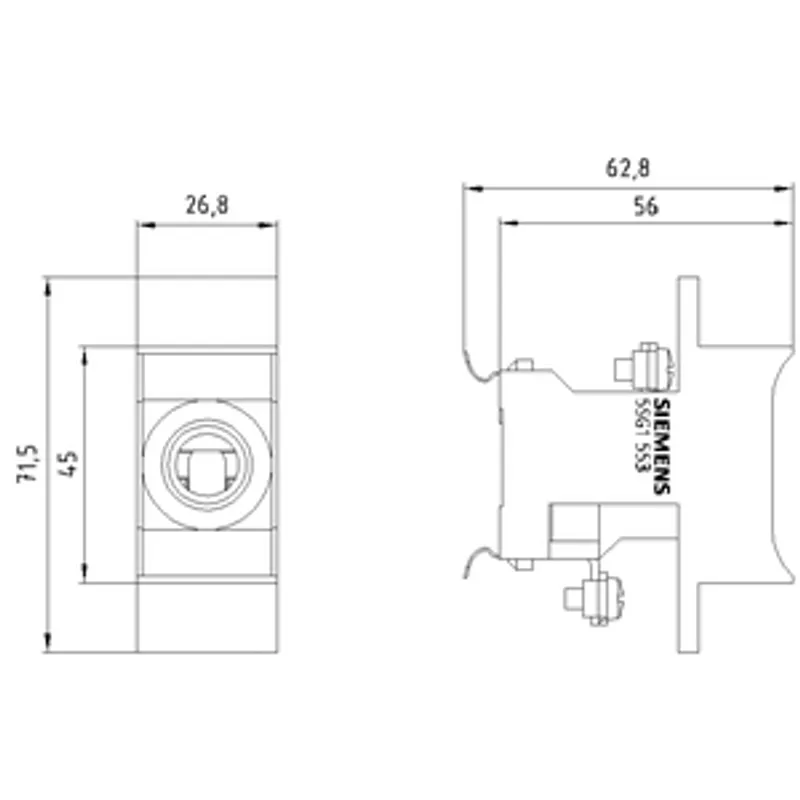

Mechanical Design

height54 mm
width26.8 mm
depth40 mm
fastening methodDIN rail
Net Weight71 g
material of D fuse baseporcelain

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SG1553: frequently asked questions

When can 5SG1553 be shipped?

5SG1553 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SG1553 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SG1553 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SG1553, subject to availability and destination.
