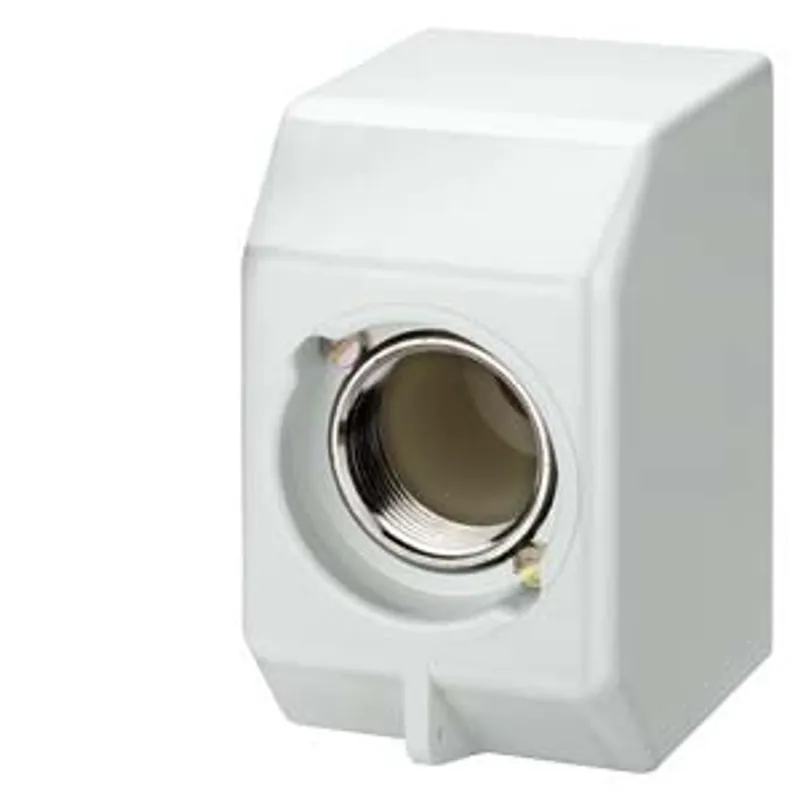

Siemens 5SF4230

DIAZED base DIII 63A E33S 750 V AC/DC for inserts 5SD6 for screw mounting

MPN
5SF4230
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SF4230?

DIAZED base DIII 63A E33S 750 V AC/DC for inserts 5SD6 for screw mounting

Specifications

Model

product brand nameSENTRON
product designationDIAZED fuse base
design of the productDIAZED base
design of the fuse basegauge inset

General technical data

number of poles1
size of fuse system according to EN 60269-1DIII

Supply voltage

supply voltage at AC750 V

Product details

product component coverYes

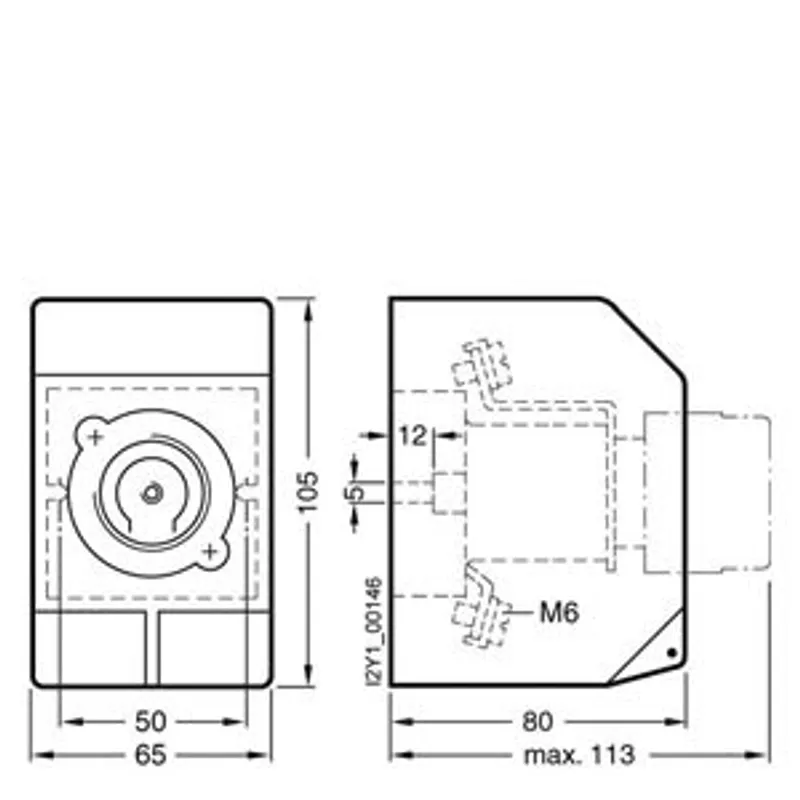

Mechanical Design

height105 mm
width65 mm
depth80 mm
Net Weight519 g
material of the enclosureothers

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SF4230: frequently asked questions

When can 5SF4230 be shipped?

5SF4230 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SF4230 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SF4230 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SF4230, subject to availability and destination.
