Siemens 5SD8004

DIAZED fuse link 690 V for cable and line protection Operating class gG Size DIII, E33, 4 A

MPN
5SD8004
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SD8004?

DIAZED fuse link 690 V for cable and line protection Operating class gG Size DIII, E33, 4 A

Specifications

Model

product brand nameSENTRON
product designationDIAZED fuse link
design of the productFor cable and line protection
design of the fuse linkDIAZED fuse link

General technical data

tripping characteristic classOther
size of fuse system according to EN 60269-1DIII
operating class of the fuse linkgG

Supply voltage

supply voltage — at AC690 V
supply voltage — at DC600 V

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

switching capacity current — at AC according to IEC 60947-2 rated value50 kA
switching capacity current — at DC according to IEC 60947-2 rated value8 kA

Dissipation

power loss [W]1.2 W
power loss [W] for rated value of the current at AC in hot operating state per pole1.2 W

Appearance

color coding of the fuse linkbrown

Product details

product descriptionUsing screw adapter or adapter sleeves

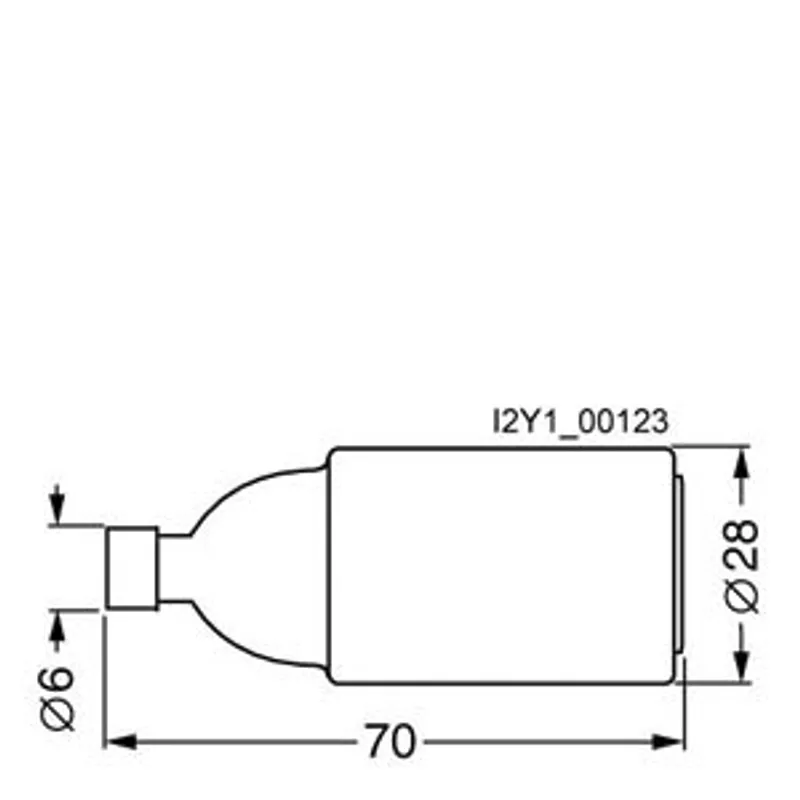

Mechanical Design

mounting positionAny, preferably vertical
Net Weight70 g

Environmental conditions

ambient temperature during operation — minimum-5 °C
ambient temperature during operation — maximum40 °C
environmental categoryUp to 45°C at 95 % rel. humidity
environmental category during storageair humidity 90% at 20°C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SD8004: frequently asked questions

When can 5SD8004 be shipped?

5SD8004 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SD8004 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SD8004 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SD8004, subject to availability and destination.
