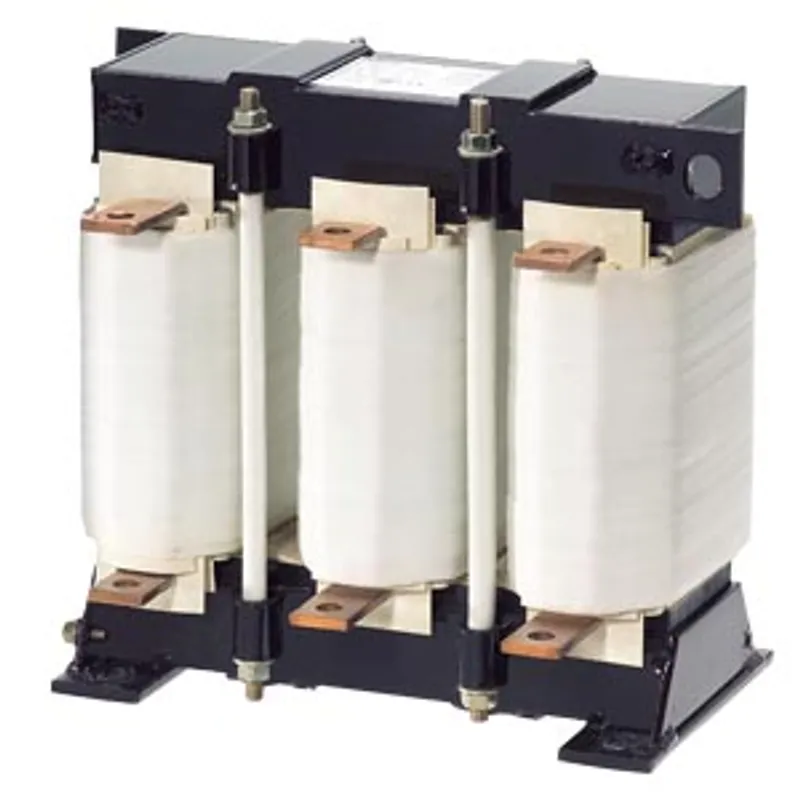

Siemens 4EU2722-1CA00-0AA0
Line commutating reactor for rectifier; phases: 3; Un1(V): 500; Ithmax 1(A) / F1(Hz): 180 /50; I LN (A): 162
- MPN
- 4EU2722-1CA00-0AA0
- Category
- Reactors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 4EU2722-1CA00-0AA0?
line commutating reactor for rectifier; phases: 3; Un1(V): 500; Ithmax 1(A) / F1(Hz): 180 /50; I LN (A): 162; UK(%): 4; LN(MH): 0.156; temperature rise/insulation class: 40 /H; IP00; connection: flat-type; EN 61558-2-20 >UL/CSA-recognized reactor<
Specifications
General technical data
| product designation | Kommut.-Drossel f. Stromrichter |
| phase number | 3 |
| type of voltage | AC |
| operating voltage rated value | 500 V |
| operating frequency rated value | 50 Hz |
| operational current at AC rated value | 162 A |
| current at AC maximum | 180 A |
| current at DC rated value | 220.5 A |
| peak current | 225 A |
| inductivity rated value | 0.00016 H |
| relative inductive drop in voltage for rated value of the current, voltage and frequency | 4 % |
| power loss [W] of the coil | 174 W |
| power loss [W] of the iron core | 76 W |
Mechanical data
| type of electrical connection for main current circuit | flat connector |
| width | 0.27 m |
| height | 0.248 m |
| depth | 0.187 m |
Ambient conditions
| thermal class according to IEC 60085 | H |
| ambient temperature rated value | 40 °C |
| protection class IP | IP00 |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
4EU2722-1CA00-0AA0: frequently asked questions
When can 4EU2722-1CA00-0AA0 be shipped?
4EU2722-1CA00-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4EU2722-1CA00-0AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4EU2722-1CA00-0AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4EU2722-1CA00-0AA0, subject to availability and destination.
