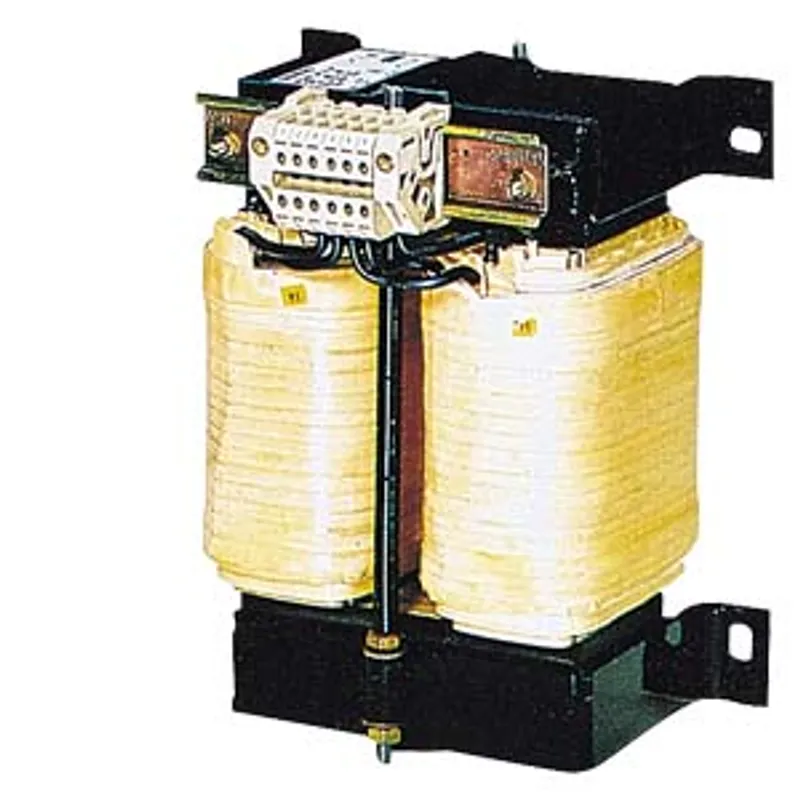

Siemens 4AT3032-8DD40-0FA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 4 /17.8; Upri(V): 550-525-500-480-460- 440-415-400-380-230-208

MPN
4AT3032-8DD40-0FA0
Category
Transformers
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 4AT3032-8DD40-0FA0?

transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 4 /17.8; Upri(V): 550-525-500-480-460- 440-415-400-380-230-208; Usec(V): 2x115; Isec(A): 13.7-27.4; F(Hz): 50...60; vector group/shielding winding: II0 /0; temperature rise/insulation class: 55 /H; IP00; connection: screw connection; mounting: screws; EN 61558-2-1, -2-2, -2-4 >UL/CSA-recognized control transformer<

Specifications

General technical data

product designationtransformer SITAS
product brand nameSIDAC
operating apparent power rated value4 000 VA
efficiency0.95
connection method for transformersIi0
certificate of suitabilityCE / cRUus
product function — temperature monitoringNo
product function — insulation monitoringNo
product function — short-circuit and overload proofNo
number of shielding windings0
short-term vector power17 800 VA
relative short-circuit voltage3.36 %

Inputs

phase number of the inputs1
input voltage — _1 rated value550 V
input voltage — _2 rated value525 V
input voltage — _3 rated value500 V
input voltage — _4 rated value480 V
input voltage — _5 rated value460 V
input voltage — _6 rated value440 V
input voltage — _7 rated value415 V
input voltage — _8 rated value400 V
input voltage — _9 rated value380 V
input voltage — _10 rated value230 V
input voltage — _11 rated value208 V
electrical input frequency — minimum50 Hz
electrical input frequency — maximum60 Hz

Outputs

phase number of the outputs1
output voltage — _1 rated value230 V
output voltage — _2 rated value115 V
electrical output frequency — maximum60 Hz
electrical output frequency — minimum50 Hz

Ambient conditions

thermal class according to IEC 60085H
ambient temperature rated value55 °C
protection class IPIP00

Mechanical data

type of electrical connection — at output for main current circuitscrew-type terminals
type of electrical connection — at input for main current circuitscrew-type terminals
fastening methodscrews
construction form of the iron coreUI 150/75
width0.164 m
height0.27 m
depth0.155 m
