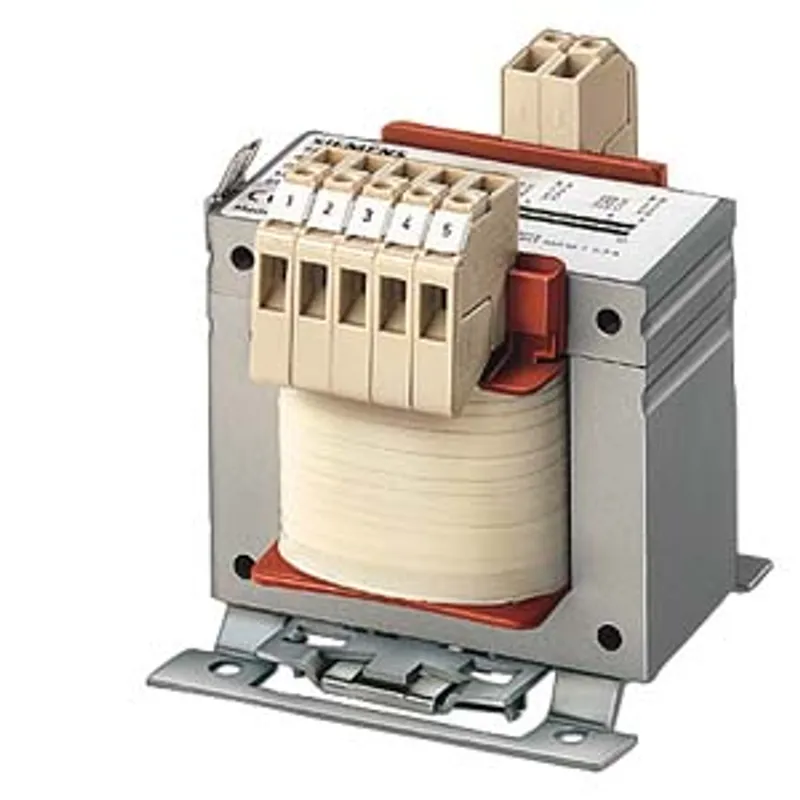

Siemens 4AM6442-8ED40-0FA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 2 /9.7

MPN
4AM6442-8ED40-0FA0
Category
Transformers
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 4AM6442-8ED40-0FA0?

transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 2 /9.7; Upri(V): 600-575-550-525-500- 480-460-440-415-400-240-230; Usec(V): 2x115; Isec(A): 2x8.7; F(Hz): 50...60; vector group/shielding winding: II0 /0; temperature rise/insulation class: 40 /B; IP00; connection: screw/flat-type connection; mounting: screws; EN 61558-2-1, -2-2, -2-4 >UL/CSA-recognized control transformer isolation transformer<

Specifications

General technical data

product designationtransformer SITAS
product brand nameSIDAC
operating apparent power rated value2 000
efficiency0.96
connection method for transformersIi0
certificate of suitabilityCE / cRUus
product function – temperature monitoringNo
product function – insulation monitoringNo
product function – short-circuit and overload proofNo
number of shielding windings0
short-term vector power9 700
relative short-circuit voltage1.9

Inputs

phase number of the inputs1
input voltage – _1 rated value600
input voltage – _2 rated value575
input voltage – _3 rated value550
input voltage – _4 rated value525
input voltage – _5 rated value500
input voltage – _6 rated value480
input voltage – _7 rated value460
input voltage – _8 rated value440
input voltage – _9 rated value415
input voltage – _10 rated value400
input voltage – _11 rated value240
input voltage – _12 rated value230
electrical input frequency – minimum50
electrical input frequency – maximum60

Outputs

phase number of the outputs1
output voltage – _1 rated value230
output voltage – _2 rated value115
electrical output frequency – maximum60
electrical output frequency – minimum50

Ambient conditions

thermal class according to IEC 60085B
ambient temperature rated value40
protection class IPIP00

Mechanical data

type of electrical connection – at output for main current circuitscrew-type terminals / tab terminals
type of electrical connection – at input for main current circuitscrew-type terminals / tab terminals
fastening methodscrews
construction form of the iron coreEI 174/102
width0.176
height0.164
depth0.158
