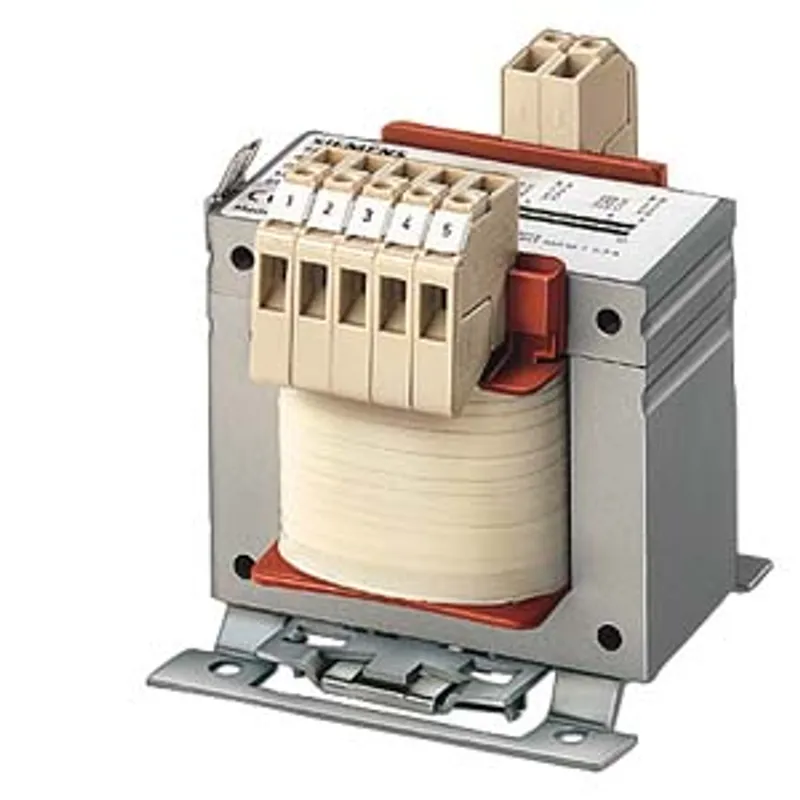

Siemens 4AM5242-5AV00-0EA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.63 /2.35; Upri(V): 400+/-5%; Usec(V): 42; Isec(A): 15

MPN
4AM5242-5AV00-0EA0
Category
Transformers
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 4AM5242-5AV00-0EA0?

transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.63 /2.35; Upri(V): 400+/-5%; Usec(V): 42; Isec(A): 15; F(Hz): 50...60; vector group/shielding winding: II0 /0; temperature rise/insulation class: 40 /B; IP00; connection: screw/flat-type connection; mounting: screws; EN 61558-2-2, -2-6 >UL/CSA-recognized control transformer safety transformer<

Specifications

General technical data

product designationtransformer SITAS
product brand nameSIDAC
operating apparent power rated value630
efficiency0.92
connection method for transformersIi0
certificate of suitabilityCE / cRUus
product function – temperature monitoringNo
product function – insulation monitoringNo
product function – short-circuit and overload proofNo
number of shielding windings0
short-term vector power2 350
relative short-circuit voltage3.21

Inputs

phase number of the inputs1
input voltage – _1 rated value420
input voltage – _2 rated value400
input voltage – _3 rated value380
electrical input frequency – minimum50
electrical input frequency – maximum60

Outputs

phase number of the outputs1
output voltage – _1 rated value42
electrical output frequency – maximum60
electrical output frequency – minimum50

Ambient conditions

thermal class according to IEC 60085B
ambient temperature rated value40
protection class IPIP00

Mechanical data

type of electrical connection – at output for main current circuitscrew-type terminals / tab terminals
type of electrical connection – at input for main current circuitscrew-type terminals / tab terminals
fastening methodscrews
construction form of the iron coreEI 150/48
width0.152
height0.144
depth0.11

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

4AM5242-5AV00-0EA0: frequently asked questions

When can 4AM5242-5AV00-0EA0 be shipped?

4AM5242-5AV00-0EA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4AM5242-5AV00-0EA0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4AM5242-5AV00-0EA0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4AM5242-5AV00-0EA0, subject to availability and destination.
