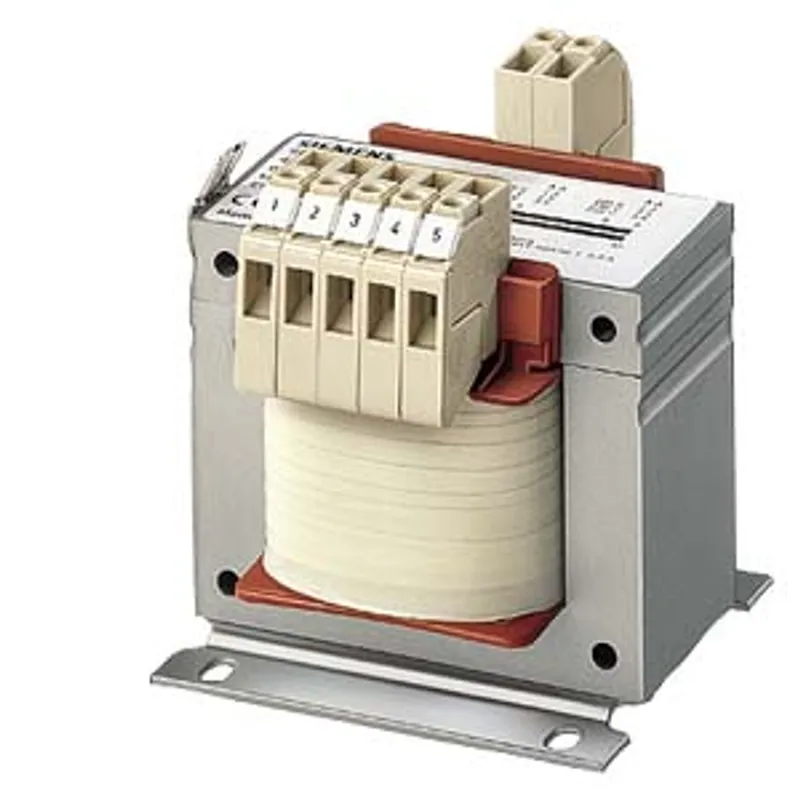

Siemens 4AM4642-5AT10-0FB1

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.4 /1.44; Upri(V): 400+/-5%; Usec(V): 230; Isec(A): 1.739

MPN
4AM4642-5AT10-0FB1
Category
Transformers
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 4AM4642-5AT10-0FB1?

transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.4 /1.44; Upri(V): 400+/-5%; Usec(V): 230; Isec(A): 1.739; F(Hz): 50...60; vector group/shielding winding: II0 /0; temperature rise/insulation class: 40 /B; IP00; connection: cage-clamp; mounting: DIN rail; EN 61558-2-1, -2-2, -2-4 >UL/CSA-recognized control transformer isolation transformer<

Specifications

General technical data

product designationtransformer SITAS
product brand nameSIDAC
operating apparent power rated value400 V·A
efficiency0.91
connection method for transformersIi0
certificate of suitabilityCE / cRUus
product function — temperature monitoringNo
product function — insulation monitoringNo
product function — short-circuit and overload proofNo
number of shielding windings0
short-term vector power1 440 V·A
relative short-circuit voltage4.4 %

Inputs

phase number of the inputs1
input voltage — _1 rated value420 V
input voltage — _2 rated value400 V
input voltage — _3 rated value380 V
electrical input frequency — minimum50 Hz
electrical input frequency — maximum60 Hz

Outputs

phase number of the outputs1
output voltage — _1 rated value230 V
electrical output frequency — maximum60 Hz
electrical output frequency — minimum50 Hz

Ambient conditions

thermal class according to IEC 60085B
ambient temperature rated value40 °C
protection class IPIP00

Mechanical data

type of electrical connection — at output for main current circuitCage-Clamp terminals
type of electrical connection — at input for main current circuitCage Clamp terminals
fastening methodDIN rail
construction form of the iron coreEI 120/52
width0.122 m
height0.121 m
depth0.114 m
