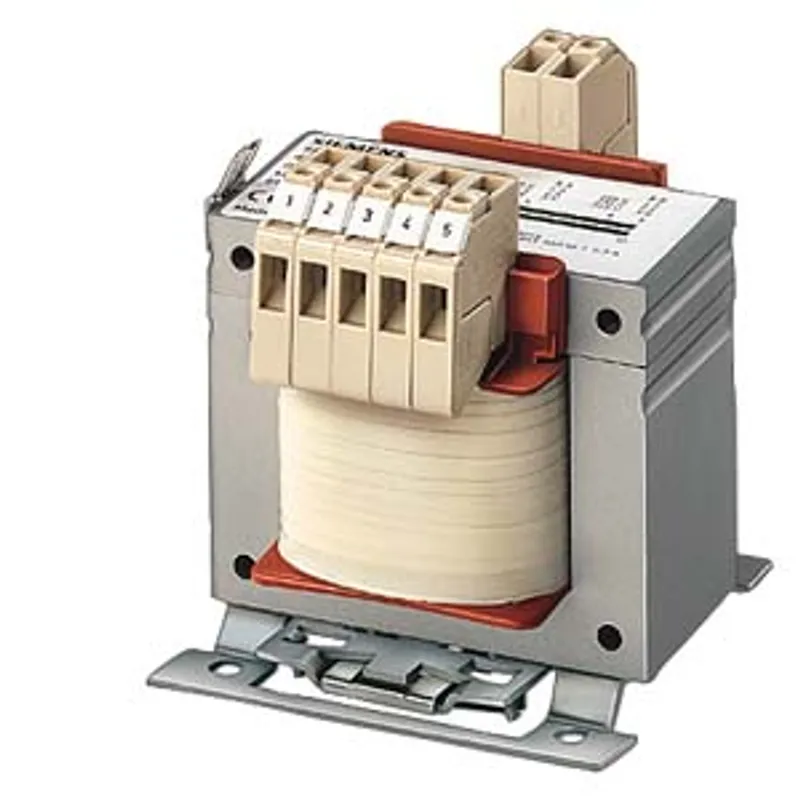

Siemens 4AM4042-5AT10-0FD0 – Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.2 /0.85
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Transformers |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 714 kg |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 4AM4042-5AT10-0FD0 be shipped?
4AM4042-5AT10-0FD0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4AM4042-5AT10-0FD0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4AM4042-5AT10-0FD0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4AM4042-5AT10-0FD0, subject to availability and destination.
transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.2 /0.85; Upri(V): 400+/-5%; Usec(V): 230; Isec(A): 0.87; F(Hz): 50...60; vector group/shielding winding: II0 /0; temperature rise/insulation class: 40 /B; IP54; connection: screw/flat-type connection; mounting: screws; EN 61558-2-1, -2-2, -2-4 >UL/CSA-recognized control transformer isolation transformer<
Specifications
General technical data
| product designation | transformer SITAS |
| product brand name | SIDAC |
| operating apparent power rated value | 200 |
| efficiency | 0.89 |
| connection method for transformers | Ii0 |
| certificate of suitability | CE / cRUus |
| product function – temperature monitoring | No |
| product function – insulation monitoring | No |
| product function – short-circuit and overload proof | No |
| number of shielding windings | 0 |
| short-term vector power | 850 |
| relative short-circuit voltage | 4.93 |
Inputs
| phase number of the inputs | 1 |
| input voltage – _1 rated value | 420 |
| input voltage – _2 rated value | 400 |
| input voltage – _3 rated value | 380 |
| electrical input frequency – minimum | 50 |
| electrical input frequency – maximum | 60 |
Outputs
| phase number of the outputs | 1 |
| output voltage – _1 rated value | 230 |
| electrical output frequency – maximum | 60 |
| electrical output frequency – minimum | 50 |
Ambient conditions
| thermal class according to IEC 60085 | B |
| ambient temperature rated value | 40 |
| protection class IP | IP54 |
Mechanical data
| type of electrical connection – at output for main current circuit | screw-type terminals / tab terminals |
| type of electrical connection – at input for main current circuit | screw-type terminals / tab terminals |
| fastening method | screws |
| construction form of the iron core | EI 96/58 |
| width | 0.244 |
| height | 0.245 |
| depth | 0.23 |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet 4AM4042-5AT10-0FD0 |
