Siemens 3WA3216-5.L71-....

Name: Siemens 3WA3216-5.L71-....
Brand: Siemens
SKU: 3WA3216-5.L71-....

MPN: 3WA3216-5.L71-.... · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	3WA3 Air Circuit Breakers/Non-Aut. Air Circ. Br. up to 5000 A (AC), UL/IEC
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	169 kg

Shipping & availability

When can 3WA3216-5.L71-.... be shipped?

3WA3216-5.L71-.... is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3WA3216-5.L71-.... in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3WA3216-5.L71-.... and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3WA3216-5.L71-...., subject to availability and destination.

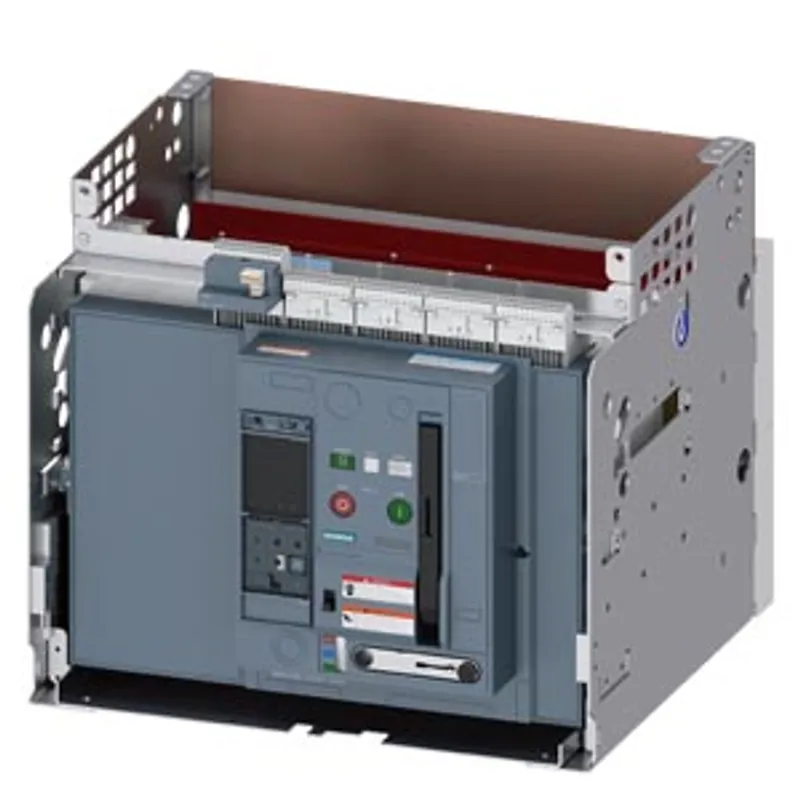

draw-out circuit breaker, with guide frame, UL1066/IEC60947-2, FS 2, 4-pole, N pole on left, In=1600 A up to 635 V AC 50/60 Hz, breaking capacity H, 100/85kA at 508/635V AC, ETU600 LSIG Hi-Z electronic trip unit, upgradeable, color display, Bluetooth, USB interface, basic protection LT, ST, INST, GFs, with GF high-impedance input, incl. protection of the N conductor, (internal N transformer available), trip alarm switch (1 x CO), connection at rear vertical guide frame with shutter and position signaling switch (3 x CO)
