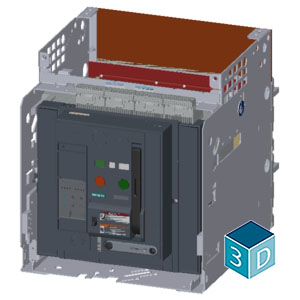

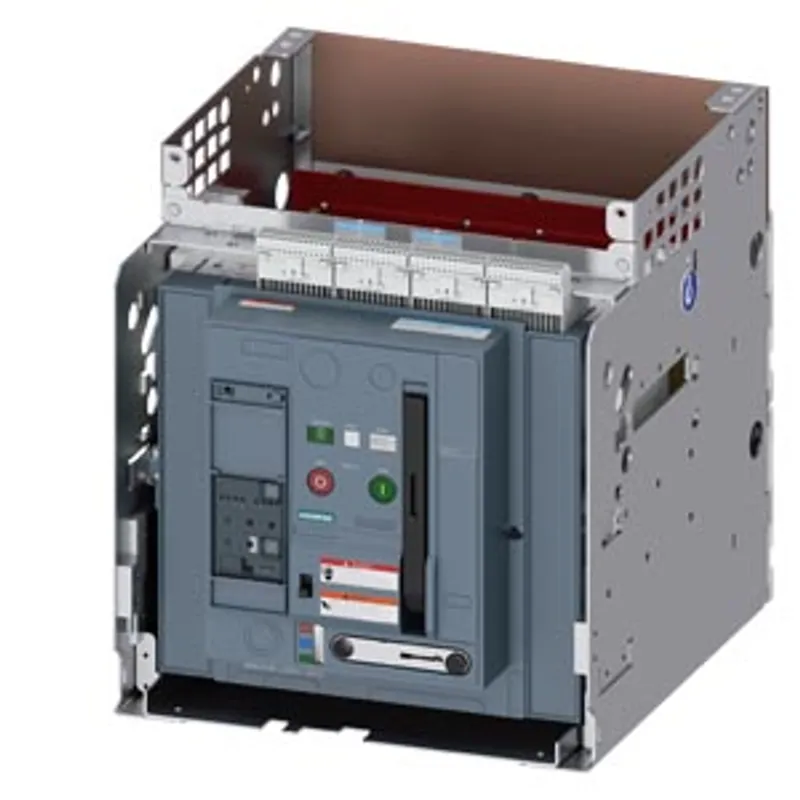

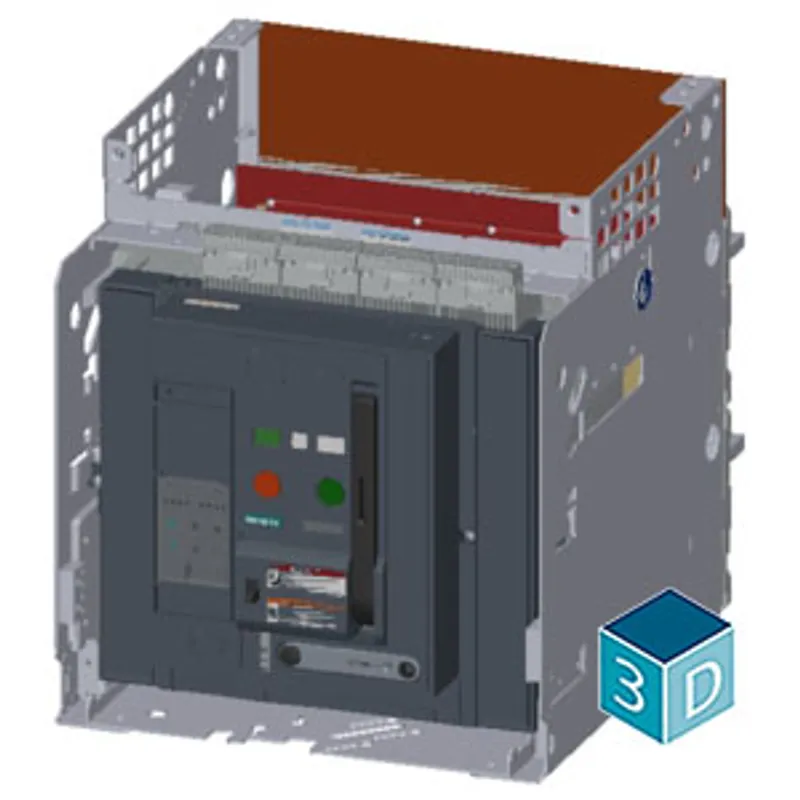

Siemens 3WA3212-2.B32-.... – Withdrawable circuit breaker with cradle (Guide Frame)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | 3WA3 Air Circuit Breakers/Non-Aut. Air Circ. Br. up to 5000 A (AC), UL/IEC |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 104.38 kg |
Shipping & availability
When can 3WA3212-2.B32-.... be shipped?
3WA3212-2.B32-.... is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3WA3212-2.B32-.... in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3WA3212-2.B32-.... and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3WA3212-2.B32-...., subject to availability and destination.
Withdrawable circuit breaker with cradle (Guide Frame), UL1066/IEC60947-2, FS 2, 3-poles, In=1200A up to 635V AC 50/60Hz, breaking capacity N, 50/50kA at 508/635V AC, Trip unit ETU300 LSI optimized for standard applica- tions, without display Protection LT, ST, INST, N-protection requires an external N-sensor, incl. trip/bell alarm (1xCO), rear horizontal connection, (with rotatable T-connectors), cradle with shutter,
More Siemens parts

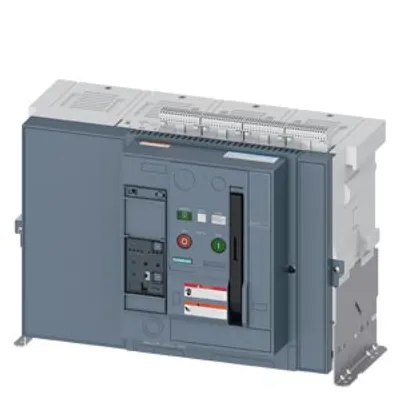

Available on requestSiemens 3WA3212-2.B12-.... – Fixed-mounted circuit breaker, UL1066/IEC60947-2, FS 2
