Siemens 3WA1363-6.C61-.... – Withdrawable circuit breaker with guide frame, IEC 60947-2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | 3WA1 Air Circuit Breakers/Non-Aut. Air Circ. Br. up to 6300 A (AC), IEC |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 181.3 kg |
Shipping & availability
When can 3WA1363-6.C61-.... be shipped?
3WA1363-6.C61-.... is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3WA1363-6.C61-.... in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3WA1363-6.C61-.... and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3WA1363-6.C61-...., subject to availability and destination.

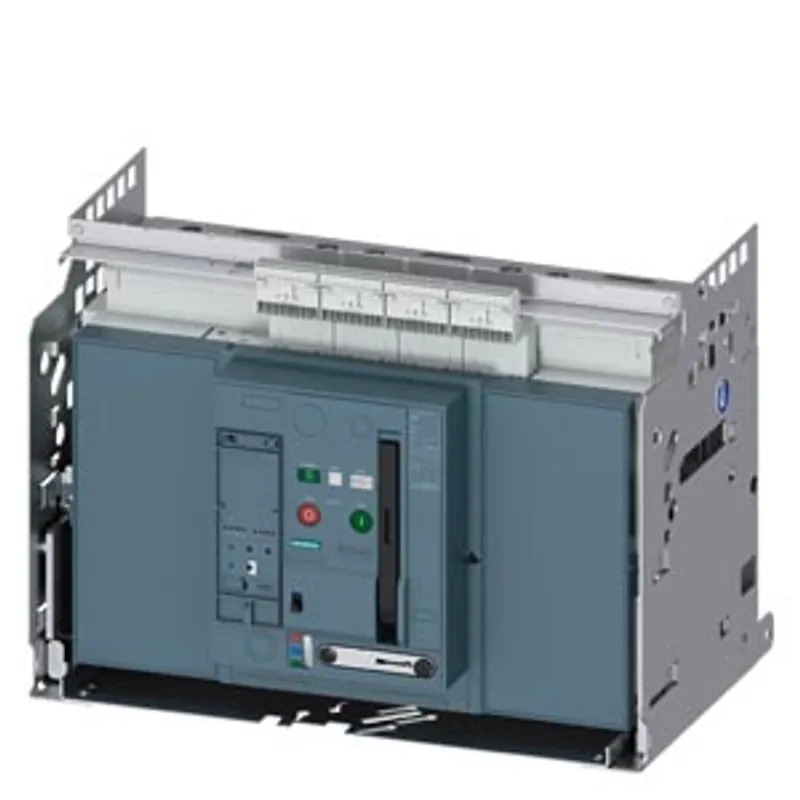

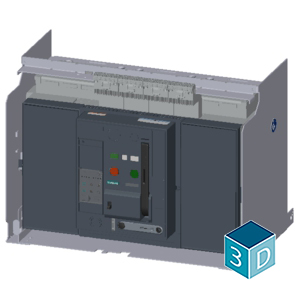

Withdrawable circuit breaker with guide frame, IEC 60947-2, frame size 3, 3-poles, In=6300A up to 690V AC 50/60Hz, breaking capacity C Icu=150kA at 690V, Trip unit ETU300 LSIG optimized for standard applica- tions, without display Protection LT, ST, INST, GF, N-protection required an external N-sensor, incl. trip alarm switch (1xCO), rear connection vertical, guide frame with shutter and position signall. switch (3xW),
