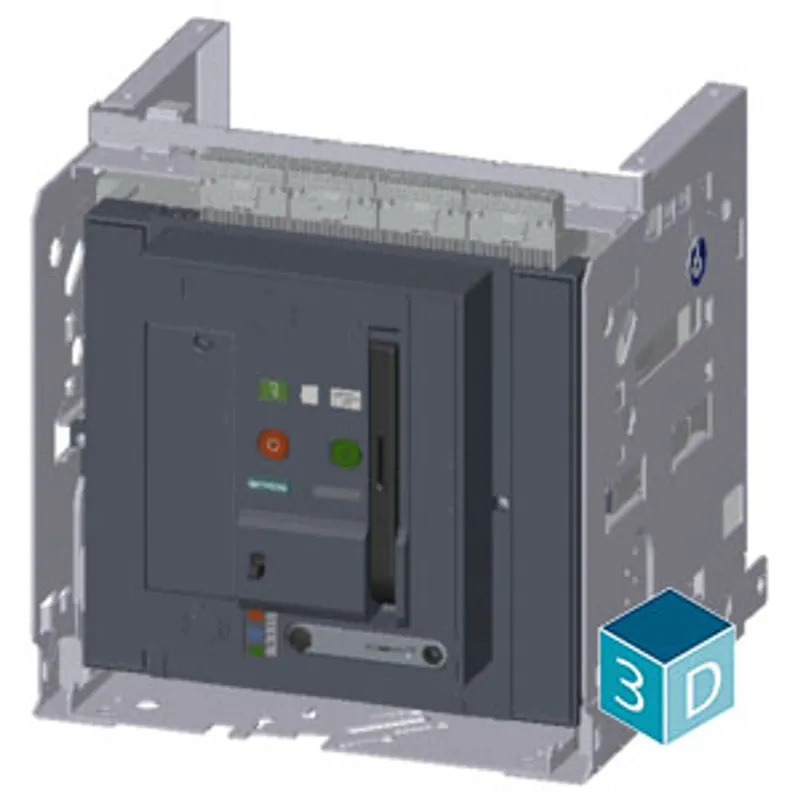

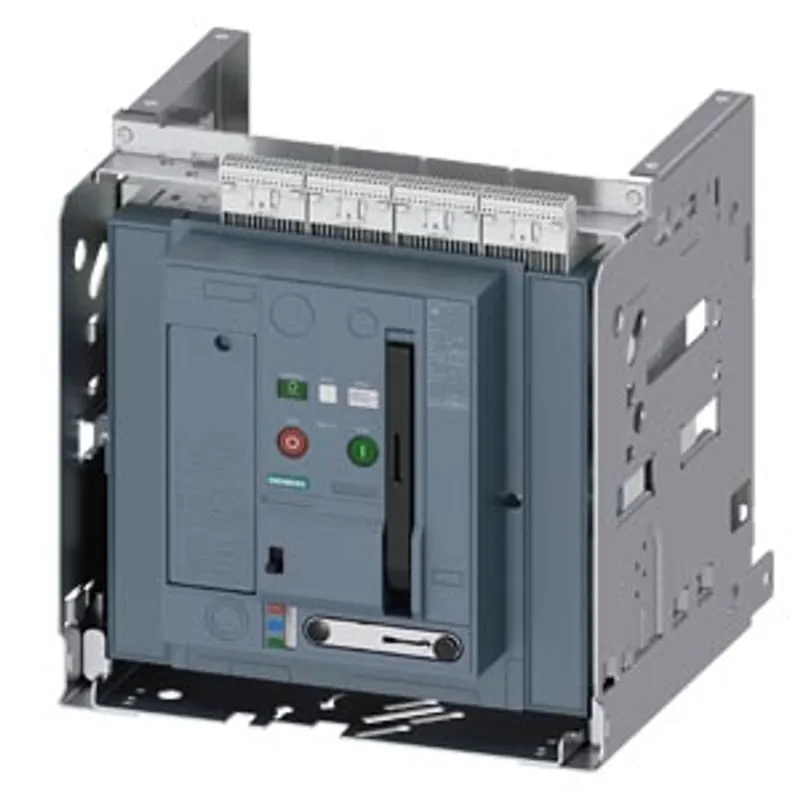

Siemens 3WA1240-1.U62-.... – DC non-automatic ACB withdrawable version, with guide frame
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | 3WA1 Non-Automatic Air Circuit Breakers up to 4000 A (DC), IEC |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 94.6 kg |
Shipping & availability
When can 3WA1240-1.U62-.... be shipped?
3WA1240-1.U62-.... is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3WA1240-1.U62-.... in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3WA1240-1.U62-.... and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3WA1240-1.U62-...., subject to availability and destination.
DC non-automatic ACB withdrawable version, with guide frame, IEC 60947-2, frame size 2, 3-poles, In=4000A to 600V DC, Breaking capacity D Icc=35/30/25kA at 220/300/600V DC, without electr. trip unit ETU, rear connection horizontal, guide frame with shutter and position signall. switch (3xW),
