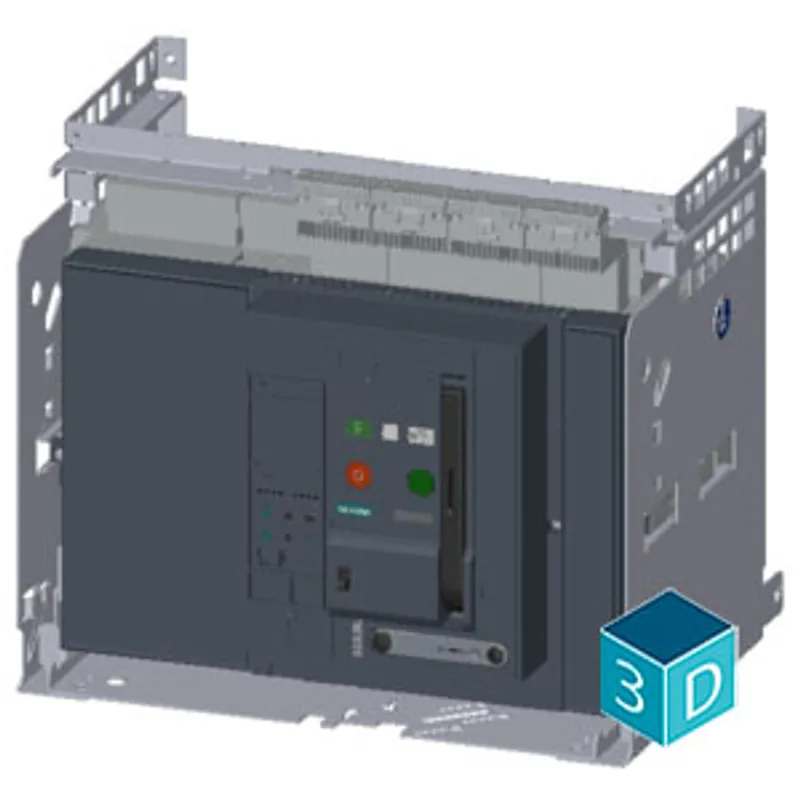

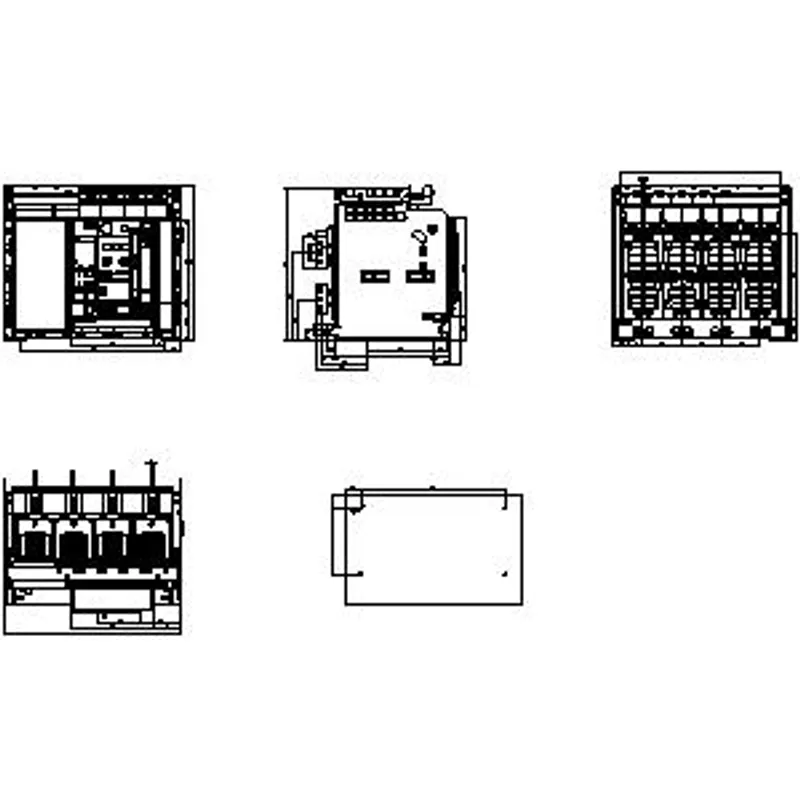

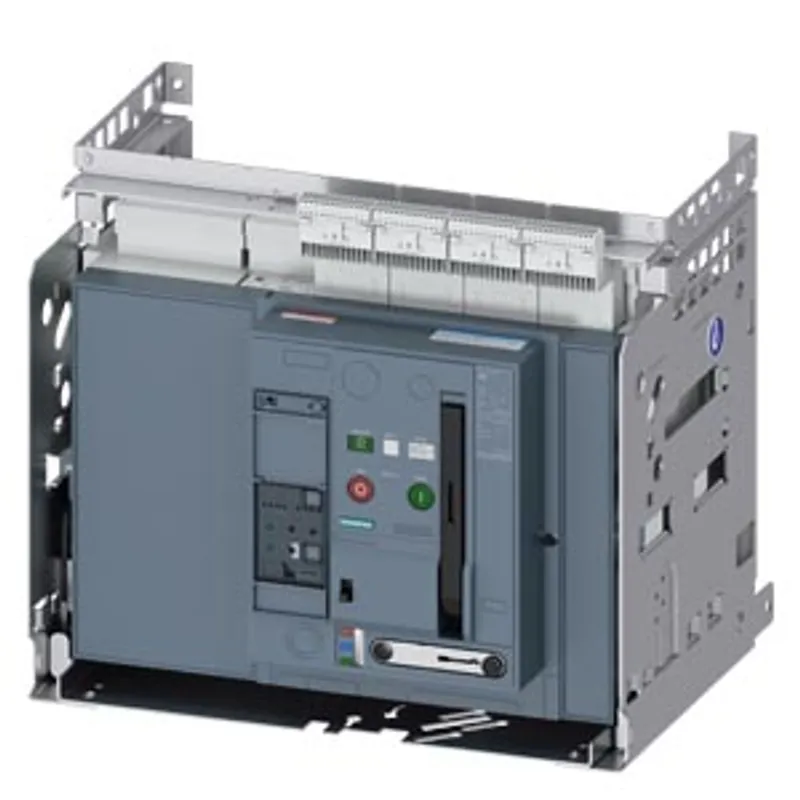

Siemens 3WA1220-8.C71-....

Withdrawable circuit breaker, with guide frame, IEC 60947-2, size 2, 4-pole, N pole on left, In=2000 A

MPN: 3WA1220-8.C71-....
Category: 3WA1 Air Circuit Breakers/Non-Aut. Air Circ. Br. up to 6300 A (AC), IEC

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3WA1220-8.C71-....?

withdrawable circuit breaker, with guide frame, IEC 60947-2, size 2, 4-pole, N pole on left, In=2000 A, breaking capacity E, without internal voltage tap up to 1150 V AC 50/60 Hz, Icu=85/70 kA at 1000/1150 V, ETU300 LSIG electronic trip unit optimized for standard applications, without display, basic protection LT, ST, INST, GF, including protection of the N conductor (internal neutral point sensor available), trip alarm switch (1 x CO), connection at rear vertical, guide frame with shutter and position signaling switch (3x CO),

3WA1220-8.C71-....: frequently asked questions

When can 3WA1220-8.C71-.... be shipped?

3WA1220-8.C71-.... is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3WA1220-8.C71-.... in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3WA1220-8.C71-.... and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3WA1220-8.C71-...., subject to availability and destination.
