Siemens 3WA1120-5.F55-....

Name: Siemens 3WA1120-5.F55-....
Brand: Siemens
SKU: 3WA1120-5.F55-....

MPN: 3WA1120-5.F55-.... · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	3WA1 Air Circuit Breakers/Non-Aut. Air Circ. Br. up to 6300 A (AC), IEC
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	78.11 kg

Shipping & availability

When can 3WA1120-5.F55-.... be shipped?

3WA1120-5.F55-.... is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3WA1120-5.F55-.... in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3WA1120-5.F55-.... and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3WA1120-5.F55-...., subject to availability and destination.

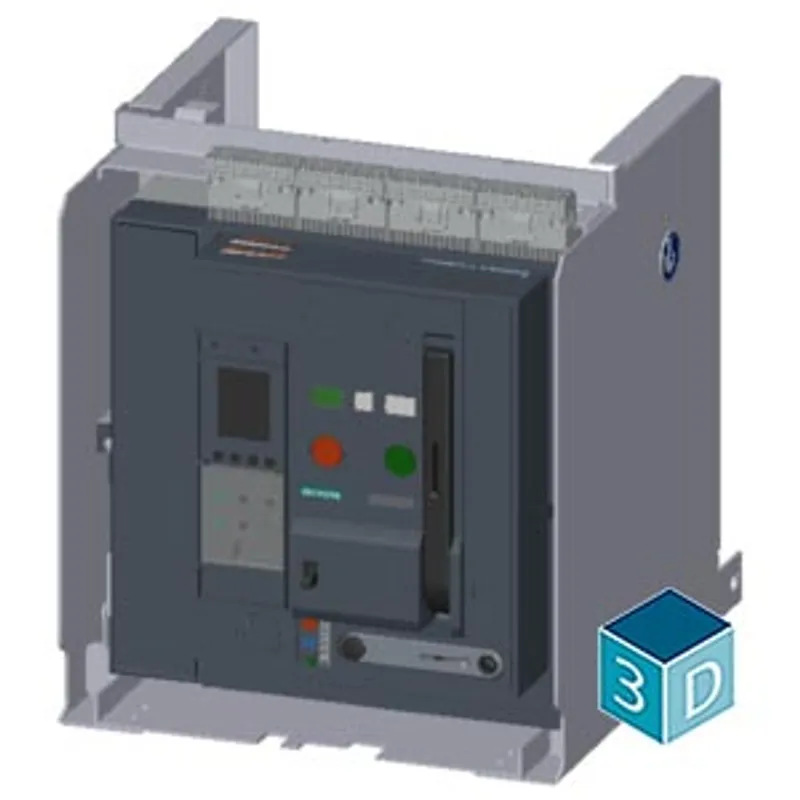

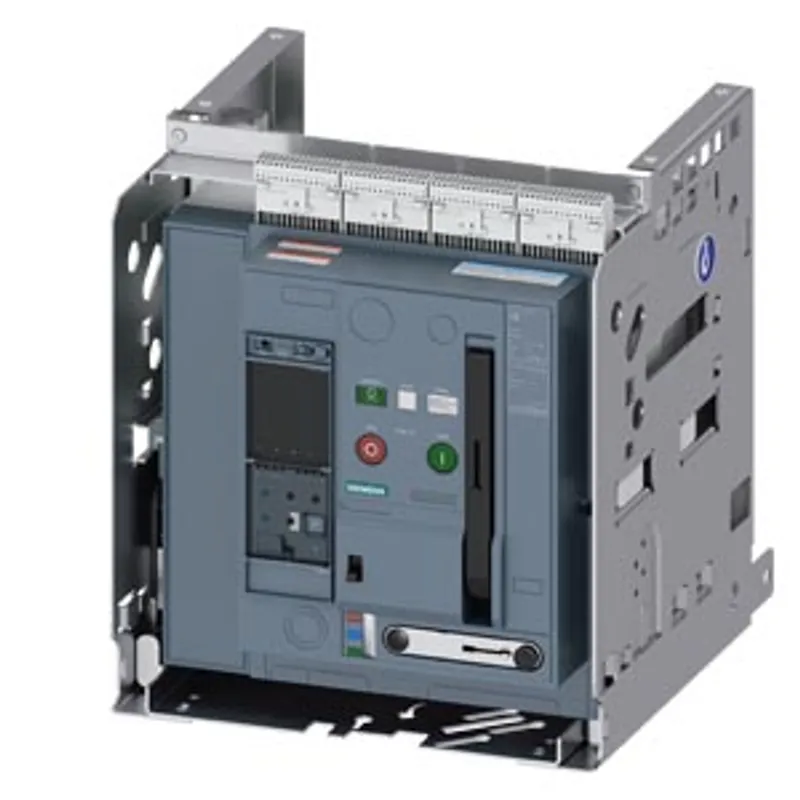

withdrawable circuit breaker, with guide frame, IEC 60947-2, size 1, 4-pole, N pole on right, In=2000 A up to 690 V AC 50/60 Hz, breaking capacity H Icu=100/66 kA at 500/690 V, ETU600 LSIG electronic trip unit upgradeable, color display, Bluetooth, USB interface, basic protection LT, ST, INST, GFx, including protection of the N conductor (internal neutral point sensor available), trip alarm switch (1 x CO), connection at rear, vertical at top, horizontal at bottom guide frame with shutter, without position signaling switch
