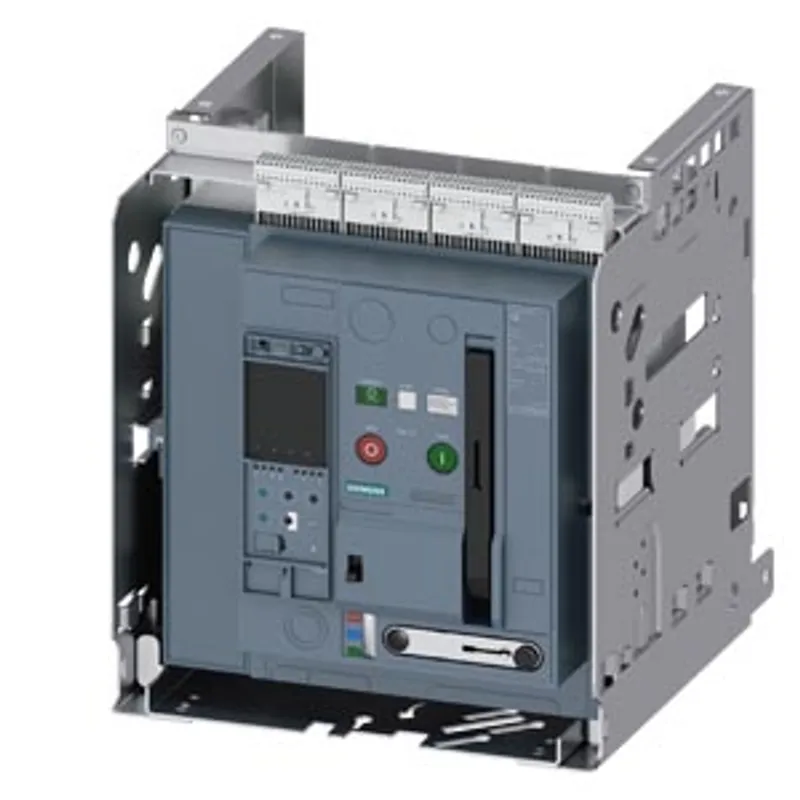

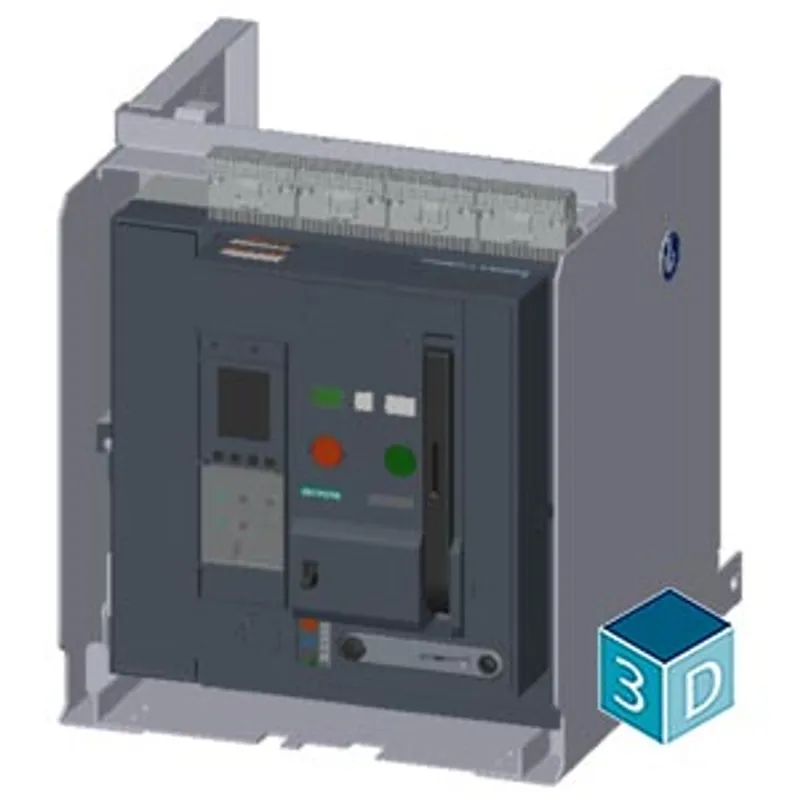

Siemens 3WA1120-5.E77-....

Withdrawable circuit breaker, with guide frame, IEC 60947-2, frame size 1, 4-pole, N pole on left

MPN: 3WA1120-5.E77-....
Category: 3WA1 Air Circuit Breakers/Non-Aut. Air Circ. Br. up to 6300 A (AC), IEC

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3WA1120-5.E77-....?

withdrawable circuit breaker, with guide frame, IEC 60947-2, frame size 1, 4-pole, N pole on left, In=2000 A up to 690 V AC 50/60 Hz, breaking capacity H Icu=100/66 kA at 500/690 V, ETU600 LSI electronic trip unit upgradeable, color display, Bluetooth, USB interface, basic protection LT, ST, INST, including protection of the N conductor (internal neutral point sensor available), trip alarm switch (1x CO), connection at rear, top flange, horizontal at bottom, guide frame with shutter, position signaling switch (3x CO),

3WA1120-5.E77-....: frequently asked questions

When can 3WA1120-5.E77-.... be shipped?

3WA1120-5.E77-.... is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3WA1120-5.E77-.... in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3WA1120-5.E77-.... and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3WA1120-5.E77-...., subject to availability and destination.
