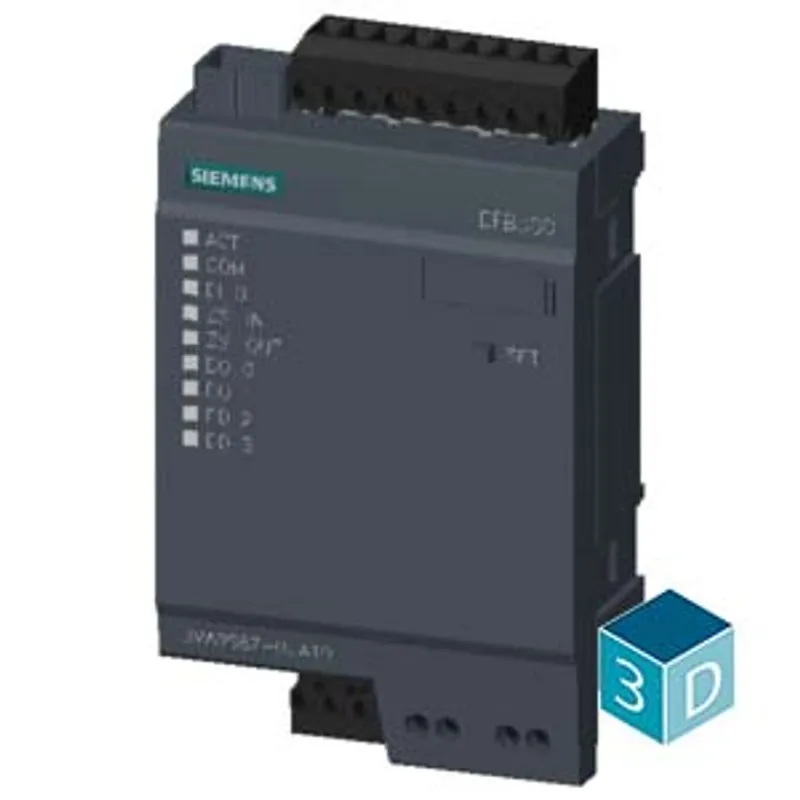

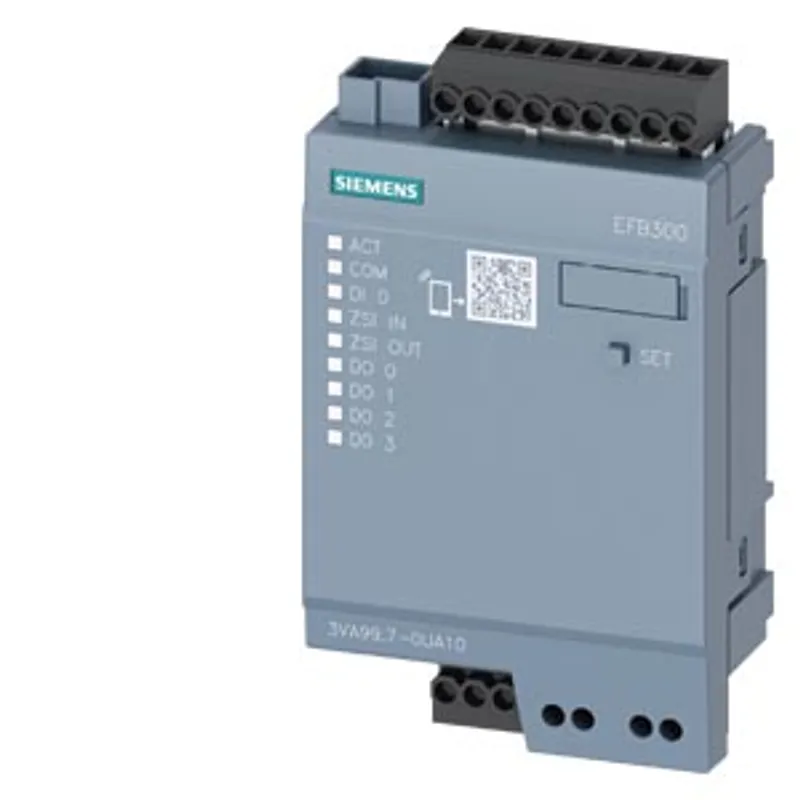

Siemens 3VA9987-0UA10
External function box EFB300 incl. connecting cable 1.5 m 3VA - EFB300 accessory for: 3VA20-26
- MPN
- 3VA9987-0UA10
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9987-0UA10?
external function box EFB300 incl. connecting cable 1.5 m 3VA - EFB300 accessory for: 3VA20-26
Specifications
Model
| product brand name | SENTRON |
| product designation | External function box EFB300 |
| accessories | Digital input and output module |
General technical data
| suitability for operation | Installation in fixed switchboard inside enclosed rooms |
| mounting position | any |
| degree of pollution | 3 |
| protection class IP | IP20 according to IEC60529 |
Voltage
| Rated control supply voltage Us with DC / maximal | 24 V |
Current
| product function — electronic tripping unit power supply | Yes |
| product function — digital input and output module | Yes |
| number of interfaces / of the circuit breaker communication system | 1 |
| number of higher-level circuit breakers / of the ZSI module — at input / maximum connectable | 20 |
| number of higher-level circuit breakers / of the ZSI module — at output / maximum connectable | 8 |
| design of the connecting cable / of the ZSI module | Flexible, shielded (at least 85% overlap), twisted cable, max. capacity: 200 nF/km (conductor/shield), 160 nF/km (conductor/conductor), inductivity 0.65 H/km, total line resistance: max. 28 ohms |
| number of digital inputs | 1 |
| input voltage / at digital input / at DC / rated value | 24 V |
| operating range of digital input | IEC: SELV/ PELV |
| input voltage / at digital input — initial value for signal<1>-recognition | 15 V |
| input voltage / at digital input — full-scale value for signal<0> recognition | 5 V |
| number of relay outputs | 2 |
| voltage / of the output relay — at AC / maximum | 250 V |
| voltage / of the output relay — at DC / maximum | 250 V |
| operational current / of the output relay — at AC / at 250 V / rated value | 6 A |
| operational current / of the output relay — at DC / at 30 V / rated value | 5 A |
| switching capacity current / of the output relay — at AC-12 / at 250 V | 6 A |
| switching capacity current / of the output relay — at AC-15 / at 250 V | 3 A |
| switching capacity current / of the output relay — at DC-12 / at 250 V | 0.2 A |
| switching capacity current / of the output relay — at DC-13 / at 250 V | 0.1 A |
| output current / of the output relay — for signal <1> / initial value | 10 mA |
| output current / of the output relay — for signal <1> / full-scale value | 27 mA |
| output current / of the output relay — for signal <0> / maximum | 0.2 mA |
| design of DIAZED fuse link / for short-circuit protection of auxiliary contacts of output relay | D0 6 A 500 V gL/gG |
| overvoltage category / of the output relay | III (relay) I (other) |
| number of static semiconductor outputs | 2 |
| voltage / of the static semiconductor outputs / at DC / rated value | 24 V |
| voltage / of the static semiconductor outputs / at DC / rated value / note | IEC: SELV/ PELV |
| operational current / of the static semiconductor outputs / at DC / rated value | 100 mA |
| power loss [V∙A] / rated value | 4 VA |
| control supply voltage / at DC / rated value / maximum | 24 V |
| relative symmetrical tolerance / of the operating range of the control feed voltage | 20 % |
| consumed current / maximum | 0.16 A |

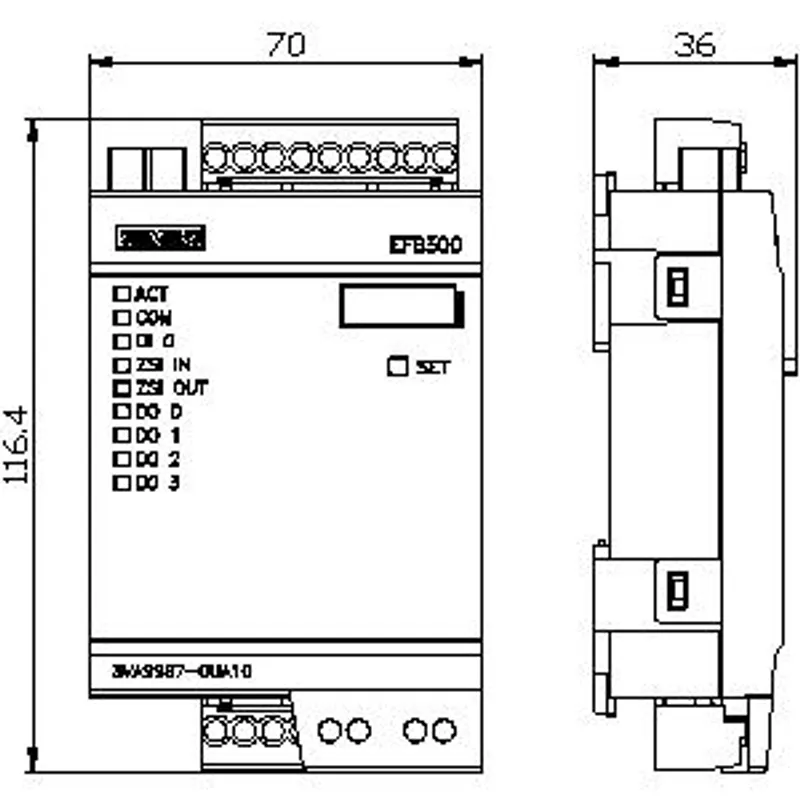

Mechanical Design
| height | 116 mm |
| width | 70 mm |
| depth | 36 mm |
| Net Weight | 242.5 g |

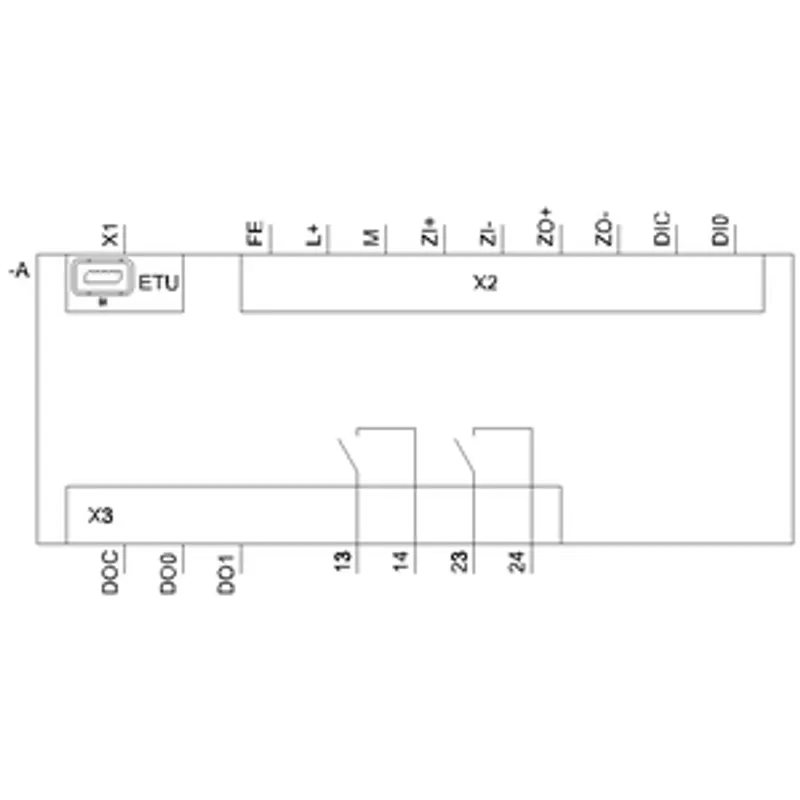

Connections
| type of electrical connection | removable/pluggable |
| type of electrical connection / at the inputs for supply voltage | screw-type terminals |
| connectable conductor cross-section / solid — minimum | 0.5 mm² |
| connectable conductor cross-section / solid — maximum | 2.5 mm² |
| connectable conductor cross-section / finely stranded / with core end processing — minimum | 0.5 mm² |
| connectable conductor cross-section / finely stranded / with core end processing — maximum | 2.5 mm² |
| type of connectable conductor cross-sections / at the digital inputs / for AWG cables / solid | 1x 21 to 14; 2x 21 to 16 |
| tightening torque / with screw-type terminals / minimum | 0.4 N·m |
| tightening torque / with screw-type terminals / maximum | 0.5 N·m |
Environmental conditions
| ambient temperature / during operation — minimum | -25 °C |
| ambient temperature / during operation — maximum | 60 °C |
| ambient temperature / during transport — minimum | -25 °C |
| ambient temperature / during transport — maximum | 80 °C |
| ambient temperature / during storage — minimum | -25 °C |
| ambient temperature / during storage — maximum | 70 °C |
