Siemens

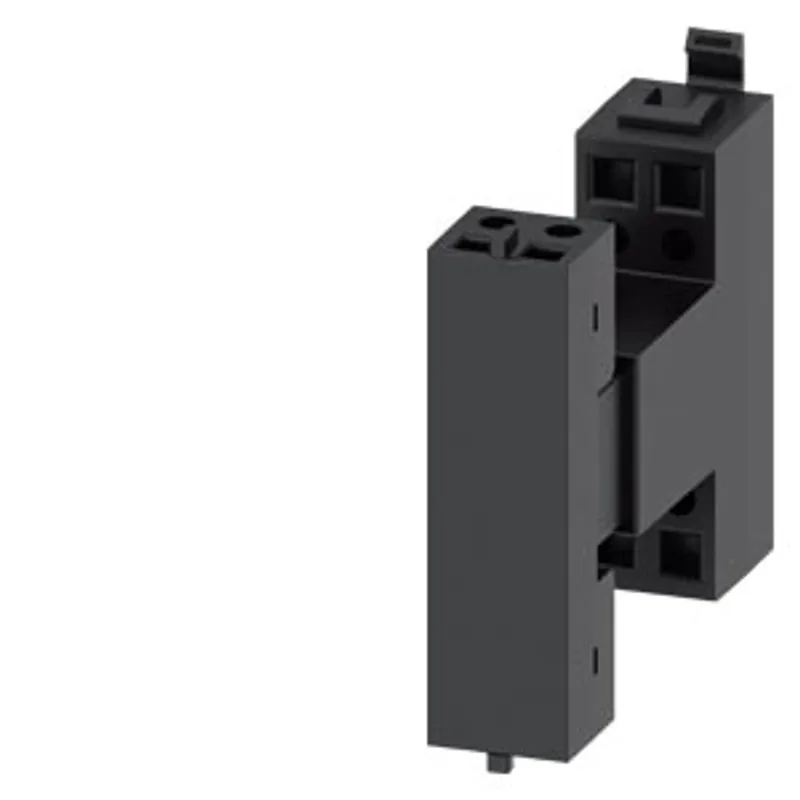

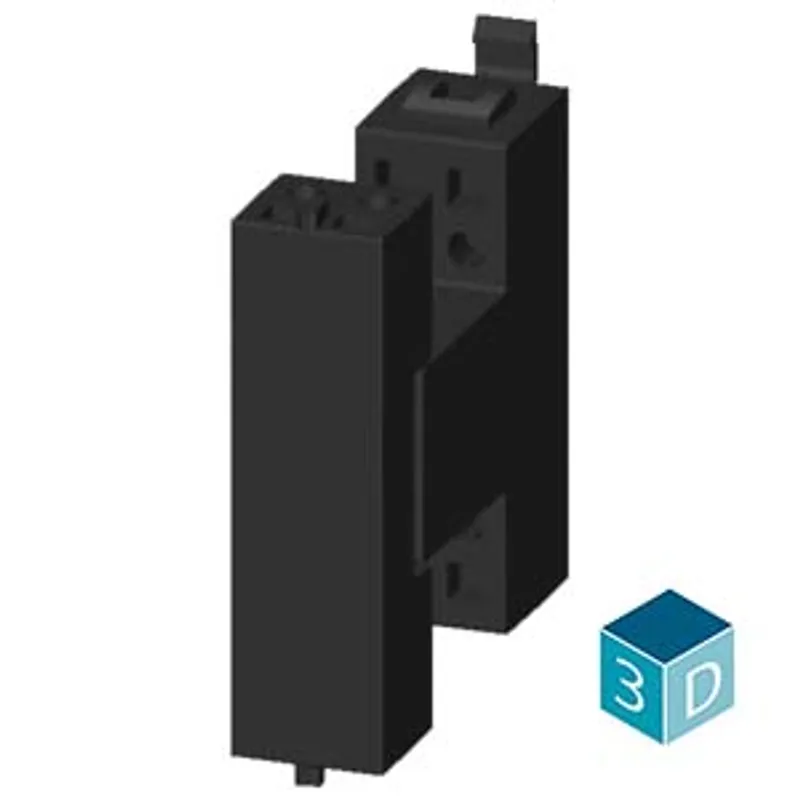

Siemens 3VA9977-0KD80

Auxiliary circuit connector accessory for: all 3VA withdrawable units

MPN: 3VA9977-0KD80
Category: Accessories and Spare Parts

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3VA9977-0KD80?

auxiliary circuit connector accessory for: all 3VA withdrawable units

Specifications

Model

product brand name	SENTRON
product designation	Auxiliary circuit connector
accessories	Auxiliary circuit connector

General technical data

degree of pollution	3
overvoltage category	III

Voltage

surge voltage resistance	4 kV
operating voltage / at AC / according to CSA and UL	500 V
operating voltage / at DC / according to CSA and UL	250 V
operating voltage / at AC / at 50 Hz / rated value / minimum	500 V
operating voltage / at DC / rated value / minimum	250 V

Current

thermal current

10 A

Mechanical Design

height	88 mm
width	15 mm
depth	55 mm
Net Weight	123 g
tightening torque / with screw-type terminals / minimum	0.4 N·m
tightening torque / with screw-type terminals / maximum	0.5 N·m

Connections according IEC

stripped length	15 mm
AWG number / as coded connectable conductor cross section / for auxiliary contacts — minimum	20
AWG number / as coded connectable conductor cross section / for auxiliary contacts — maximum	14

Connetctions according UL

stripped length [in]	0.6 in
tightening torque [lbf·in] / with screw-type terminals / minimum	3.5 lbf·in
tightening torque [lbf·in] / with screw-type terminals / maximum	4.4 lbf·in
ambient temperature / during operation — minimum	-25 °C
ambient temperature / during operation — maximum	70 °C
ambient temperature / during storage — minimum	-40 °C
ambient temperature / during storage — maximum	80 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3VA9977-0KD80PDF

3VA9977-0KD80: frequently asked questions

When can 3VA9977-0KD80 be shipped?

3VA9977-0KD80 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
