Siemens 3VA9908-0BB16
Undervoltage release 250 V DC accessory for: 3VA1 and 3VA20-26
- MPN
- 3VA9908-0BB16
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9908-0BB16?
undervoltage release 250 V DC accessory for: 3VA1 and 3VA20-26
Specifications
Model
| product brand name | SENTRON |
| product designation | Auxiliary release |
| accessories | Auxiliary release |
General technical data
| degree of pollution | 3 |
| overvoltage category | III |
| consumed active power / at DC / maximum | 2.5 W |
Voltage
| surge voltage resistance | 4 kV |

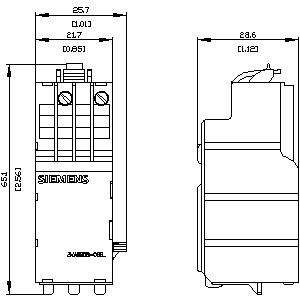

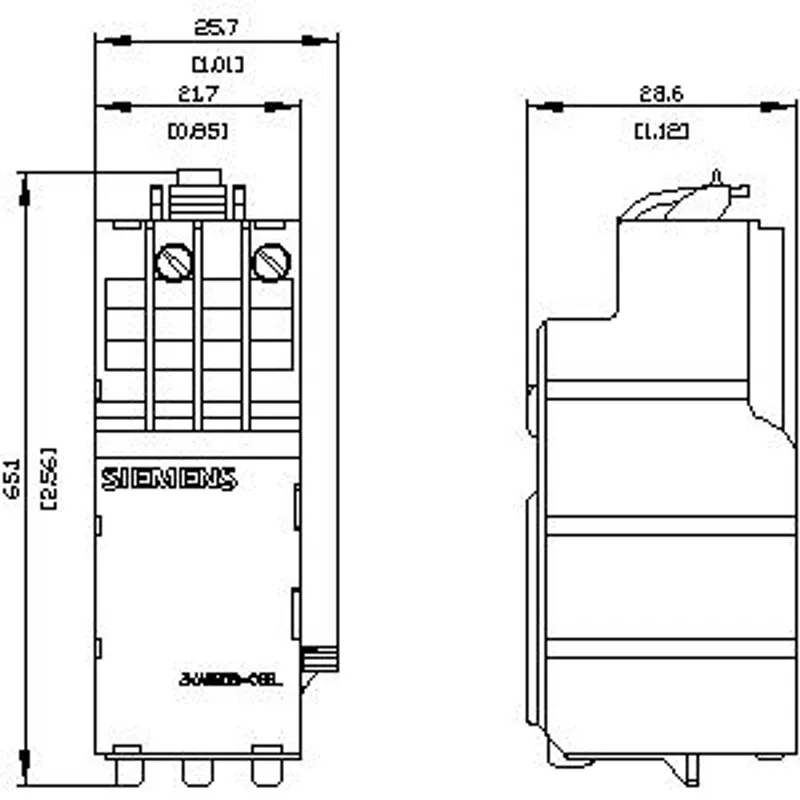

Mechanical Design
| height | 65 mm |
| width | 25.7 mm |
| number of slots | 3 |
| depth | 28.8 mm |
| net weight | 91 g |
| Net Weight | 0.081 kg |
| tightening torque / with screw-type terminals / minimum | 0.4 N·m |
| tightening torque / with screw-type terminals / maximum | 0.5 N·m |
Connections according IEC
| stripped length | 10 mm |
| AWG number / as coded connectable conductor cross section / for auxiliary contacts — minimum | 20 |
| AWG number / as coded connectable conductor cross section / for auxiliary contacts — maximum | 16 |
Connetctions according UL
| stripped length [in] | 0.4 in |
| tightening torque [lbf·in] / with screw-type terminals / minimum | 3.5 lbf·in |
| tightening torque [lbf·in] / with screw-type terminals / maximum | 4.4 lbf·in |
