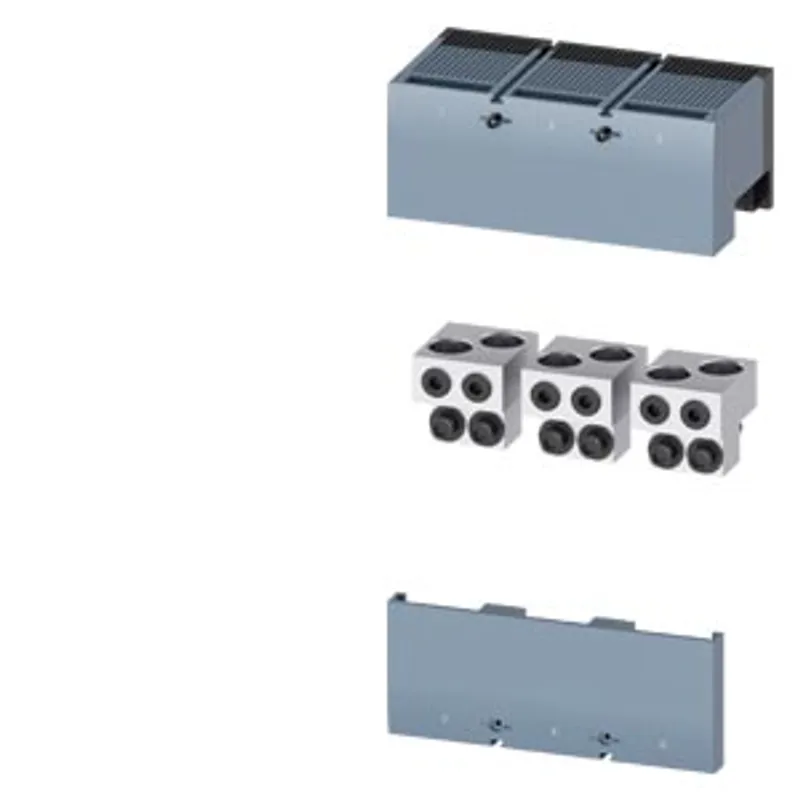

Siemens 3VA9673-0JJ24
Circular conduc. terminal TA4.1 2 x 400 kcmil…750 kcmil for 2 cables; 3 units accessory for: 3VA55
- MPN
- 3VA9673-0JJ24
- Category
- Accessories and Spare Parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9673-0JJ24?
circular conduc. terminal TA4.1 2 x 400 kcmil…750 kcmil for 2 cables; 3 units accessory for: 3VA55; 3VA65/3VA66
Specifications
Model
| product brand name | SENTRON |
| product designation | Circular conductor terminal, 2 cables, external, 3 units |
| design of the product | Connection method |
| accessories | Wire connector |
General technical data
| designation / of the terminal | TA4.1 |
| type of electrical connection / with control wire tap | No |
Mechanical Design
| Net Weight | 2.319 kg |
Connections according IEC
| connectable conductor cross-section — for copper cable / stranded / minimum | 240 mm² |
| connectable conductor cross-section — for copper cable / stranded / maximum | 300 mm² |
| stripped length | 28.5 mm |
| tightening torque / when using copper cables — stranded | 240 - 300 mm²: 42.4 Nm |
| tightening torque / when using copper cables — finely stranded / with core end processing | 240 mm²: 42.4 Nm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 90 °C |
| stripped length | 1.12 in |
| connectable conductor cross-section — for copper cable / stranded / minimum | 400 kcmil |
| connectable conductor cross-section — for copper cable / stranded / maximum | 750 kcmil |
| connectable conductor cross-section — for copper cable / finely stranded / minimum | 500 kcmil |
| connectable conductor cross-section — for copper cable / finely stranded / maximum | 500 kcmil |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 400 kcmil |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 750 kcmil |
| tightening torque / when using copper cables — stranded | 400-750 kcmil: 375.0 lb-in |
| tightening torque / when using copper cables — finely stranded | 500 kcmil: 375.0 lb-in |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3VA9673-0JJ24: frequently asked questions
When can 3VA9673-0JJ24 be shipped?
3VA9673-0JJ24 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3VA9673-0JJ24 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3VA9673-0JJ24 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3VA9673-0JJ24, subject to availability and destination.
