Siemens 3VA9573-0JG23
Circular conduc. terminal TA3.1 2 x 4/0…600 kcmil for 2 cables with auxiliary conductor voltage tap 3 units…
- MPN
- 3VA9573-0JG23
- Category
- Accessories and Spare Parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

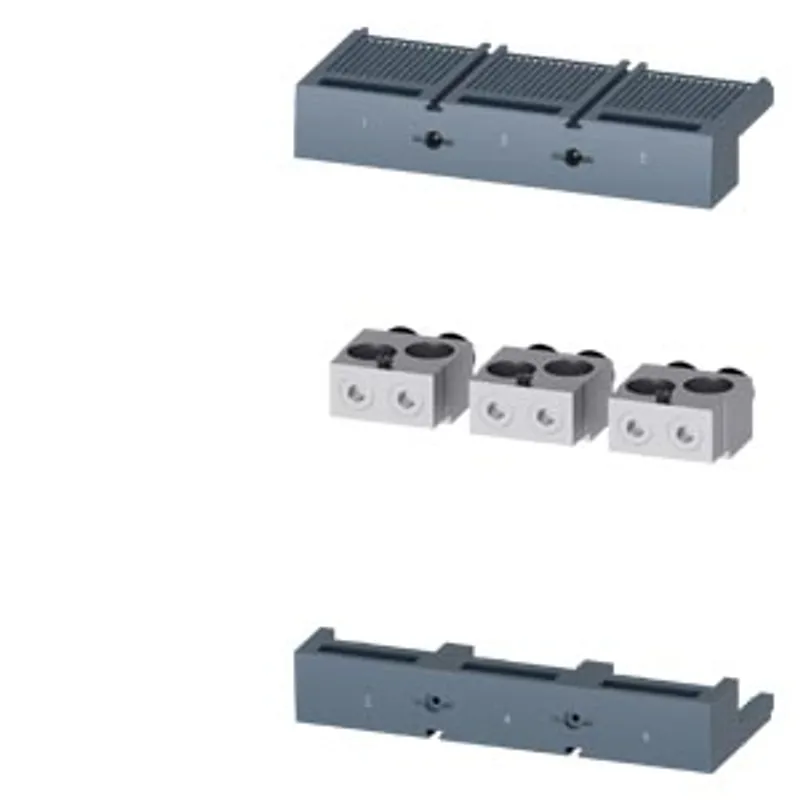

What is the Siemens 3VA9573-0JG23?
circular conduc. terminal TA3.1 2 x 4/0…600 kcmil for 2 cables with auxiliary conductor voltage tap 3 units accessory for: 3VA55; 3VA65
Specifications
Model
| product brand name | SENTRON |
| product designation | Circular conductor terminal, internal, 2 cables, 4 units |
| design of the product | Connection method |
| accessories | Wire connector |
General technical data
| designation / of the terminal | TA3.1 |
| type of electrical connection / with control wire tap | Yes |
Mechanical Design
| Net Weight | 1.193 kg |
Connections according IEC
| connectable conductor cross-section — for copper cable / stranded / minimum | 120 mm² |
| connectable conductor cross-section — for copper cable / stranded / maximum | 300 mm² |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 120 mm² |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 300 mm² |
| stripped length | 26 mm |
| tightening torque / when using copper cables — stranded | 120 - 300 mm²: 42.2 Nm |
| tightening torque / when using copper cables — finely stranded | 185 mm²: 42.2Nm |
| tightening torque / when using copper cables — finely stranded / with core end processing | 120 - 185 mm²: 42.4 Nm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
| stripped length | 1.02 in |
| connectable conductor cross-section — for copper cable / stranded / minimum | 4/0 AWG |
| connectable conductor cross-section — for copper cable / stranded / maximum | 600 kcmil |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 4/0 AWG |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 600 kcmil |
| tightening torque / when using copper cables — stranded | 4/0 - 600 kcmil: 375 lb-in |
