Siemens 3VA9387-0TB10

Communications module COM060 accessory for: 3VA23 - 3VA26

MPN: 3VA9387-0TB10
Category: Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3VA9387-0TB10?

communications module COM060 accessory for: 3VA23 - 3VA26

Specifications

Model

product brand name	SENTRON
product designation	COM060 communication module
accessories	Communication and measurement function

General technical data

suitability for operation	3VA2 400/630 and COM800
mounting position	Right switch pocket
degree of pollution	3
overvoltage category	I
operating resource protection class	III (according to IEC 61558)
protection class IP	IP20 according to IEC60529

Current

product function — electronic tripping unit power supply	Yes
product function — detection of switch position: On, Off, Tripped	Yes
product function — communication with function module	Yes
product function — communication with residual current equipment	Yes
product function — data exchange with the electronic tripping unit	Yes
number of interfaces / of the circuit breaker communication system	1
length / of the supplied connecting cable / for circuit breaker communication system	0.15 m
type of electrical connection / of the circuit breaker communication interface	Spur line via T feeder
total length / of the circuit breaker communication system	20 m
power loss [W] / rated value	2.4 W
consumed current / maximum	0.1 A

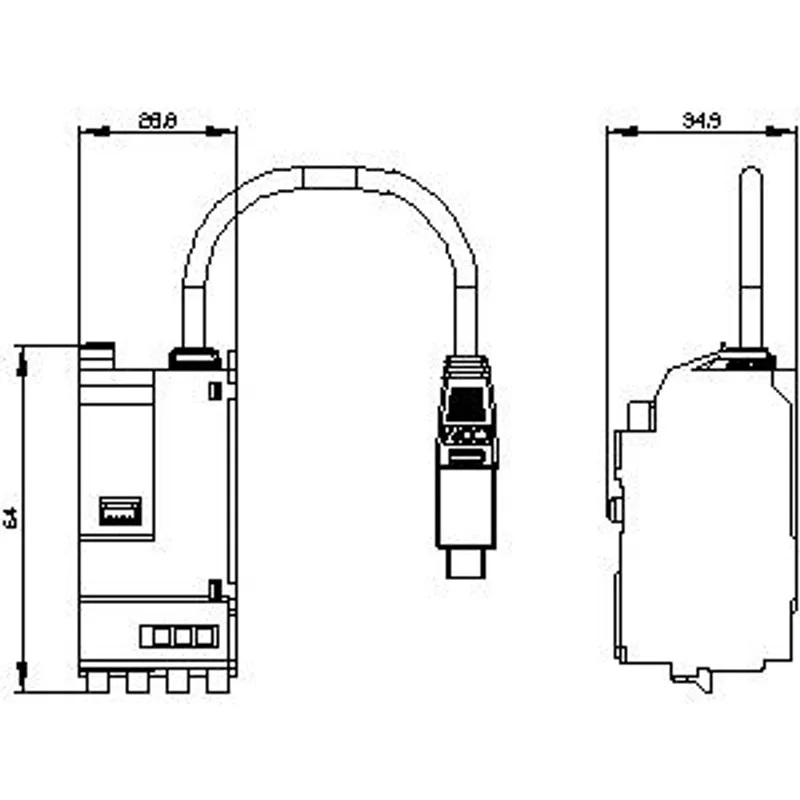

Mechanical Design

height	63 mm
width	29 mm
number of slots	4
depth	33 mm
Net Weight	127 g

Environmental conditions

ambient temperature / during operation — minimum	-25 °C
ambient temperature / during operation — maximum	70 °C
ambient temperature / during transport — minimum	-40 °C
ambient temperature / during transport — maximum	80 °C
ambient temperature / during storage — minimum	-40 °C
ambient temperature / during storage — maximum	80 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3VA9387-0TB10PDF
