Siemens 3VA9323-0RL30

Residual current device RCD820 advanced RCD type A loadside mounted rated resid. current 0.03...30A at 50/60…

MPN: 3VA9323-0RL30
Category: Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

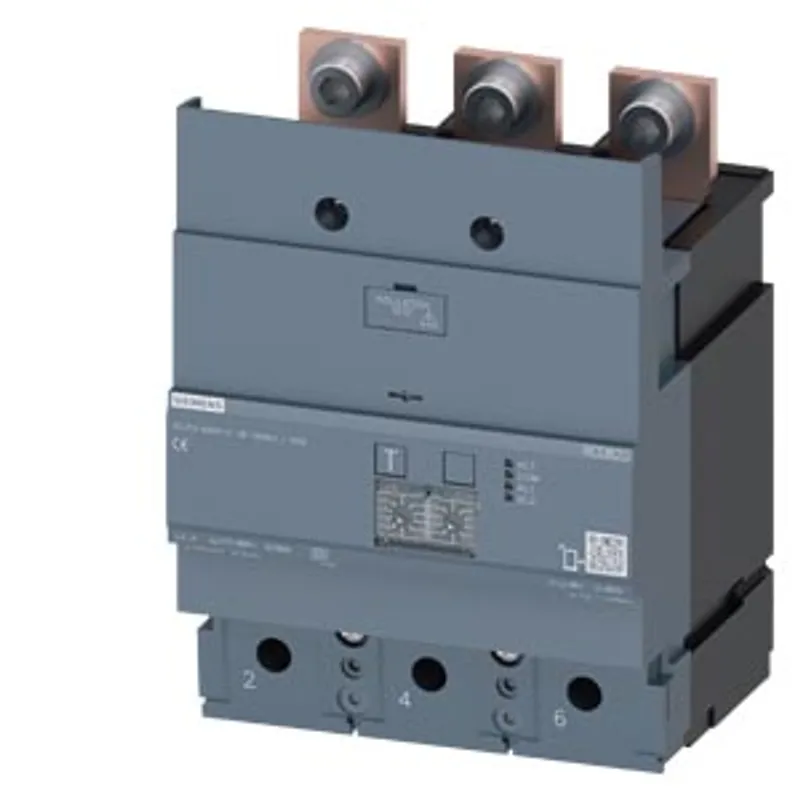

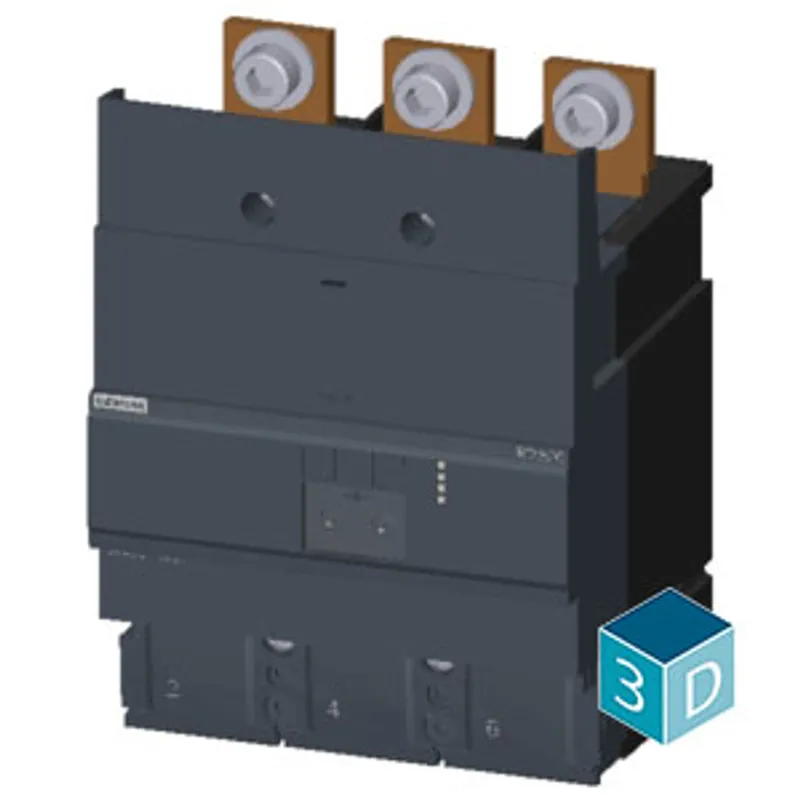

What is the Siemens 3VA9323-0RL30?

residual current device RCD820 advanced RCD type A loadside mounted rated resid. current 0.03...30A at 50/60 Hz adjustable tv 0...10000 ms 3-pole In=400 A Ue=100-690 V accessory for: 3VA2

Specifications

Model

product brand name	SENTRON
product designation	Residual current protection device type A
accessories	Residual current protection module type A

General technical data

fastening method	screw fixing
number of poles	3
protection class IP / on the front	IP40

Voltage

supply voltage / at AC — minimum	127 V
supply voltage / at AC — maximum	690 V

Current

operational current / at AC / rated value	400 A
response value / of the residual current	0.03;0.05;0.1;0.3;0.5;1;3;5;10;30
product function / communication with residual current equipment	Yes
product function / integrated / alarm management	Yes
product function / integrated / alarm management	Pre-alarm indication 30% and 60%
product function / remote-controlled tripping	Yes
product feature / sealable	Yes
product function / selectable tripping characteristic	No
product function / selectable RCD or monitoring mode	Yes
position / of the infeed / on the RCD component	Top or bottom
type of electrical connection / for main current circuit	busbar connection
set values / of the limit value of not tripping time	0;0.06;0.15;0.3;0.5;1.0;2.0;3.0;5.0;10.0
type of trip indicator / electrical	Yes
type of trip indicator / communication	Yes
power loss [W] / maximum	75 W
operating frequency / rated value / maximum	60 Hz
frequency / of fault current — minimum	50 Hz
frequency / of fault current — maximum	60 Hz

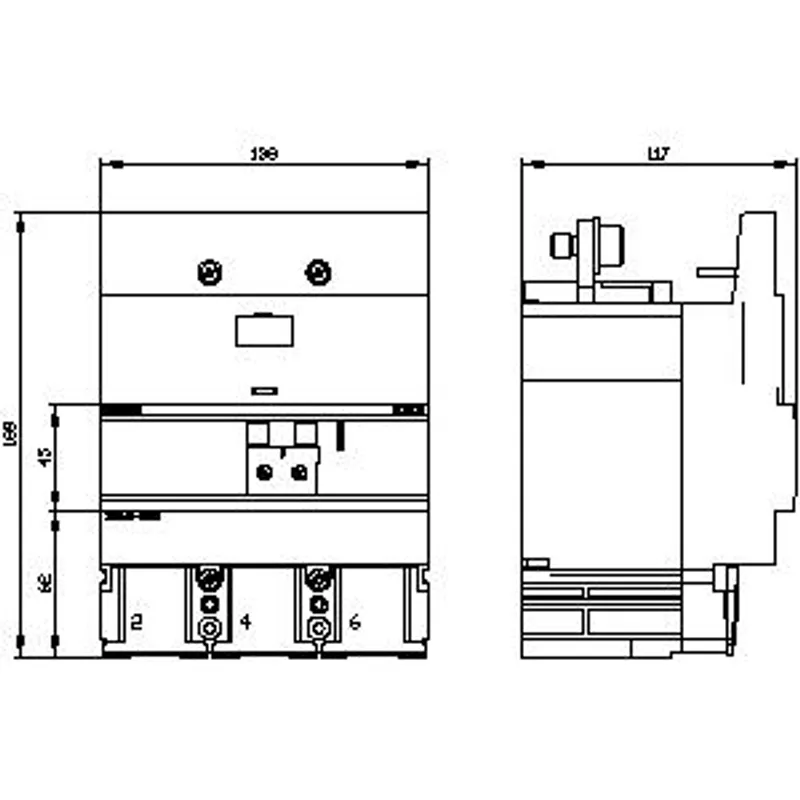

Mechanical Design

height	150 mm
width	138 mm
depth	110 mm
net weight	2 813 g
Net Weight	2.813 kg

Connetctions according UL

ambient temperature / during operation — minimum	-25 °C
ambient temperature / during operation — maximum	70 °C
ambient temperature / during storage — minimum	-40 °C
ambient temperature / during storage — maximum	80 °C
