Siemens 3VA9304-0JF60

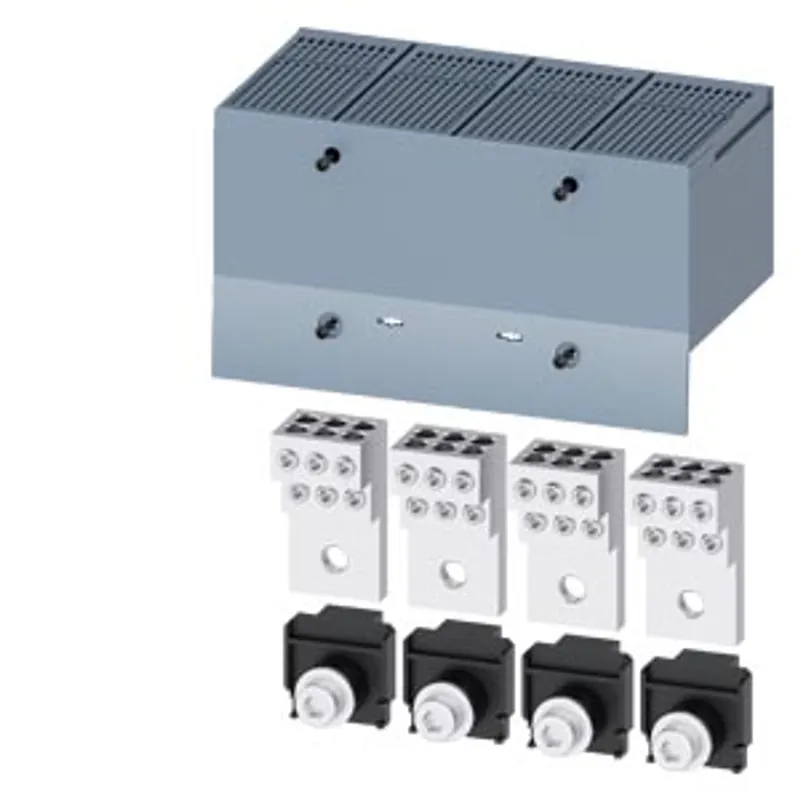

Circular conduc. terminal TA2.7 6 x 1.5…35 mm² for 6 cables; 4 units accessory for: 3VA13/14; 3VA23/24

MPN: 3VA9304-0JF60
Category: Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3VA9304-0JF60?

circular conduc. terminal TA2.7 6 x 1.5…35 mm² for 6 cables; 4 units accessory for: 3VA13/14; 3VA23/24

Specifications

Model

product brand name	SENTRON
product designation	Circular conductor terminal 6 cables 4 units
design of the product	Connection method
accessories	Wire connector

General technical data

designation / of the terminal	TA2.7
type of electrical connection / with control wire tap	No

Mechanical Design

Net Weight

814 g

Connections according IEC

connectable conductor cross-section — for copper cable / stranded / minimum	1.5 mm²
connectable conductor cross-section — for copper cable / stranded / maximum	35 mm²
stripped length	18 / 34,5 mm
tightening torque / when using copper cables — solid	1.5 mm²: 2.8 Nm, 2.5-10 mm²: 6.2 Nm, 16 mm²: 7 Nm
tightening torque / when using copper cables — stranded	1.5 mm²: 2.8 Nm; 2.5 - 10 mm²: 6.2 Nm; 16 - 35 mm²: 7 Nm
tightening torque / when using copper cables — finely stranded	1.5 mm²: 2.8 Nm, 2.5 - 10 mm²: 6.2 Nm, 16 - 25 mm²: 7 Nm
tightening torque / when using copper cables — finely stranded / with core end processing	1.5 mm²: 2.8 Nm, 2.5 - 10 mm²: 6.2 Nm, 16 - 25 mm²: 7 Nm

Connetctions according UL

permissible temperature / of connectable conductor / according to UL 486A-486B	75 °C
stripped length	0.7 / 1.35 in
connectable conductor cross-section — for copper cable / solid / minimum	14 AWG
connectable conductor cross-section — for copper cable / solid / maximum	10 AWG
connectable conductor cross-section — for copper cable / stranded / minimum	14 AWG
connectable conductor cross-section — for copper cable / stranded / maximum	2 AWG
connectable conductor cross-section — for aluminum cable / stranded / minimum	8 AWG
connectable conductor cross-section — for aluminum cable / stranded / maximum	2 AWG
tightening torque / when using copper cables — solid	14-10 AWG: 55 lb-in
tightening torque / when using copper cables — stranded	14 - 8 AWG: 55 lb-in; 6 - 2 AWG: 62 lb-in
