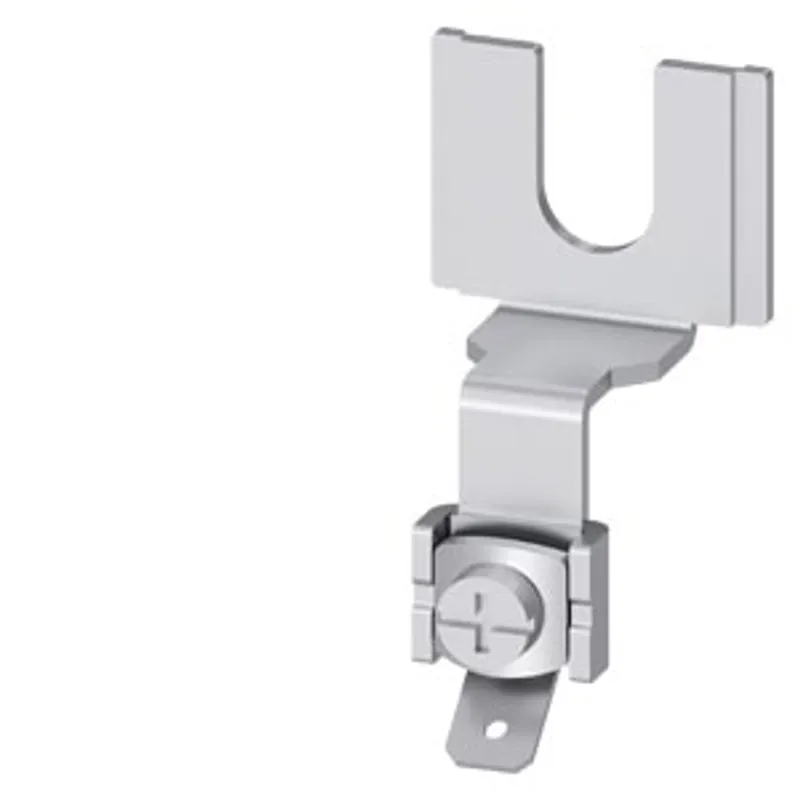

Siemens 3VA9280-0WC00

Control wire tap for flat busbar connection accessory for: 3VA12 plug-in/withdrawable 3VA20/21/22…

MPN: 3VA9280-0WC00
Category: Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3VA9280-0WC00?

control wire tap for flat busbar connection accessory for: 3VA12 plug-in/withdrawable 3VA20/21/22 plug-in/withdraw.

Specifications

Model

product brand name	SENTRON
product designation	control wire tap
design of the product	Connection method
accessories	Control wire tap

General technical data

designation / of the terminal	CW-tap for Busbar
type of electrical connection / with control wire tap	Yes

Mechanical Design

Net Weight

15 g

Connections according IEC

stripped length	5-8 mm
tightening torque / when using copper cables — solid	0.75 - 2.5 mm²: 2 Nm
tightening torque / when using copper cables — finely stranded	0.75 - 2.5 mm²: 2 Nm

Connetctions according UL

permissible temperature / of connectable conductor / according to UL 486A-486B	75 °C
stripped length	0.2-0-3 in
connectable conductor cross-section — for copper cable / solid / minimum	18 AWG
connectable conductor cross-section — for copper cable / solid / maximum	14 AWG
connectable conductor cross-section — for copper cable / stranded / minimum	18 AWG
connectable conductor cross-section — for copper cable / stranded / maximum	14 AWG
tightening torque / when using copper cables — solid	18 - 14 AWG: 17.7 lb-in
tightening torque / when using copper cables — stranded	'18 - 14 AWG: 17,7 ib-in
